Stanton

Precision Engineered DJ Cartridge for Scratching, Mixing and DVS

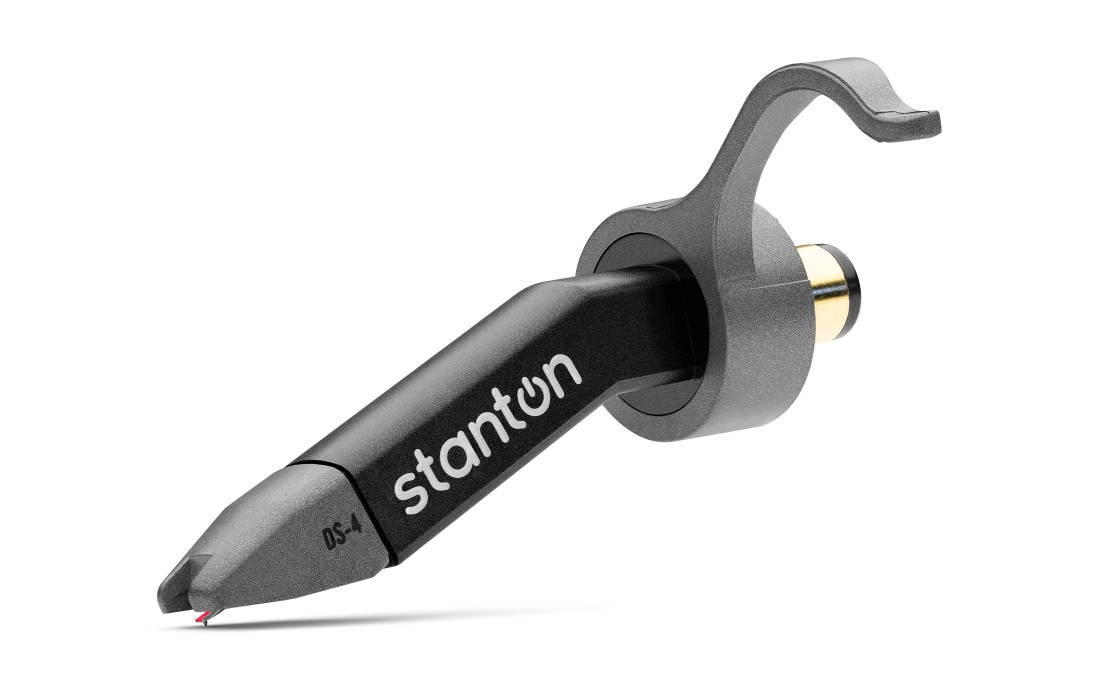

The Stanton DS4 is an extremely durable and versatile cartridge that works perfectly for any style of DJing. With a fine circular diamond stylus, the DS4 sticks to the groove while scratching and back-cueing with minimum record wear. The quality construction of the DS4 provides crystal-clear fidelity and impressive frequency response for all styles of music as well as optimum signal strength for DVS users.

Features
• Precision-engineered fine circular diamond stylus tip
• High output and enhanced tracking, ideal for scratching, mixing, and DVS
• Sleek, easy-to-handle design
• Enhanced fidelity with full-range frequency response from 20-20,000 Hz
• Gold-plated tonearm connections for optimum performance

Technical Specifications
Frequency response: 20 to 22,000Hz
Output: 6mV
Channel separation nominal: 28dB
DC resistance: 430 ohms/ch
Inductance: 400mH/ch
Weight: 18.0g
Channel balance: Within 1.5dB
Tracking force: 3g to 6g
Recommended load: 47 kΩ 200pf
Stylus tip: Fine circular diamond
Application: High versatility and skip resistance
