Black Lion Audio Eighteen Rackmount Channel Strip with Cinemag Transformer
Additional Photos:

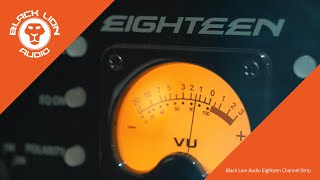

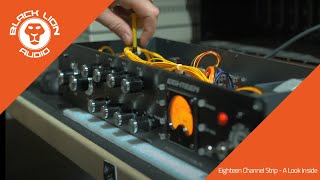

Product Videos :
Eighteen's preamplifier circuit isn't just another clone, but an original design built to pay proper tribute to some of the most classic designs ever made. The Eighteen starts with a Cinemag input transformer, but that's far from where the magic stops. In order to get the absolute perfect sound we were looking to achieve with Eighteen meant a bit more work under the hood. This is where Black Lion's new BLA1831 custom, discrete op-amp comes into play. Through an extensive period of component matching, they were able to create a custom op-amp that matched the vibe we were aiming for, while still matching a noise floor that is akin to modern equipment. The preamplifier also features polarity inverse, 48V phantom power, an 80Hz high-pass filter, and a 10kHz low-pass filter.
Features
• Vintage style preamp section with CineMag input and output transformers and custom discrete op-amps
• CineMag inductor-based 2-band passive EQ lets you boost and cut frequencies simultaneously to add focus on the low end and presence at the top end
• Output control for driving the preamp into rich harmonic saturation without signal clipping
• Additional frequency control with 80HZ highpass and 10kHz lowpass filters
• Switchable mic/line inputs, polarity flip, and 48V phantom power for condenser mics, active ribbon mics, and mic activators
• Attractive backlit VU meter on the front panel
• Internal power supply with AC input and voltage selector
Specifications
Preamp Type: Solid State Induction EQ Preamp
Number of Channels: Single channel
Phantom Power: Yes
Polarity Switch: Yes
EQ: 2-band EQ, Lowpass Shelving, 80Hz Highpass, 10kHz Lowpass
Analog Inputs: 1 x XLR
Analog Outputs: 1 x XLR
Rack Spaces: 2U
Power Source: Standard IEC AC cable
Height: 9" x 15" x 22" (22.86 x 38.1 x 55.88 cm)
Weight: 14.5 lb (6.6 kg)
