ESI

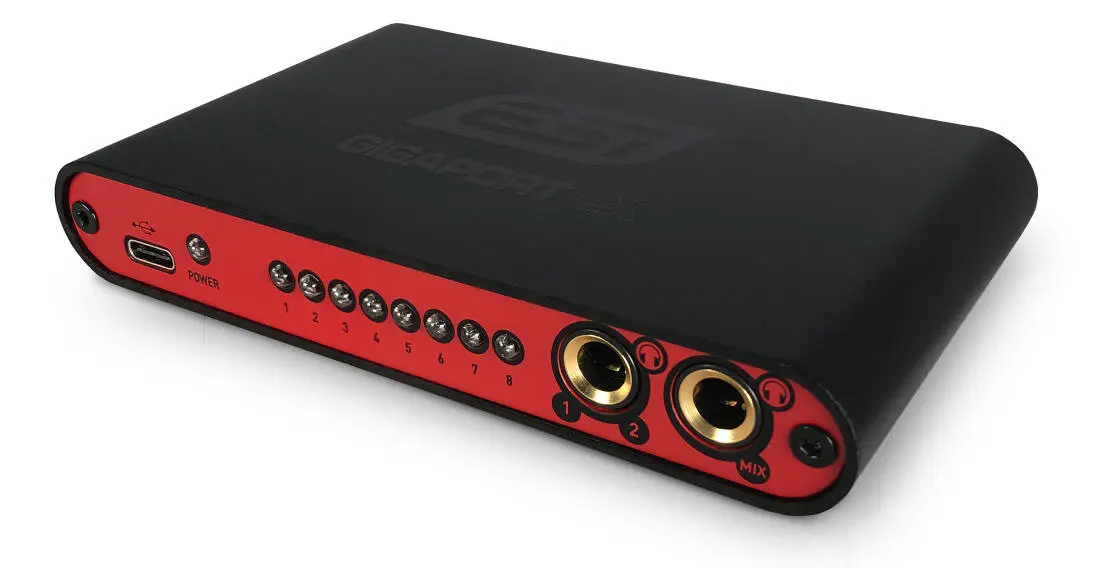

GIGAPORT eX 24-bit / 192 kHz 8 Output USB Audio Interface
Additional Photos:
This upgrade of the GIGAPORT HD+ provides ASIO 2.0 drivers for professional audio mixing and playback under Windows 7, Windows 8.1 and Windows 10. The hardware is also CoreAudio compatible and natively works under OS X / macOS even without the installation of a special driver.
This makes GIGAPORT eX perfect for digital DJs on the road working with notebook computers. Simply use your favorite DJ software and the eight outputs as up to 4 different stereo channels, enabling you to mix, cue and add effects! Monitor and pre-listen to your signals via the two built-in headphone outputs. GIGAPORT eX of course also works on your desktop computer and is compatible with all important professional audio DAW software applications. The hardware also works with consumer programs such as DVD playback software.
Features
• USB 3.1 Audio Interface with USB-C connector (different connection cables included)
• USB 2.0 compatible
• 24-bit / 192 kHz D/A converter with 114dB dynamic range (A-weighted), available on all output channels
• 8 Independent output channels with -10dBV RCA connectors
• 2 Independent stereo headphone outputs: 1st output sends l out mixed signal of all playback channels, 2nd output l sends out different signal from playback channel 1/2
• Compatible with Windows 7 / 8.1 / 10 and OS X / macOS
• Supports ASIO 2.0, WDM, MME with our EWDM drivers as well as CoreAudio
• 100% Class compliant
• Works with OS X / mac OS (10.9 and above) with native CoreAudio support (32-bit and 64-bit)
• EWDM driver for Windows 7 / 8 / 8.1 / 10 with ASIO 2.0, MME, WDM and DirectSound (32-bit and 64-bit)
• DirectWIRE Loopback support under OS X / mac OS / Windows
• DirectWIRE Output Channels support under Windows for dynamic output routing
• Compact and portable design
• Approx dimensions: 12 cm x 7 cm x 2 cm
Bundled Software*:
inTone 2 ESI Edition by Audified - a powerful jamming tool to produce mixes of multiple audio signals and instruments, play files, change tracks, prepare streams for podcasts and recordings
Steinberg's Cubasis LE mobile multitouch sequencer
*current information at the time of writing
