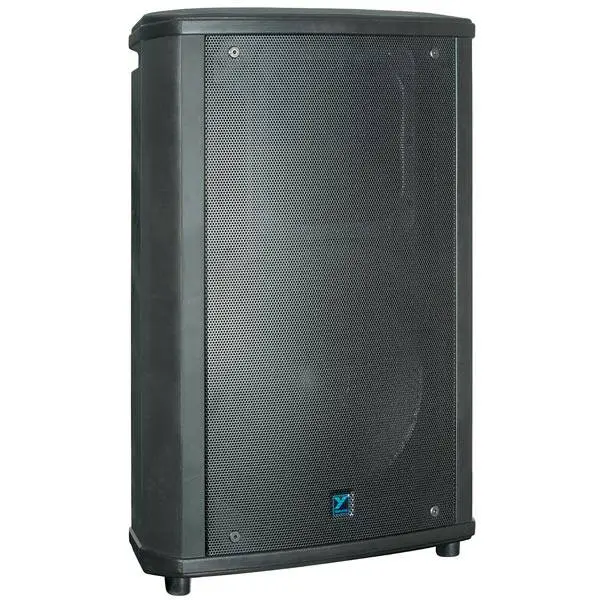

Yorkville Sound NX Series Passive Loudspeaker - 12 inch Woofer - 300 Watts NX Series Passive Loudspeaker - 12 inch Woofer - 300 Watts
Additional Photos:
Great Additions
Description
The rotatable 80 x 50 custom ABS waveguide horn used in the NX300 allows this loudspeaker to be flown either horizontally or vertically, or close to walls and ceilings making an ideal fill cabinet for installations. Integrated flypoints in the NX300 ensure this injection-molded loudspeaker can be easily adapted for installation without modification to the cabinet. Rugged bar handles and integrated standmount adaptor ensure maximum mobility and easy set-up in any live PA application.
Features:
• 600 Watt Full Range Loudspeaker (300 Watts Program)
• Max SPL 122dB Peak (125dB Continuous)
• Ultra-light injection molded Polypropylene construction
• Dual purpose full range and wedge monitor format enclosure
• Ultra-clear reproduction throughout bandwidth
• Ultra-high efficiency performance requires less power for more output
• High quality 1.5-inch (1-inch throat) High Frequency driver
• Rotatable 80 x 50 horn
• Integrated flypoints for flyware
• Tough, full length metal grille
• Recessed Input panels
• Dual bulb CTL High Frequency Protection
• Made in Canada
Specifications:
• System Type: 2-Way
• Active or Passive: Passive
• Program Power (Watts): 300 Watts (600 Watts Peak)
• Biampable: No
• Nominal Impedance (Ohms): 8
• Sensitivity (dB @1Watt/1m): 97
• Max SPL (dB): 125dB Peak (122dB Continuous)
• Frequency Response (Hz +/- 3dB): 60 - 18k
• Crossover Frequency (Hz): 1500
• Driver Configuration: 15 inch / 1.5 inch
• HF Driver(s): 1 inch Throat, Neo Magnet, 1.5 inch Aluminum Diaphragm
• HF Program Power (Watts): 25
• HF Impedance (Ohms): 8
• HF Dispersion ( DEG H x DEG V): 80 x 50 Rotatable
• HF Protection: Dual Bulb CTL
• LF Driver(s): 15 inch Ceramic Magnet, 2 inch voicecoil
• LF Impedance (Ohms): 8
• Inputs - 1/4 IN Jacks: 2
• Inputs - Speakon 4-pin: 2
• Feet: Yes
• Flying Hardware: 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
• Optional Flying Hardware: NX Flyware / Eyebolts
• Bar Handles: 1 (Side)
• Pole Mount Adapter (1 3/8 IN -3.5cm): Yes
• Enclosure Materials: Injection molded Polypropylene
• Grille: Perforated Metal
• Other Details: Side recesses for ease of lifting
• Dimensions (DWH xbackW COM inches): 15 x 22 x 32 x 9.5
• Dimensions (DWH xbackW COM cm): 38 x 56 x 84 x 24
• Weight (lbs/kg): 49.8 / 22.6
