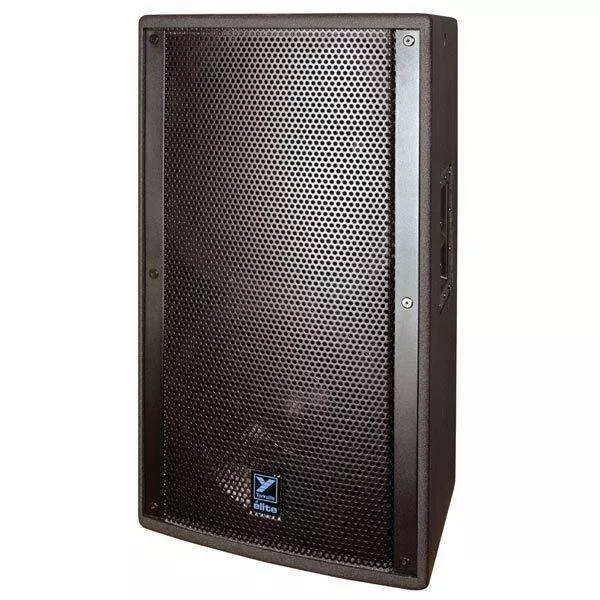

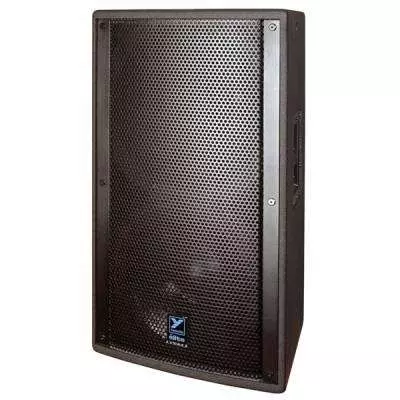

Yorkville Sound Unity Series Passive Loudspeaker - 15 inch / Unity Horn - 1000 Watts

Departments > Pro Audio & Recording > PA Speaker Cabinets > Speakers - Full Range-Passive > Yorkville Sound > Unity Series Passive Loudspeaker - 15 inch / Unity Horn - 1000 Watts
Add to Wish List
SKU: # 187733
Model: #

U15

Your Price: $1,325.00 CDN

Online

Engineered for the serious pro audio user, the U15 is among the most advanced, most versatile and most efficient high-powered portable P.A. boxes available on the market today. The U15 is a radical loudspeaker cabinet design utilizing the patented Unity Summation Aperture Horn Technology invented by loudspeaker designer Tom Danley.

The U15 provides remarkably even high/mid frequency distribution from its 60 x 60 horn assembly. The combination of that conical, constant directivity horn, a 15-inch high power woofer and our unending attention to details, right down to the ideal trapezoidal cabinet design, has yielded an extremely versatile speaker. The U15's Unity horn combines a single 1-inch-throat (1.75" diaphragm) compression driver with three 5-inch ceramic magnet midrange drivers firing through time-aligned slots in the horn-wall. This seamlessly blends the mid and high frequencies while providing exceptional power capacity and clarity from 300Hz to 20kHz.

The U15 comes with a high-definition 3-way passive crossover featuring our exclusive PTC non-interruptive horn protection. However it can be easily bi-amplified by way of a switch on the rear jackplate, and using the optional UP15 Unity processor, designed specifically to optimize the sonic characteristics of the U15. The UP15 has been developed to ensure trouble free, "plug-and-play" operation and further offers a subwoofer output.

The compact and ultra efficient U15 is a trapezoidal shaped, 800 watt cabinet with a carefully chosen crossover point to seamlessly match the directivity characteristics of the conical horn to the neodymium woofer. With such a compact footprint and weight, the U15 easily finds its home as a FOH speaker, drum monitor, side fill, front or down fill or virtually any situation where a professional quality sound reinforcement system is required. The unparalleled sonic clarity and smooth frequency response also makes it great for music playback. With pre-recorded music the U15 has the hi-fidelity to put it on par with some of the best studio reference monitors. But unlike traditional studio reference monitors, the U15 is capable if putting out a very high-efficiency 1000 watts at 4ohms. The trapezoidal shape was designed with multi-box, tight pack arraying in mind.

Looking at a polar plot for a 3 box, tight-pack array one would notice how extremely well behaved it is. Furthermore, due to the nature of the conical horn, the polar pattern remains quite constant regardless of any vertical, or off-axis rotation put upon it. It acts the same on all vertical axis, making it ideal for use upright or on its' side, without the need to ever rotate the horn.

Features:
• 2000 Watt 3-Way Full Range Loudspeaker (1000 Watts Program)
• Max SPL 135dB Peak (129dB Continuous)
• Unique 60 x 60 Unity horn assembly combines mid and high frequency drivers on conical horn.
• All four component drivers mounted in a Unity horn are mechanically time-aligned to measure and act like a single point source.
• No self-interference between individual loudspeaker components.
• Nine rigging points and internal standmount adapter allow for all possible mounting and flying configurations.
• 15mm 11-ply birch cabinet construction.
• U15 - Black Ozite (Carpet) Finish
• U15B - Black Ultrathane (Painted) Finish
• Made in Canada

Specifications:
• System Type: Three-Way
• Active or Passive: Passive
• Program Power (Watts): 1000 Watts (2000 Watts Peak)
• Biampable: Yes
• Nominal Impedance (Ohms): 4
• Sensitivity (dB @1Watt/1m): 98
• Max SPL (dB): 131dB Peak (128dB Continuous)
• Frequency Response (Hz +/- 3dB): 50 - 20k
• Crossover Frequency (Hz): 300 / 1250
• Driver Configuration: 15 inch / 3x5 inch / 1.75 inch
• HF Driver(s): 1.75 inch polyester
• HF Impedance (Ohms): 8
• HF Horn: Conical Unity horn (1 inch throat)
• HF Dispersion ( DEG H x DEG V): 60 x 60
• HF Protection: PTC
• MF Driver(s): 3 x 5 inch ceramic 1 inch voicecoil
• MF Horn: Conical Unity horn
• MF Dispersion ( DEG H x DEG V): 60 x 60
• LF Driver(s): 15-inch w/ 3-inch voicecoil
• LF Impedance (Ohms): 4
• Inputs - 1/4 IN Jacks: 2
• Inputs - Speakon 4-pin: 2
• Feet: Yes
• Flying Hardware: 3/8inch x 9 (all corners)
• Bar Handles: 2 Side
• Pole Mount Adapter (1 3/8 IN -3.5cm): Yes
• Enclosure Materials: 15mm 11-ply Birch
• Grille: Perforated Metal
• Covering / Finish: Black Ozite (Carpet)
• Optional Covering / Finishes: Black Ultrathane Paint (U15B)
• Processor (optional): UP15
• Dimensions (DWH xbackW COM inches): 16.25 x 19.25 x 34 x 9.5
• Dimensions (DWH xbackW COM cm): 42 x 49 x 87 x 24
• Weight (lbs/kg): 80.7 / 36.6

http://yorkville.com/loudspeakers/elite/product/u15/

solid0 of 0 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI own it
Closest StoreMarkham, Ontario
There's not a lot of passive, three-way, 15" speaker enclosures on the market. I bought a pair of these initially, a month ago without the optional processor that's designed to go with it. I didn't want yet another piece of equipment to have to plug in and carry, when gigging, if I didn't absolutely need it. I lug enough stuff as it is. At first, I liked them. They sounded good, nice mids/highs. Not harsh. But as the honeymoon wore off, I personally found that the bottom end was honky. Not particularly "warm". The kick drum for instance had too much "plunk" and not enough "UMPH". Loud as hell, though. E.q.ing didn't really solve the issue. The warmth just wasn't there. I did a couple of gigs with them and honestly wasn't really that impressed with the overall sound. So, I bought the UP15 that goes with it, in hopes that it would solve the problem. Plugged it in and "BOOM"!! It was a different speaker. There was that really nice, round bottom that I'd been looking for. They sound great. They're heavy pigs and a drag to carry alone, especially if there's stairs to contend with. A cart or casters are in order. But they're solid, like all Yorkville stuff and now I can use with them with confidence that I'm sounding the way I want to sound. I did my first gig last night with the processor hooked up and it was a different ballgame. I'd like to try them now, with a sub and utilize this system to it's fullest potential. Not keen on lugging a sub (or two) around though.
Posted by jamie williams on Mar 19, 2017
Was this review helpful?    flag review

Very impressed0 of 0 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI own it
Closest StoreMississauga, Ontario
true hi fidelity bi amping brings it to life
Posted by anonymous on Nov 8, 2015
Was this review helpful?    flag review
