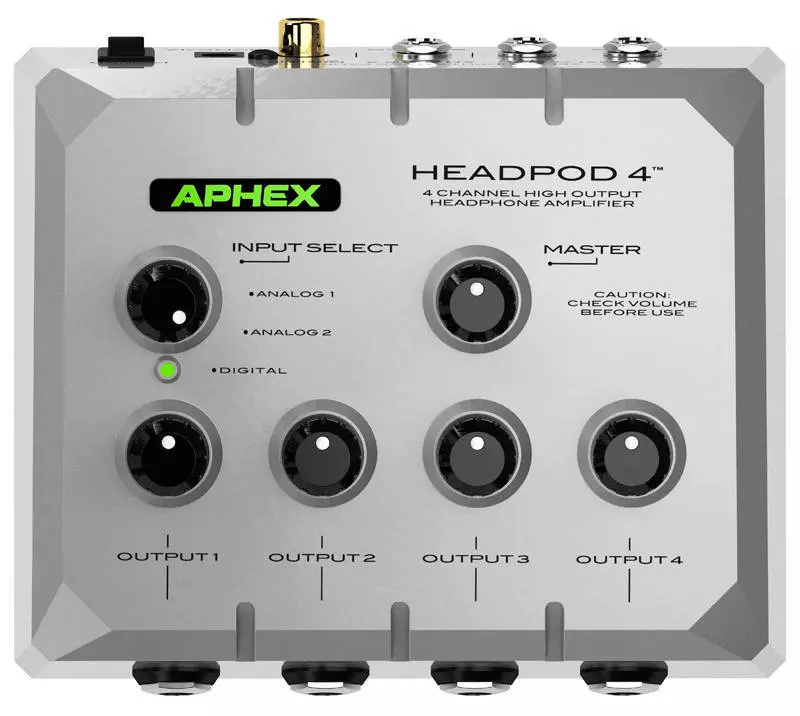

4 Channel High Output Headphone Amplifier
Additional Photos:
If the headphone output on your existing gear just isnt loud and clear enough, or you need multiple headphone outputs with independent level controls, the HeadPod 4 delivers.
But the HeadPod 4 gives you more than just volume. Its designed to deliver clean, clear, undistorted sound at any level ideal for long periods of listening without fatigue.

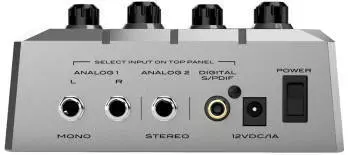

The input signal can be fed from separate balanced connections, a single extension from your existing headphone output, or digitally via S/PDIF. Since it places no load on your existing headphone output, your audio will actually sound better through the HeadPod 4.

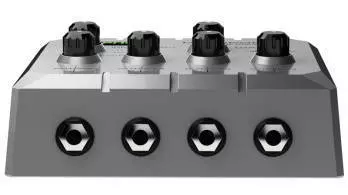

Four fully independent amplifiers ensure maximum efficiency with minimum crosstalk and distortion, even when all four outputs have completely different sets of headphones connected. Housed in a rugged, metal chassis, the HeadPod 4 is ready for any environment from the desktop to the rehearsal room, with its optional mic stand bracket.
Whether youre a musician, audio engineer, broadcaster, or just tired of old, tired headphone outputs, the HeadPod 4 is for you.
Features:
- Professional Monitoring for ALL headphone types
- Individual volume controls
- High headroom (no clipping at high headphone levels)
- Durable metal jacks
- Ultra low distortion & wide frequency response
- Master volume to match source level
- Ultra low crosstalk
- Works from any analog source
- S/PDIF Input
- Top panel input selection
- Listen longer with less fatigue
- Overcomes limitations of typical headphone outputs
- Four independent stereo power amplifiers
- Small size travels easily
Specifications:
Input Z: Bal: 20kW / Unbal: 10kW
Output Z: 10W
Max Input Level: +24dBu
Frequency Response: 10Hz 120kHz +/- 1 dB
SNR (Typical): 100 dB
Crosstalk dB: -80 @ 1kHz, -70 @ 10kHz
Max Gain: 35 dB
THD+N, 1kHz: <.001%, 100mW into 25W
SMPTE IMD: <.001%, 100mW into 25W
Weight: 16 oz. (0.45kg)
Dimensions: 5.5″ W x 1.9″ H x 4.5″ D / 13.8cm W x 4.8cm H x 11.4cm D
External Power:
- 12 VDC, 1000mA
- 5.5mm x 2.1mm Power Jack
- Positive Tip
