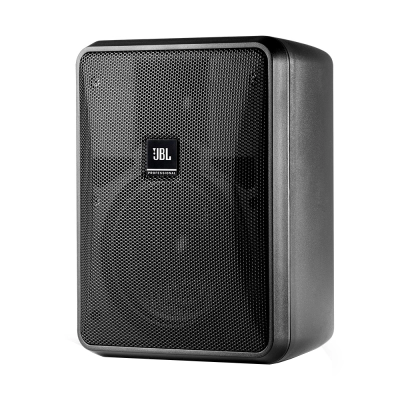

JBL Control 25-1 Compact Indoor/Outdoor Speaker
Additional Photos:
Features
• 5-1/4" woofer with woven fibreglass cone
• 3/4" PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100° x 100° coverage
• 100 Watt power handling (200 Watt program) in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer
• High fidelity sound character with broad frequency response of 60 Hz 20 kHz
Specifications
Frequency Range (-10dB): 60 Hz to 20 kHz
Frequency Response (+3 dB): 85Hz - 17 kHz
Power Rating: 200 W Continuous Program (2 hrs) 100 W (400W peak), Continuous Pink Noise (2 hrs) 75 W (300W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage: 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL (1m): 110 dB ave. Continuous Pink Noise (116 dB peak)
Sensitivity: 90 dB, 1W/1m (ave. 100 Hz 10 kHz)
Coverage Angle: 100° x 100°
Directivity Factor (Q): 6.04 (averaged 1kHz 16kHz)
Directivity Index (DI): 7.6dB (averaged 1kHz 16kHz)
Impedance: 8 ohms (THRU setting)
Crossover Type: 2nd order low-pass, 3rd order high-pass
Transformer Taps: 70V: 30W, 15W, 7.5W, 3.7W 100V: 30W, 15W, 7.5W Insertion Loss 0.94 dB at any tap setting Thru Setting: 8Ω nominal
Recommended Protective High-Pass: 60 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings)
Dimensions: 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall™ wall-mount bracket
Net Weight (each): 3.4 kg (7.5 lbs)
Included Accessories: InvisiBall™ wall-mounting system), 6 x 100 mm hex key
