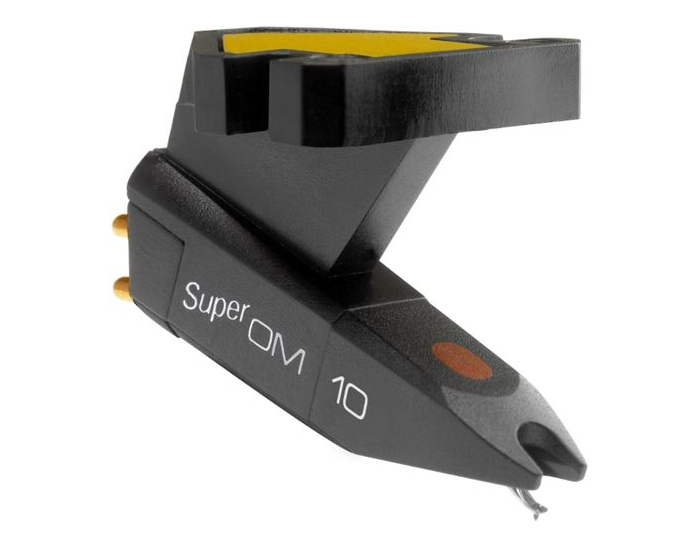

Ortofon Super OM 10 Cartridge

The Super OM cartridges have been designed on the basis of Ortofon's OM lightweight system with three major improvements: By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.

Additionally, a new technique was developed and applied: slit less than 1 mm dia. hollow pole pins, thus significantly reducing eddy current losses caused by magnetic hysteresis. This sophisticated technology extends the frequency range and improves phase linearity. Thirdly, OM Super cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity, and freedom from resonances.

All Super OM models have the same body, construction and magnetic circuitry. The only difference is the interchangeable stylus unit.

Specifications
Technical Data: OM Super 10
Output Voltage at 1000 Hz, 5cm/sec: > 4 mV
Channel Balance at 1 kHz: < 1.5 dB
Channel Separation at 1 kHz: > 22 dB
Frequency Response: 20-20,000Hz +3/-1 dB
Frequency Range: 20-24,000Hz
Stylus Type: Elliptical
Tracking Force Range: 1.25-1.75 g
Recommended Tracking Force: 1.5 g
Tracking Angle (Vertical): 20°
Internal Impedance, DC Resistance: 1 kOhm
Internal Inductance: 580 mH
Recommended Load Resistance: 47 kOhm
Recommended Load Capacitance: 200 - 500 pF
Cartridge Weight Including Weight Plate: 5 g
Cartridge Weight Without Weight Plate: 2.5 g
