Korg ARP 2600 M Semi-modular Analog Synthesizer Limited Edition w/Case and microKEY-37
Additional Photos:
The ARP 2600 M delivers an ample supply of oscillators, envelopes, a filter and amplifier - all of the building blocks of analog synthesis. But the ARP 2600 M goes even further, with a spring reverb tank and a pair of built-in monitor speakers. Also present is much of the versatility of a vintage modular system, including a ring modulation, lag and voltage processors, an envelope follower, audio preamp, a clock-able switch, noise source, a sample-and-hold module, signal inverters, an auxiliary mixer, and even a set of parallel-wired/multi jacks.
Added features and functionality
- Plug and play: Connect any class compliant MIDI controller such as a KORG microKeys, nanokeys or SQ-64 to one of the ARP 2600 M's USB ports (USB-A and USB-B) and automatically get full control of your instrument!
- Resized: The new size makes it easier to visualize your patch and also allows you to use shorter patch cables
- Two types of filters from two versions of the original ARP 2600（4012 type, 4072 type DIN MIDI IN added
- Pitch-bend, Modulation and Portamento ON/OFF can be controlled through MIDI CC messages (USB/DIN MIDI)
- Normalized voltage: The threshold of the trigger signal required to activate the ADSR through the S/H GATE JACK has become 5V, making it much easier to use in combination with other gear such as volcas or Eurorack modules
- Improved Attack and Release time ratios
- L/R Stereo Output Jack (instead of XLR)
- Speakers turn automatically off when using headphones
- Improved, smoother sliders
Free bundle of music software
The ARP 2600 M comes with a diverse variety of music software from Izotope including "Ozone Elements" which lets you not only create songs but also master them using AI, "Skoove" which will help you improve your keyboard playing skills, "Reason Lite" DAW software, as well as software synths from KORG and other brands.
In other words, the moment you get your hands on this synthesizer you'll have a variety of tools to help you take your music to the next level.
Specifications ARP 2600 M
Maximum Polyphony: 2 voices for duo phonic; normally monophonic
VCO-1 (Voltage Controlled Oscillator 1)
Waveforms: Sawtooth, square
Frequency range:
Approx. 0.03 Hz 30 Hz (low freq. mode)
Approx. 10 Hz - 10 kHz (audio mode)
Voltage controlled response: 1V/oct.
VCO-2 (Voltage Controlled Oscillator 2)
Waveforms: Sawtooth, pulse (dynamic pulse), triangle, sine
Frequency range:
Approx. 0.03 Hz 30 Hz (low freq. mode)
Approx. 10 Hz - 10 kHz (audio mode)
Pulse width: 10% - 90%
Voltage controlled response: 1V/oct.
VCO-3 (Voltage Controlled Oscilator 3)
Waveforms: Sawtooth, pulse (dynamic pulse)
Frequency range:
Approx. 0.03 Hz - 30 Hz (low freq. mode)
Approx. 10 Hz - 10 kHz (audio mode)
Pulse width: 10% - 90%
Voltage controlled response: 1V/oct.
VCF (Voltage Controlled Filter)
Type: Low-pass (TYPE I: early 24 dB/oct., TYPE II: late 24 dB/oct.)
Frequency range: Approx. 10 Hz - 10 kHz
Resonance: 1/2 - self oscillate
VCA (Voltage Controlled Amplifier)
Control voltage:
AR type (internally connected)
ADSR type (internally connected)
Noise generator: Noise spectrum types (white and pink)
RING MODULATOR
Type: Analog multiplier
Input signal (Internally connected): VCO-1 sawtooth wave, VCO-2 sine wave
SAMPLE & HOLD
Sampled signal: Noise (internally connected)
AUDIO OUTPUT JACKS
Front Panel (LEFT, RIGHT OUTPUT jacks)
Connector: ⌀3.5 mm monaural phone jack
Maximum output level: +9 dBu @ 10 kΩ load
Output impedance: 1.2 kΩ

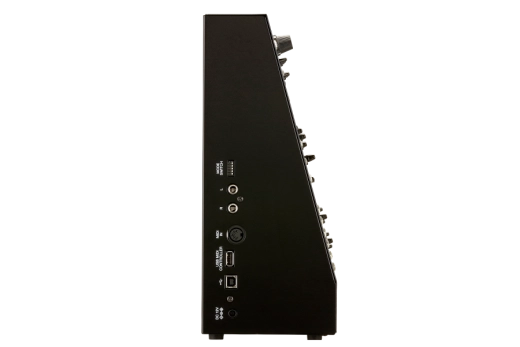

Side Panel
Connector: ⌀6.3 mm monaural phone jack
Maximum output level: +4 dBu @ 600 kΩ load
Output Impedance: 1.2 kΩ
HEADPHONES JACK
Connector: ⌀6.3 mm stereo phone jack
Maximum output level: 50 mW + 50 mW @ 33Ω load
Output impedance: 20Ω
EXTERNAL AUDIO INPUT (PREAMPLIFIER INPUT) JACK
Connector: ⌀3.5 mm monaural phone jack
Maximum input level: +2dBu *RANGE x10, GAIN knob Max
Input impedance: 100kΩ
MIDI connector: IN
USB port: Type A, Type B
General
Power supply: AC power supply terminal (KA320)
Power consumption: 13W
Dimensions (W x D x H): 520 x 129 x 311 mm / 20.5 x 5 x 12.2 inches
Weight: 6.0 kg / 13 lbs

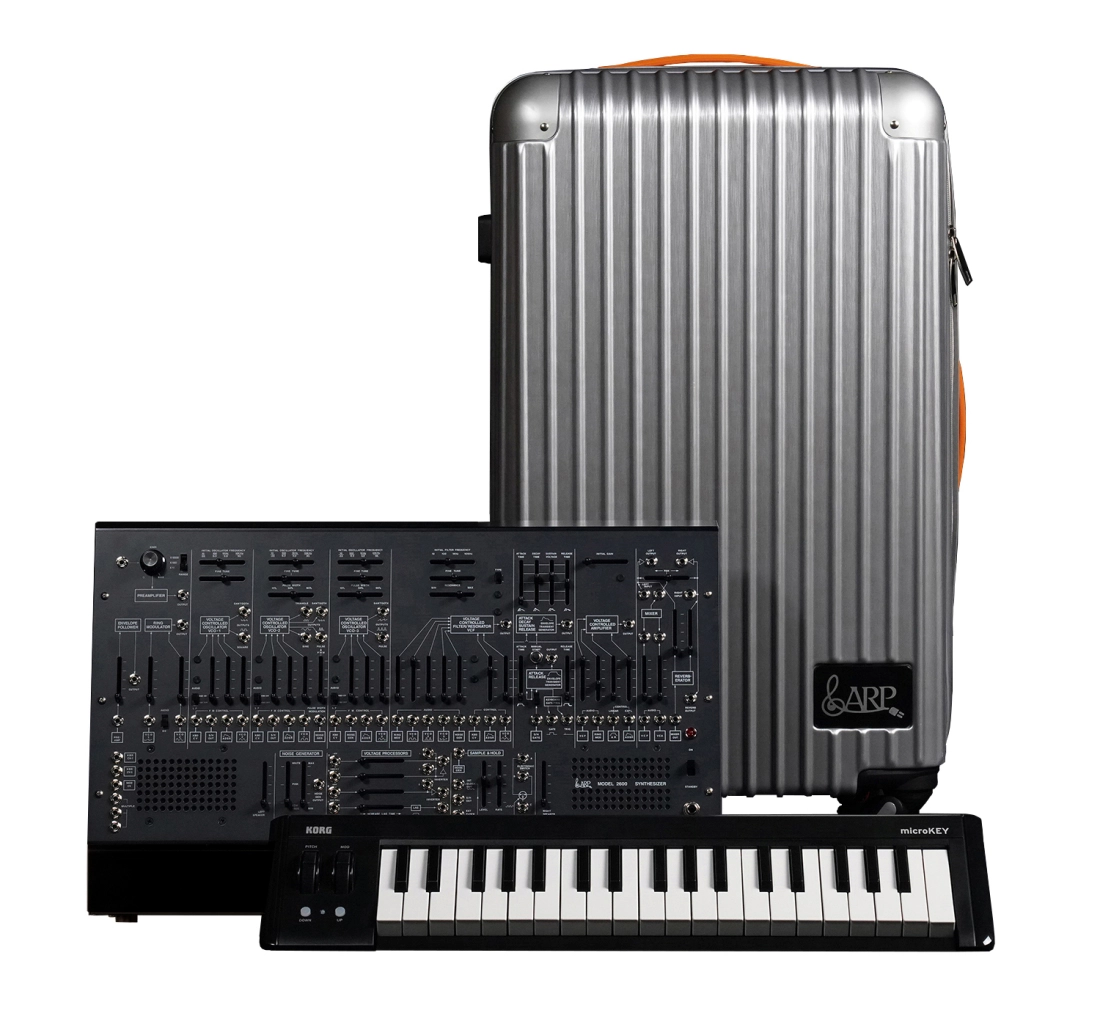

Included Items: ARP 2600 M - LTD (Limited Edition) Road case (silver), AC power cord (KA320), patch cables, Owner's manual, ARP stickers, microKEY2-37ARP 2600 M (Standard Edition) Road case (black), AC power cord (KA320), patch cables, Owner's manual, ARP stickers
Specifications microKEY-37
Keyboard: Natural Touch mini-keyboard, 37 keys
Controllers: Pitch bend wheel, Modulation wheel, Octave Shift button: -4 +4
Connections: Assignable switch jack, USB Type B (x1)
Wireless Type: Bluetooth Low Energy (Apple Bluetooth Low Energy MIDI specification compliant)
Power Supply
Two AA batteries (when connected wirelessly; use alkaline or nickel-metal hydride batteries)
USB bus power (when connected via USB)
Power Consumption: Less than 100mA
Battery Life: Approximately 30 hours (use alkaline batteries)
Dimensions (W x D x H): 565 x 139 x 54 mm/22.24" x 5.47" x 2.13"
Weight (without batteries): 1.0 kg / 2.21 lbs.
Included Items: USB cable, KORG Software Bundle code
