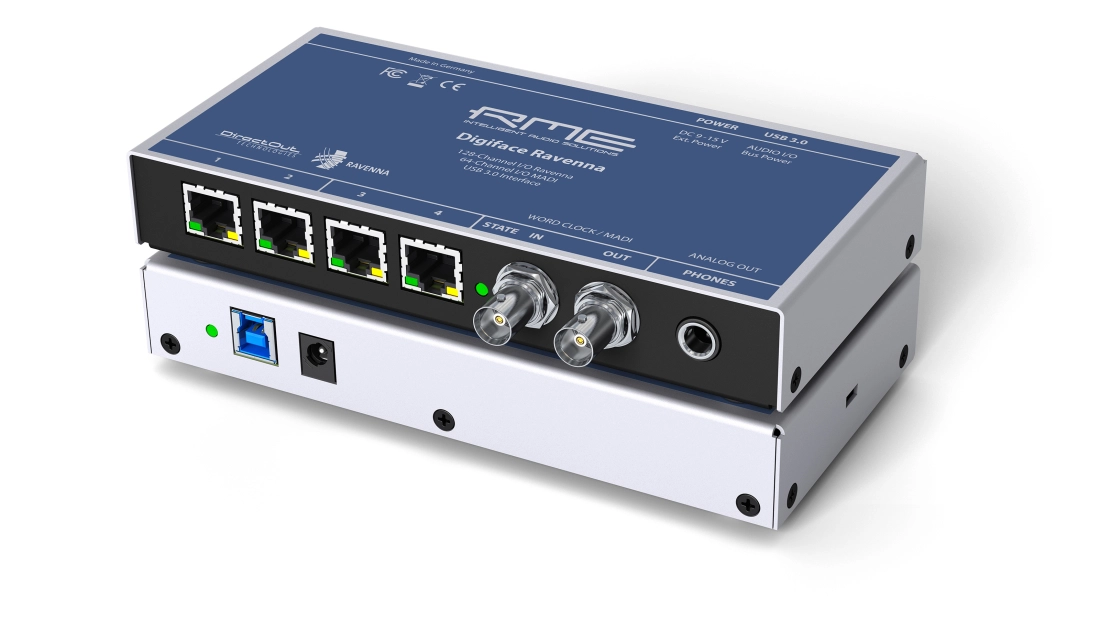

RME Digiface Ravenna 256-Channel 192 kHz USB Audio Interface
Additional Photos:
Related Products
Description
Mobile RAVENNA Solution via USB
The combination of RME's renowned drivers (Mac/Windows) and DirectOut's RAVENNA implementation offer a reliable and flexible networked computer audio interface. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown.
RAVENNA & MADI
RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.
On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.
TotalMix FX and TotalMix Remote
Like all the latest RME interfaces, the Digiface Series also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.
Features
• RME USB 3.0
• 1 x Phones Output
• TotalMix FX
• ARC USB
• Word Clock I/O
• 4 x Gigabit Ethernet (802.3 compliant)
• 1 x MADI I/O coaxial
• DC-coupled Outputs (Phones)
Specifications
Gigabit Ethernet Port
RJ45
100 Mbit/s, 1 Gbit/s
Standard port LEDs: yellow connected, green data transmission
Supports straight and crossover cables (Auto MDI-X)
Network-based remote control of the unit (TotalMix Remote)
RAVENNA Module
Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
Network Layer 3
Modes: Switched and Redundancy according to ST 2022-7
32 streams
128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
Clock sources: PTP, Internal
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
Routing: Channel-based routing matrix
Configuration: Browser GUI, globcon control, NMOS IS-04 / IS-05
MADI Input
Coaxial via BNC, 75 Ohm, according to AES10-1991
High-sensitivity input stage (< 0.2 Vpp)
Accepts 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz
Lock range: 25 kHz 54 kHz
MADI Output
Coaxial via BNC, 75 Ohm, according to AES10-1991
Output voltage 400 mVpp
Cable length: up to 50 m
Generates 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz
Output Analog Phones 129/130
Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD @ -1 dBFS: - 96 dB, 0.0016 %
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW
Word Clock In
BNC, not terminated (10 kOhm)
Switchable internal termination 75 Ohm
Automatic Double/Quad Speed detection and conversion to Single Speed
Word Clock Out
BNC
Max level: 5 Vss
Level with termination 75 Ohm: 4.0 Vss
Internal impedance: 10 Ohm
Output Analog Phones 129/130
Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD@-1dBFS:-96dB,0.0016%
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW
Digital
Clocks: Internal, RAVENNA (PTP), word, MADI
Supported sample rates: 44.1 kHz up to 192 kHz
Included free with all RME Audio Interfaces
- TotalMix FX
- TotalMix Remote
- DIGICheck
- Driver Support
