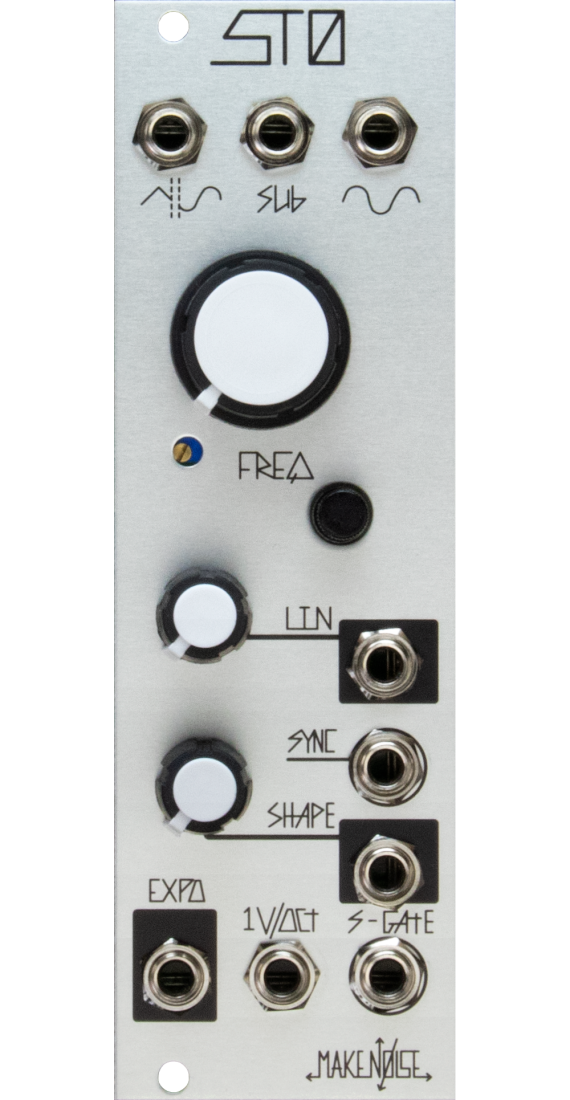

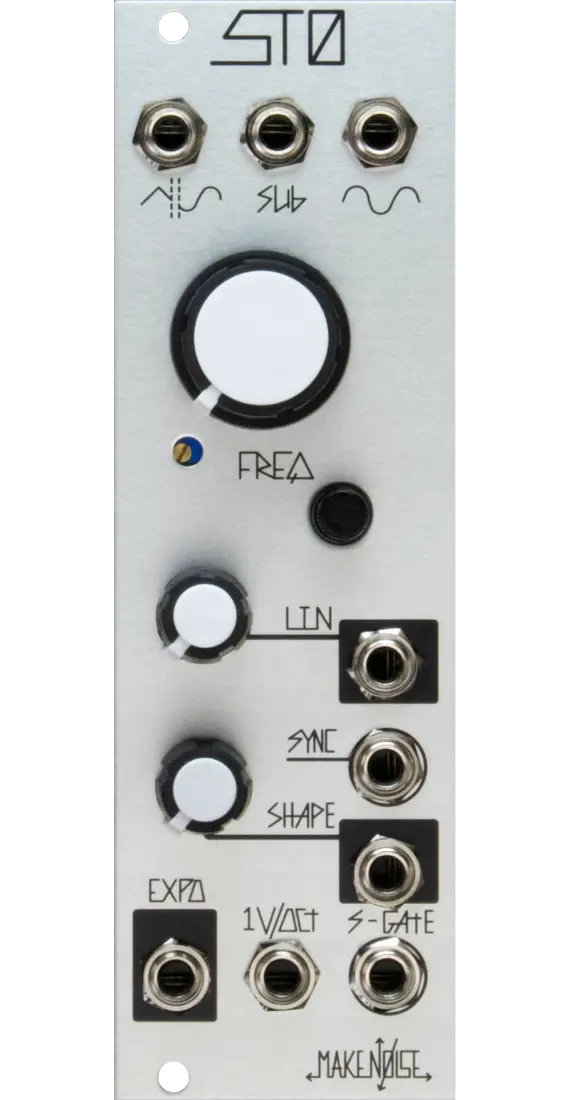

Make Noise STO Music Synthesizer Module

The STO music synthesizer module is a compact Voltage Controlled Oscillator designed for generating SINE waves, Variable wave-SHAPEs, SUB-Octaves, Oscillator SYNC and Linear FM in the analog domain. The Sub-Timbral Oscillator is the more subtle and melodic friend to the DPO's complex harmonic lattice.

Features

• Triangle Core with outputs for SINE, SUB and Variable SHAPE
• Unique Variable SHAPE circuit ripples Even and Odd harmonics for subtle timbral shifts
• Linear FM input with Depth control
• EXPOnential input for deep FM, SYNC sweeps or Transposition of sequences
• SUB-Oscillator yields max bass
• S-Gate input for gating or sync of SUB-Osc. independent of other outputs
• Hard SYNC circuit which combined with Linear FM and Variable SHAPE yields harmonically rich sounds
• Pairs well with the MMG or Optomix

Specifications

Width: 8hp
Max Depth (incl. power cable): 45mm
Power: 40mA@ +12V / 30mA @ -12V
