DiMarzio

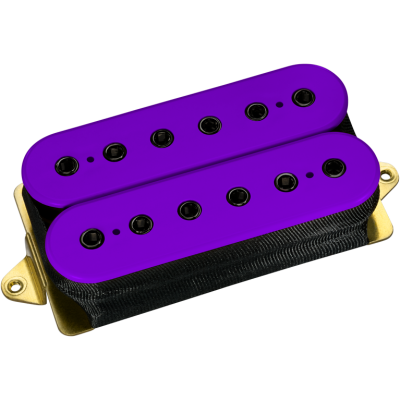

The D Activator™ Bridge has an enriched harmonic quality and the notes want to sing. Both the D Activator™ Neck and Bridge pickups were designed to eliminate the sterile edginess commonly associated with active pickups. The D Activator™ Bridge pickup is about 25% louder than the D Activator™ Neck. Since we were developing both pickups as a set from the ground up, we adjusted the volume levels on the pickups so they are balanced. That way when you switch from the neck to the bridge, you don't hear a drop in volume - also a frequent problem with active pickups - and they don't use batteries.

The D Activator Bridge pickup is passive with a lot of headroom, and it responds quickly and accurately to changes in pick attack. A hard pick attack doesn't cause the signal to flatten out, and picking more softly or rolling the volume control down lets the sound clean up naturally. Like all passive pickups, D Activator™ pickups require controls with a minimum value of 250Kohms. 500K is the standard all around value, and DiMarzio's 1MΩ tone control is best for long cable runs.

Specifications

Recommended for: Bridge position
Quick Connect: No
Spacing: F-spaced
Wiring: 4 Conductor
Magnet: Ceramic
Resistance: 11.41 Kohm
Year of Introduction: 2007
