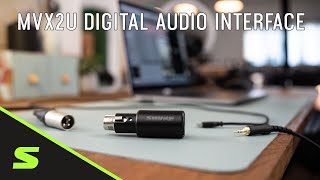

Shure MVX2U Digital Audio Interface

The MVX2U Digital Audio Interface is a powerful, single-channel XLR-to-USB adapter that allows you to connect any XLR microphone to a computer for effortless recording and streaming. With configurable DSP features and full access to ShurePlus MOTIV Desktop App, the compact interface is future-proofed via online firmware updates. Providing up to 60dB of clean gain, the XLR-to-USB adapter has enough power to bring your favorite dynamic microphone, such as the legendary SM7B, to life. It also offers up to 48v of phantom power for connecting a condenser microphone to your computer. Portable, sleek and rugged, the MVX2U can be plugged straight onto an XLR microphone or used in-line with an XLR cable, depending on your setup.

Features

• Make your favorite dynamic or condenser XLR microphone ready for podcasting or livestreaming with the MVX2U. The XLR-to-USB adapter enables digital recording and streaming right out of the box with Auto Level Mode and phantom power already switched on.
• Upgrade your XLR microphone with configurable onboard DSP via the ShurePlus MOTIV Desktop App.
• A built-in 3.5mm headphone jack with zero-latency monitoring ensures youll get the desired audio output every time.
• Supplies 48v of phantom power for condenser microphones.
• Provides clean gain of up to 60dB that is sufficient to amplify signals for dynamic microphones such as SM7B. CPortable form factor with a sleek yet robust build can be plugged straight onto an XLR microphone or used in-line with an XLR cable depending on your desired setup.
• Compatible with both Mac and Windows, connect your XLR microphone directly to your computer with the included 1m USB-C to USB-C cable.

In the Box:

1 - MVX2U Digital Audio Interface
1 - 1m USB-C to USB-C cable

Specifications

Input: XLR
Input Impedance: 5.8kΩ
Bit Depth: 16-bit/24-bit
Sampling Rate: 48kHz
Frequency Response: 20Hz to 20,000Hz
Adjustable Gain Range: 0 to +60dB
Maximum Input Level: 7dBV
Power Requirements: Powered through USB-C
Phantom Power: +48VDC
Digital Noise Floor (20 Hz to 20 kHz, A-weighted): -117dBFS
LED Indicator (Tricolor): Green = Ready, Amber = Error, Red = Mute
Housing: All Metal
Net Weight: 100 g (3.5 Oz.)
Dimension: 44 x 140 x 158mm H x W x D
Headphone Output: 3.5 mm (1/8 inch) 20 mW @ 32Ω
Cable: 1M USB-C to USB-C cable

System Requirements

USB: USB 2.0
RAM: 64MB RAM (minimum)
Operating System:
MacOS 10.15 to 13, 64 bit
Minimum 2 GB of RAM
Minimum 500 MB of hard disk space Windows 10, 64 bit
Minimum 2 GB of RAM
Minimum 500 MB of hard disk space
