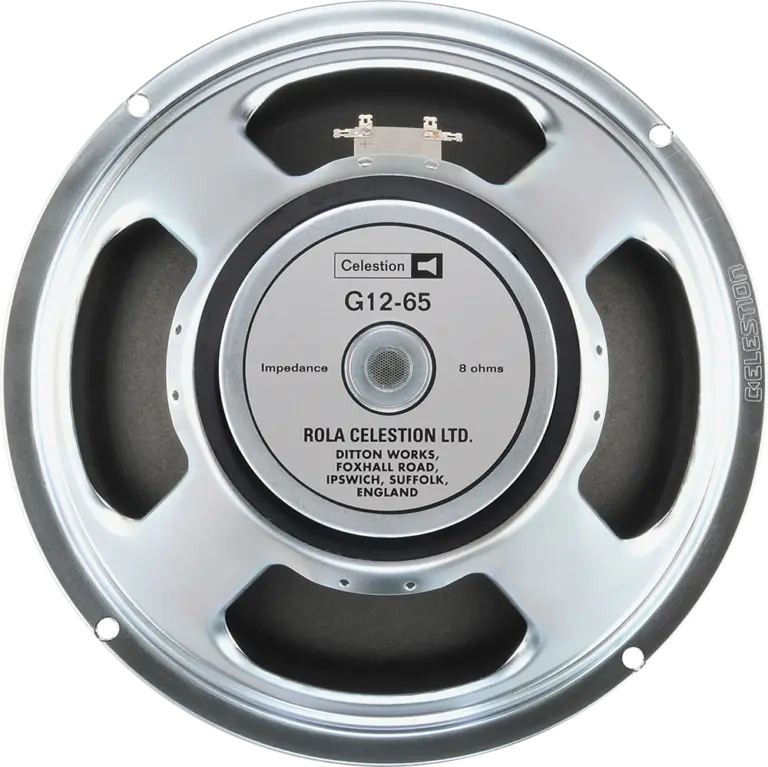

Celestion Heritage Series 65 Watt 8 Ohm Speaker - 12''

Originally created in the late 70s using more modern materials and techniques for a higher power handling the G12-65 is widely regarded as one of the best guitar speakers ever produced for use in a 412 cabinet. With its fast attack and tightly controlled low end the G12-65 had become a firm favourite with hard rock players by the early 80s. The precisely tuned mid-range and crisp defined top-end contribute to an aggressive crunch sound that punches through the mix while the mid-range warmth and detail give weight and depth to single notes.

Specifications

Nominal diameter: 305 mm / 12"
Power rating: 65W
Rated impedance: 8Ω
Sensitivity: 97dB
Chassis type: Pressed steel
Magnet type: Ceramic
Magnet weight: 0.99 kg / 35 oz
Voice coil diameter: 1.75" / 44 mm
Voice coil material: Round copper
Frequency range: 80-5000Hz
Resonance frequency, Fs: 85Hz
DC resistance, Re: 6.9Ω

Mounting Information

Cut-out diameter: 283 mm / 11.1"
Diameter: 309 mm / 12.2"
Magnet structure diameter: 145 mm / 5.7"
Mounting hole dimensions: 7.9 mm / 0.31"
Mounting hole PCD: 297 mm / 11.7"
Number of mounting holes: 4
Chassis depth (inc gasket): 94 mm / 3.67"
Magnet depth: 34 mm / 1.33"
Overall depth: 128 mm / 5.0"
Unit weight: 3.5kg / 7.7 lb
