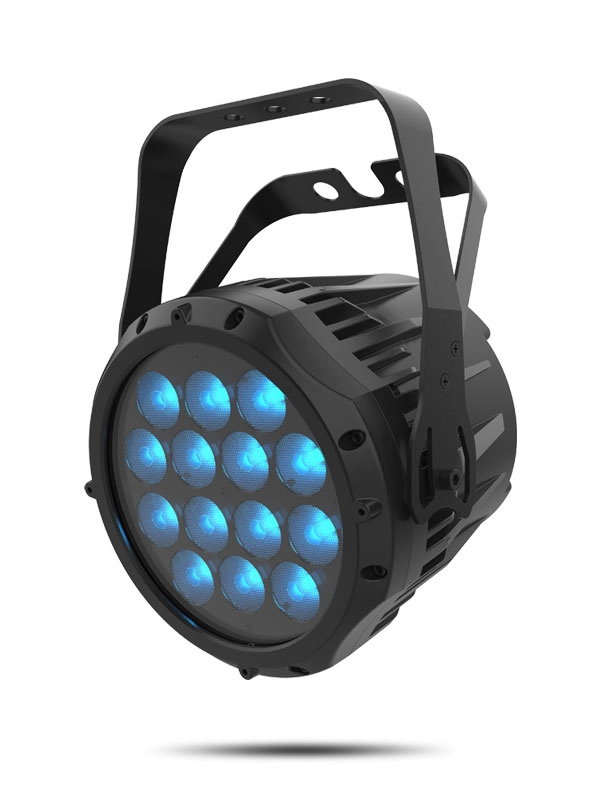

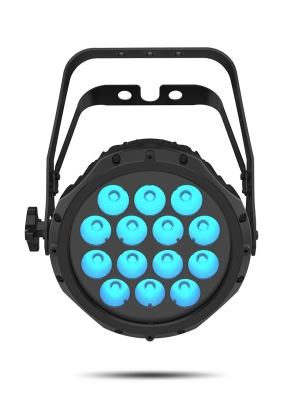

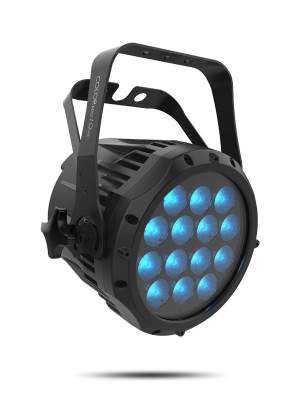

Chauvet DJ COLORado 1 Quad Wash Light
Additional Photos:
Features
• RGBW LED wash for touring, rental, and production, indoors or out• All environment operation with IP rated power and DMX connections
• Color temperature presets, from 3200 K to 10000 K
• Selectable, smooth dimming curves for programming versatility
• LED display with password protection
• M12 GORE® valve for assured internal equalization
• Simple and complex DMX channel profiles for programming versatility
• Double-bracket yoke doubles as floor stand
Specifications
OpticalLight Source: 14 LEDs (quad-color RGBW) 5 W, (350 mA), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 10,000
KBeam Angle: 14.1°
Field Angle: 27.2°
Lumens: 2839
Illuminance (total): 1385 lux @ 5 m
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 14 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5Dim
Curves: 4Built-in
Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

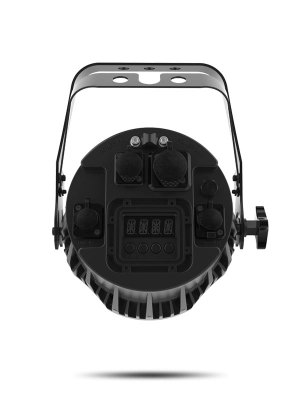

[B]Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 4, 5, 6, 7, 9, 10, 13 or 15
Modes/Personalities (RGB): 3 personalities (TOUR, TR16, AR1.D)
Modes/personalities (RGBW): 6 personalities (ARC.2, AR2.D, AR2.S, SSP, 16Bit, 8Bit)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 10 units @ 100 V; 13 units @ 120 V; 22 units @ 208 V; 25 units @ 230 V; 25 units @ 240 V
Power and Current: 109 W, 0.892 A @ 120 V, 60 Hz
Power and Current: 110 W, 0.529 A @ 208 V, 60 Hz
Power and Current: 112 W, 0.492 A @ 230 V, 50 Hz
Certifications/Qualifications
CE, METIP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
COLORado 1
QuadSeetronic Powerkon IP65 power cord
Gel frame holder (7.5 in/191 mm accessories)
