Kali Audio
WS-12 v2 12'' 1000W Powered Subwoofer (Single)
Additional Photos:
The WS-12 is the only subwoofer that can pull double duty as a studio and live subwoofer. An 18mm wooden enclosure means that the WS-12 V2 is rugged and portable, making it a perfect solution for use in small PA systems. The WS-12 V2 is specifically designed to fit into small passenger cars, making it easy to carry to and from gigs.
V2 features several improvements over the original version. Signal-to-noise on the crossover is improved by more than 6 dB. The V2 also features an M10 pole cup, allowing users to attach a pole for mounting full-range PA speakers.
2nd Wave
V2 features several improvements over the original version. Signal-to-noise on the crossover is improved by more than 6 dB. The V2 also features an M10 pole cup, allowing users to attach a pole for mounting full-range PA speakers.
1000 W Amplifier/ 123 dB Max SPL
The WS-12 V2 uses a Class D power amp capable of 1000 W peak power and 500 W continuous power. This allows the WS-12 V2 to play up to 123 dB Max SPL; enough SPL to provide LFE for at least a 5.1 system of IN-8s. In many listening environments, 1-2 WS-12s can easily handle both LFE and bass management for a full Atmos system.
30 Hz at +/- 3dB Benefits
The WS-12 is fully compliant with Dolby's specifications for subwoofers to be used for Atmos monitoring for both music and picture.
Low Noise Port Tube
On most port tubes, air leaves at different speeds from different points of the opening, creating noisy turbulence. This turbulence can be heard as "chuffing," or an audible air sound coming from the monitor. This sound will add to the noise floor and obscure the details of the low end.
The port tube on the WS-12 V2 was designed to ensure that all of the air leaves the port tube at the same velocity. This helps add to the low end response of the speaker, while keeping the bass clean, tight, and devoid of extra noise.
Selectable crossover
The WS-12 V2 has a user-selectable crossover with 5 Hz steps from 50 to 110 Hz. This allows users to integrate the WS-12 with any pair of stereo speakers, including studio monitors, hifi speakers, and PA speakers.
Most studio monitors, including all models offered by Kali Audio, will work best with the 80 Hz setting.
Polarity Inversion
The polarity reverse function on the WS-12 allows you to flip polarity by 180 degrees to better integrate with the full range speakers and the room.
Footswitch Benefits
You can use a foot switch, sold separately, to turn the subwoofer off and disable the crossover, allowing you to hear full range signal through your studio monitors without the sub when you want to check your mixes.
Road-Ready Sub

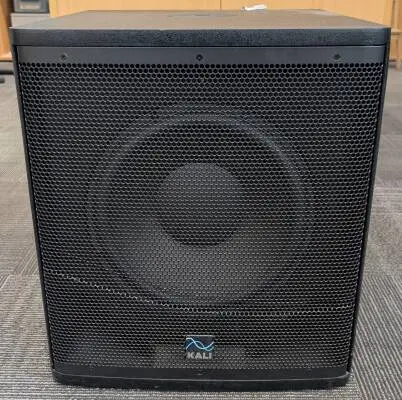

The WS-12 V2 is ready for live use. With an 18-mm plywood enclosure, a steel grille, and a rugged, textured coating, it can stand up to stage duty and the abuses of being transported night in and night out. Steel handles make the WS-12 easy to carry, and its dimensions are specifically tailored to fit into the trunk of a Toyota Corolla, meaning that it can be easily transported in most passenger cars.

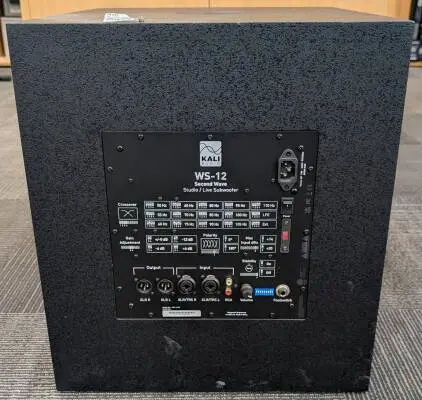

XLR, TRS, and RCA Inputs Benefits
The WS-12 features balanced XLR and TRS inputs, and an unbalanced RCA input. The RCA input can be set to 14 dBu sensitivity when you're using consumer devices like a laptop or smartphone's headphone jack.
Specifications
Powered: YesAmplifier Class: D
Power: 1000 W
LF Driver: 12-Inch Woofer
Frequency Response (-10 dB): 23 Hz - 200 Hz
Frequency Range (+3 dB): 30 Hz - 200 Hz
Max SPL: 123 dB
Inputs: Stereo XLR/TRS Combi Stereo RCA
TRS/XLR Input Sensitivity: +4 dBu
RCA Input Sensitivity: -10 dBV
Outputs: Stereo XLR (w/ Selectable Crossover)
DSP: Polarity (+/-) / Boundary Compensation Gain Settings Selectable Crossover
Crossover Settings: Every 5 Hz from 50 Hz to 110 Hz / LFE / External
Enclosure: 18mm Plywood, Front Ported
Pole Cup: M10 Threaded
Output Signal-to-Noise: 105 dB
Height: 19.2" (48.8 cm)
Width: 20.5" (52.1 cm)
Depth: 10.25" (26 cm)
Product Weight: 63 lbs (29 kg)
