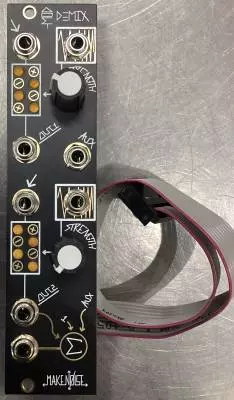

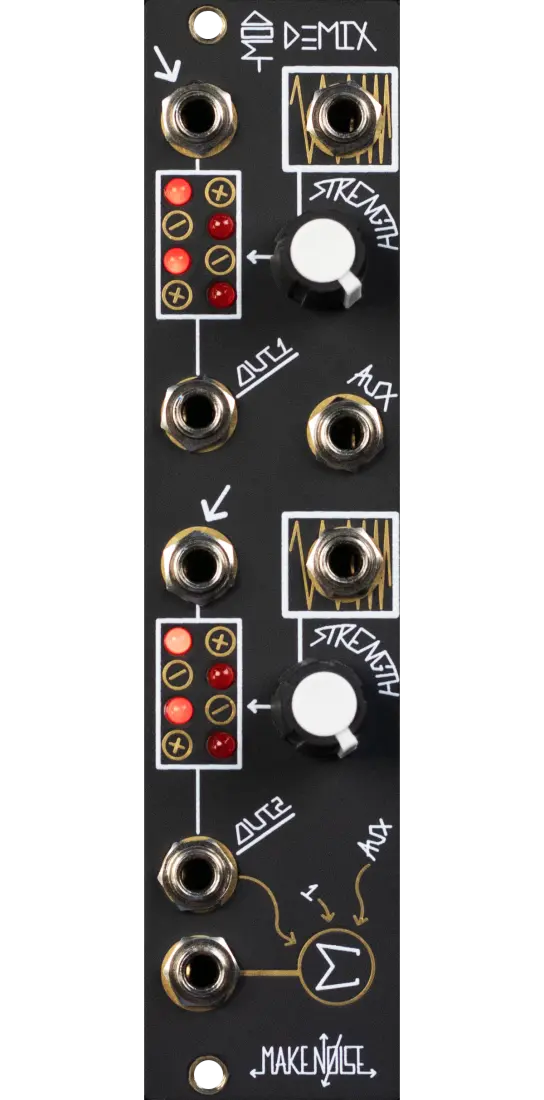

Make Noise modDemix Module - Black and Gold

The modDemix music synthesizer module features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more.

Unique balanced modulator circuit turns off around zero volts at the Carrier/ Control Input, making the circuit behave well as a VCA. Strength is a Combo Knob, with nothing patched to STRENGTH CV IN, it works as a standard panel control, setting Level. With signal patched to Strength CV Input, it works as an attenuator, setting the strength of the modulation. Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer. Auxiliary Input allows for the stacking of multiple modDemix and/ or Optomix to create larger mixes. Part of a decentralized mix console integrated throughout the system along with Optomix, X-PAN, Dynamix, and RxMx. Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod. MAX BLINKENLIGHTS, 8 LEDs packed into a small 6hp module. Pairs well with MATHS and Optomix.

Specifications

Width: 6hp
Max Depth (incl. power cable): 32mm
Power:
- 30mA@ +12V
- 30mA @ -12V
