Audient
ORIA Immersive Audio Interface and Monitor Controller
Additional Photos:

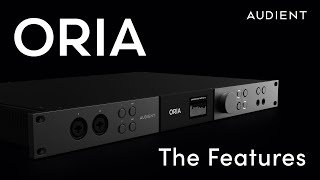

Product Videos :
YouTube Video
Atmos just got easy
Meet ORIA, the world's first audio interface and monitor controller designed specifically with immersive audio in mind. Built for creating immersive audio mixes for formats such as Dolby Atmos, ORIA lets you calibrate, control and monitor multi-channel speaker arrays from stereo up to 9.1.6 and everything in between. Perfect for music, film, TV, game and VR production.
A perfect fit
Designed with a dual purpose, ORIA not only excels as a powerful USB-C audio interface providing 16 outputs for up to 9.1.6 mixing workflows, but can also effortlessly integrate into your existing studio setup as a standalone monitor controller via its ADAT Inputs. Flexibility where you need it.
Advanced Speaker Processing
Working with multi-channel speaker setups requires a precisely calibrated room but let's face it, calibrating your room is a difficult and time consuming process.
All present & correct
ORIA's Advanced Speaker Processing lets you calibrate your room and create custom onboard calibration Profiles (presets) for any monitoring format from stereo to surround to 9.1.6 immersive setups, making reference checking your mix in different formats a breeze.
Trim
Adjust the level of every speaker individually to ensure a balanced soundfield.
Speaker Delay
Make sure audio from every speaker arrives at the mix position precisely at the same time.
Bass Management
Accurately hear ALL of the bass and low end frequencies in your mix with ORIA's bass management controls, featuring a per channel configurable crossover filter.
8 Band EQ
Deal with unwanted acoustic issues and colouration to ensure a flat and consistent translation of your audio.
All the information you need, in one place
Easy to navigate, easy to control. ORIA gives you powerful new ways to truly take control of any stereo, surround or immersive environment courtesy of its beautifully simple software.
Fast Profile Recall
Use Profiles to quickly switch between speakers, listening levels and target curves. Imagine instantly switching from your perfectly calibrated stereo nearfield speakers to a 9.1.6 immersive setup with Dolby X-Curve. Now, you can with a touch of a button.
Speaker Control
Fly around your session at high speeds with true immersive monitor control. Featuring colour coded speaker groups, individual & group speaker mute/solo, global Volume Control, Cut & Dim and a Global Delay (Lip-sync) for post production workflows.
Metering
Keep an eye on your metering from multiple locations including ORIA's front panel LCD screen, desktop software or iPad remote. Still need more detail? Expand ORIA's desktop metering via an independent window, unlocking additional visual feedback.
Dolby Atmos Support
ORIA integrates with the Dolby Renderer, letting you take control of the down mix functionality directly from ORIA's user interface. Ideal for quickly checking your mix in different monitoring layouts, such as 7.1, 5.1, stereo and more.
Go remote
Never miss a beat with ORIA's iPad Control App. The power of touch grants you remote access to all of ORIA's control features from one centralised control hub. Adjust levels, audition speakers, switch profiles and monitor your metering - all directly from your desktop. Precise control without the complexity.
Make that connection
With a huge array of connectivity options, ORIA provides more than enough I/O to take on professional multi channel setups. Plug in your surround speakers via the line or AES outputs. Connect your nearfield speakers to the dedicated Stereo Outputs. And easily integrate an external interface or preamp using the ADAT inputs.
• Supports up to 9.1.6 Speaker Setups
• 2 x 16 Channel Surround Outputs (Analogue & AES)
• 2 x Stereo Line Outputs (Relay Switched)
• 2 x Independent Stereo Headphone Outputs
• 2 x Audient Mic Preamps (Mic / D.I / Line)
• 2 x ADAT Inputs
• Word Clock Input
• Word Clock Output
• ORIA Motion UI
• 24 bit / 96kHz
• USB 2.0 / USB Type-C
• Sonarworks SoundID Reference Measurement Microphone Included
• Optional AoIP Card (Dante) for 16 Input channels
• Input / Output Switching
• Master Volume Control
• Global Delay (lip sync)
• Individual Speaker Solo & Mute
• Speaker Group Solo & Mute
• Per Channel Metering (pre & post)
• Down Mix Cycling - Dolby Renderer Integrated
• Programmable Function Button
Onboard Room Calibration DSP
• Per Output EQ
• Per Output Delay
• Per Output Trim
• Per Output Crossover (Bass Management)
• Profile Switching - Sonarworks Integrated
• Configurable Global Bypass
Gain: 60dB
Max Input Level: +18dBu
Crosstalk: 105dB
THD+N: 0.0015% / -96dB
EIN: -129dB
CMRR: -85dB
SNR: 100dB
Frequency Response: +0.5dB 20Hz to 40kHz
Input Impedance: 1.5kΩ Balanced
Line Inputs
Gain: -10dB to +50dB
Max Input Level: +18dBu
THD+N: 0.0015% / -96dB
Input Impedance: 4.7kΩ Balanced
D.I / Instrument Input
Gain: 60dB
Max Input Level: +18dBu
THD+N: 0.16%
SNR: 100dB
Frequency Response: +0.5dB 20Hz to 40kHz
Input Impedance: 370kΩ Unbalanced
Line Outputs
Lineup Level: +18dBu
THD+N: 0.0006%, -105dB
Dynamic Range: 126.5dB
Crosstalk: -123dB
Frequency Response: +0.3dB 10Hz to 40kHz
Output Impedance: 100Ω Balanced
Headphone Outputs
Lineup Level: +18dBu
THD+N: 0.0007% (-103dB)
Dynamic Range: 124dB
Crosstalk: -115dB
Frequency Response: +0.25dB 10Hz to 40kHz
Output Impedance: 50 Ω Unbalanced
Max Level @ 30R: 5.47V Peak, 3.87Vrms, 997mW
Max Level @ 60R: 7.4V Peak, 5.29Vrms, 912mW
Max Level @ 600R: 8.6V Peak, 6.09Vrms, 123mW
USB-C
Connector: USB Type C
Included Cable: USB Type-C to Type-C
Number of Input Channels: 34 (2x Analogue, 16 Digital, 16 AOIP)
Number of Output Channels: 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES)
Digital Inputs
ADAT 16 Channels: 44.1kHz to 48kHz
ADAT 8 Channels (SMUX): 88.2kHz to 96kHz
Digital Outputs
AES Outputs: 16 Audio Channels (8x AES Data Streams)
Word Clock Input and Output
Word Clock: 44.1kHz to 96kHz
DSP Latency (Round Trip)
44.1kHz 6.5ms
48kHz 6.3ms
88.2kHz 5.5ms
96kHz 5.4ms
AOIP (Optional Dante Expansion Card)
AOIP Inputs: 16 (44.1kHz to 96kHz)
Power Supply
Input Voltage: 85 264 VAC
Input Frequency: 47 63Hz
Meet ORIA, the world's first audio interface and monitor controller designed specifically with immersive audio in mind. Built for creating immersive audio mixes for formats such as Dolby Atmos, ORIA lets you calibrate, control and monitor multi-channel speaker arrays from stereo up to 9.1.6 and everything in between. Perfect for music, film, TV, game and VR production.
A perfect fit
Designed with a dual purpose, ORIA not only excels as a powerful USB-C audio interface providing 16 outputs for up to 9.1.6 mixing workflows, but can also effortlessly integrate into your existing studio setup as a standalone monitor controller via its ADAT Inputs. Flexibility where you need it.
Advanced Speaker Processing
Working with multi-channel speaker setups requires a precisely calibrated room but let's face it, calibrating your room is a difficult and time consuming process.
All present & correct
ORIA's Advanced Speaker Processing lets you calibrate your room and create custom onboard calibration Profiles (presets) for any monitoring format from stereo to surround to 9.1.6 immersive setups, making reference checking your mix in different formats a breeze.
Trim
Adjust the level of every speaker individually to ensure a balanced soundfield.
Speaker Delay
Make sure audio from every speaker arrives at the mix position precisely at the same time.
Bass Management
Accurately hear ALL of the bass and low end frequencies in your mix with ORIA's bass management controls, featuring a per channel configurable crossover filter.
8 Band EQ
Deal with unwanted acoustic issues and colouration to ensure a flat and consistent translation of your audio.
All the information you need, in one place
Easy to navigate, easy to control. ORIA gives you powerful new ways to truly take control of any stereo, surround or immersive environment courtesy of its beautifully simple software.
Fast Profile Recall
Use Profiles to quickly switch between speakers, listening levels and target curves. Imagine instantly switching from your perfectly calibrated stereo nearfield speakers to a 9.1.6 immersive setup with Dolby X-Curve. Now, you can with a touch of a button.
Speaker Control
Fly around your session at high speeds with true immersive monitor control. Featuring colour coded speaker groups, individual & group speaker mute/solo, global Volume Control, Cut & Dim and a Global Delay (Lip-sync) for post production workflows.
Metering
Keep an eye on your metering from multiple locations including ORIA's front panel LCD screen, desktop software or iPad remote. Still need more detail? Expand ORIA's desktop metering via an independent window, unlocking additional visual feedback.
Dolby Atmos Support
ORIA integrates with the Dolby Renderer, letting you take control of the down mix functionality directly from ORIA's user interface. Ideal for quickly checking your mix in different monitoring layouts, such as 7.1, 5.1, stereo and more.
Go remote
Never miss a beat with ORIA's iPad Control App. The power of touch grants you remote access to all of ORIA's control features from one centralised control hub. Adjust levels, audition speakers, switch profiles and monitor your metering - all directly from your desktop. Precise control without the complexity.
Make that connection
With a huge array of connectivity options, ORIA provides more than enough I/O to take on professional multi channel setups. Plug in your surround speakers via the line or AES outputs. Connect your nearfield speakers to the dedicated Stereo Outputs. And easily integrate an external interface or preamp using the ADAT inputs.
Hardware Features
• Supports up to 9.1.6 Speaker Setups
• 2 x 16 Channel Surround Outputs (Analogue & AES)
• 2 x Stereo Line Outputs (Relay Switched)
• 2 x Independent Stereo Headphone Outputs
• 2 x Audient Mic Preamps (Mic / D.I / Line)
• 2 x ADAT Inputs
• Word Clock Input
• Word Clock Output
• ORIA Motion UI
• 24 bit / 96kHz
• USB 2.0 / USB Type-C
• Sonarworks SoundID Reference Measurement Microphone Included
• Optional AoIP Card (Dante) for 16 Input channels
Software Features
Immersive Monitoring Control• Input / Output Switching
• Master Volume Control
• Global Delay (lip sync)
• Individual Speaker Solo & Mute
• Speaker Group Solo & Mute
• Per Channel Metering (pre & post)
• Down Mix Cycling - Dolby Renderer Integrated
• Programmable Function Button
Onboard Room Calibration DSP
• Per Output EQ
• Per Output Delay
• Per Output Trim
• Per Output Crossover (Bass Management)
• Profile Switching - Sonarworks Integrated
• Configurable Global Bypass
Specifications
Microphone InputsGain: 60dB
Max Input Level: +18dBu
Crosstalk: 105dB
THD+N: 0.0015% / -96dB
EIN: -129dB
CMRR: -85dB
SNR: 100dB
Frequency Response: +0.5dB 20Hz to 40kHz
Input Impedance: 1.5kΩ Balanced
Line Inputs
Gain: -10dB to +50dB
Max Input Level: +18dBu
THD+N: 0.0015% / -96dB
Input Impedance: 4.7kΩ Balanced
D.I / Instrument Input
Gain: 60dB
Max Input Level: +18dBu
THD+N: 0.16%
SNR: 100dB
Frequency Response: +0.5dB 20Hz to 40kHz
Input Impedance: 370kΩ Unbalanced
Line Outputs
Lineup Level: +18dBu
THD+N: 0.0006%, -105dB
Dynamic Range: 126.5dB
Crosstalk: -123dB
Frequency Response: +0.3dB 10Hz to 40kHz
Output Impedance: 100Ω Balanced
Headphone Outputs
Lineup Level: +18dBu
THD+N: 0.0007% (-103dB)
Dynamic Range: 124dB
Crosstalk: -115dB
Frequency Response: +0.25dB 10Hz to 40kHz
Output Impedance: 50 Ω Unbalanced
Max Level @ 30R: 5.47V Peak, 3.87Vrms, 997mW
Max Level @ 60R: 7.4V Peak, 5.29Vrms, 912mW
Max Level @ 600R: 8.6V Peak, 6.09Vrms, 123mW
USB-C
Connector: USB Type C
Included Cable: USB Type-C to Type-C
Number of Input Channels: 34 (2x Analogue, 16 Digital, 16 AOIP)
Number of Output Channels: 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES)
Digital Inputs
ADAT 16 Channels: 44.1kHz to 48kHz
ADAT 8 Channels (SMUX): 88.2kHz to 96kHz
Digital Outputs
AES Outputs: 16 Audio Channels (8x AES Data Streams)
Word Clock Input and Output
Word Clock: 44.1kHz to 96kHz
DSP Latency (Round Trip)
44.1kHz 6.5ms
48kHz 6.3ms
88.2kHz 5.5ms
96kHz 5.4ms
AOIP (Optional Dante Expansion Card)
AOIP Inputs: 16 (44.1kHz to 96kHz)
Power Supply
Input Voltage: 85 264 VAC
Input Frequency: 47 63Hz
