Yorkville Sound
Synergy Series Pickup Flybar
Additional Photos:
SAPICKUPBAR1

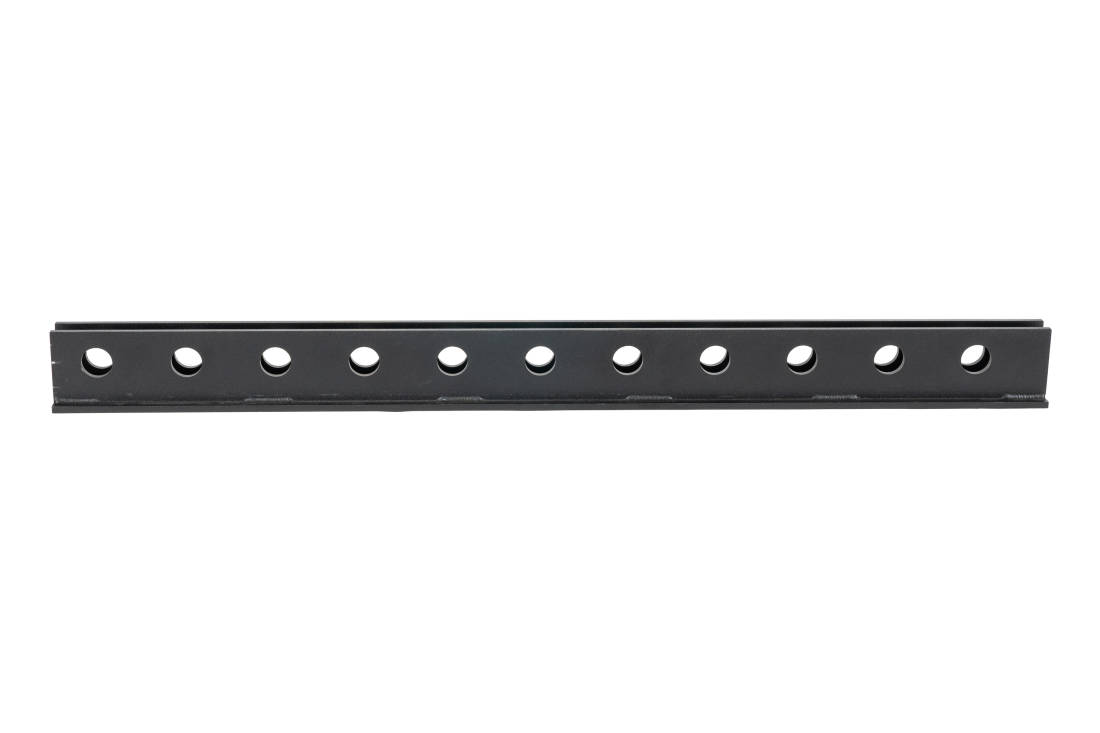

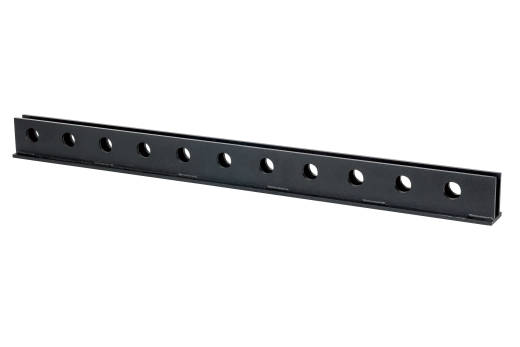

Synergy Single Box / Column Pickup Bar:
Features:
The pick up bar is simply slid into the integral flying rail on the top or bottom of the SA cabinets and secured in place with the provided hardware. There are 11 pick up points along the length of the bar allowing for easy tilting of the array.
Specifications:
• Max Load Capacity - 500lbs/226kg at 7:1 Safety Ratio
• Max Cabinet Capacity - One Single Column Hang (2 x SA153 + 1 x SA315S Max. Total Cabinet hang = 3)
• Material / Construction - 7 Gauge Welded Steel Plate
• Finish - Black Powder Coat
• Required Shackle Size (Not Included) - 5/8" (Sample Crosby#1018473)
• Overall Dimension DxWxH - 26.750" x 1.562" x 2.187"
• Weight - 7lbs
Synergy Single Box / Column Pickup Bar:
Features:
The pick up bar is simply slid into the integral flying rail on the top or bottom of the SA cabinets and secured in place with the provided hardware. There are 11 pick up points along the length of the bar allowing for easy tilting of the array.
Specifications:
• Max Load Capacity - 500lbs/226kg at 7:1 Safety Ratio
• Max Cabinet Capacity - One Single Column Hang (2 x SA153 + 1 x SA315S Max. Total Cabinet hang = 3)
• Material / Construction - 7 Gauge Welded Steel Plate
• Finish - Black Powder Coat
• Required Shackle Size (Not Included) - 5/8" (Sample Crosby#1018473)
• Overall Dimension DxWxH - 26.750" x 1.562" x 2.187"
• Weight - 7lbs
