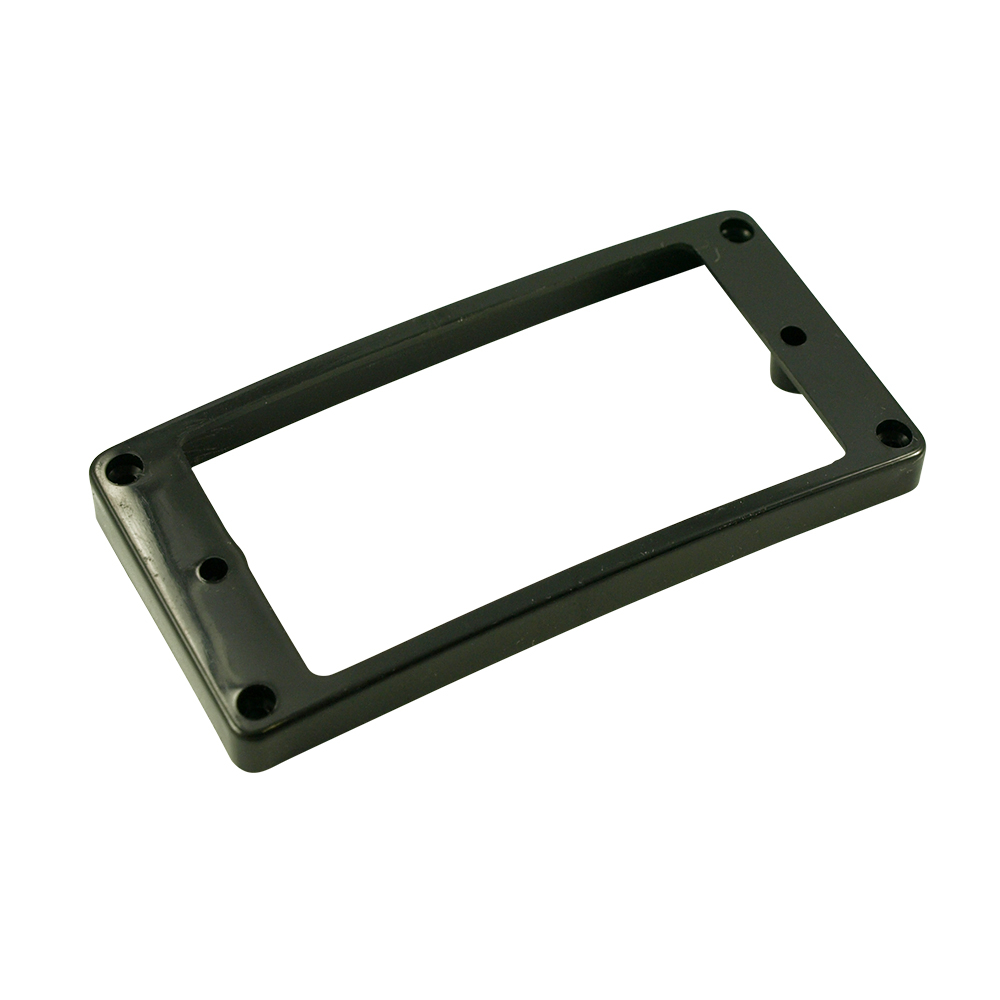

WD Music High Arched Plastic Humbucker Pickup Mounting Ring - Black
Great Additions
Description
This is a tall plastic humbucker ring with an arched radius, designed for usage in the bridge position arched or carved top guitars. This mounting ring is not an exact Gibson® spec replacement ring. It has slightly larger exterior dimensions with an overall (top and bottom) arched design and slightly different mounting hole locations.
Height on the side facing the neck: 5/16in. (7.92mm)
Radius of arch: 16 in.
Pickup Mounting Screw Ctr to Ctr: 3 5/64 in. (78.25mm)
Ring Mtg Screw Loc.: 3 5/16 in. (84mm)L x 1 29/64 in. (36.89mm)W
Interior Cutout size: 2 49/64 in. (70.16mm) L x 1 17/32 in. (38.8mm) W
Exterior Ring Dimensions: 3 39/64 in. (91.9mm) L x 1 51/64 in. (45.87mm) W
Specifications
Height on side facing the bridge: 11/32 in. (8.84mm)Height on the side facing the neck: 5/16in. (7.92mm)
Radius of arch: 16 in.
Pickup Mounting Screw Ctr to Ctr: 3 5/64 in. (78.25mm)
Ring Mtg Screw Loc.: 3 5/16 in. (84mm)L x 1 29/64 in. (36.89mm)W
Interior Cutout size: 2 49/64 in. (70.16mm) L x 1 17/32 in. (38.8mm) W
Exterior Ring Dimensions: 3 39/64 in. (91.9mm) L x 1 51/64 in. (45.87mm) W
Q & A
There are currently no questions for this product.
Reviews
There are currently no reviews for this product. Be the first to write one!
Reserve in Store
| Product | SKU | Qty |
|---|---|---|
| High Arched Plastic Humbucker Pickup Mounting Ring - Black | 694024 |
