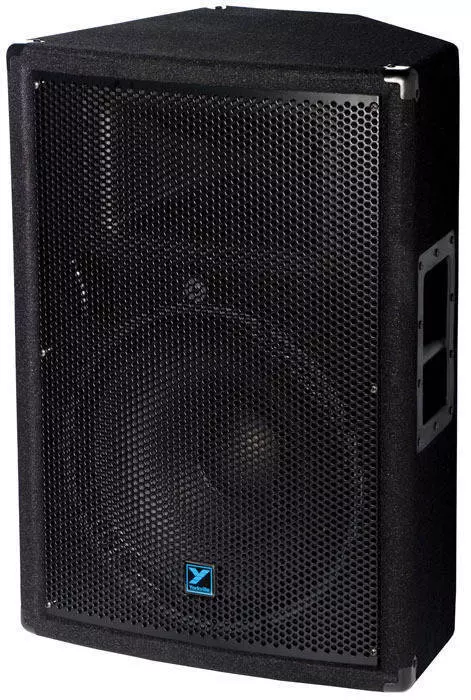

Yorkville Sound YX Series Powered Loudspeaker - 15 inch Woofer - 200 Watts

Departments > Pro Audio & Recording > PA Speaker Cabinets > Speakers - Full Range-Powered > Yorkville Sound > YX Series Powered Loudspeaker - 15 inch Woofer - 200 Watts
Add to Wish List
SKU: # 327095
Model: #

YX15P

Your Price: $599.00 CDN

Online

Engineered in North America, the YX15P benefits from Yorkville's forty plus years of PA enclosure and electronics design experience. This 15-inch / 1-inch horn bi-amplified active loudspeaker is a highly effective sound system solution for any application where a powered cabinet is preferred.

The 200-watt YX15Ps compact design, integrated standmount and 90 x 30 degree horn make it a highly effective front of house box, or an ideal repeater cabinet in more complex systems where additional cabinets are required to effectively distribute sound around a large room. The modified trapezoidal shape makes it ideal for front-of-house applications or for use as an active stage monitor.

XLR balanced microphone input as well as an XLR / 1/4-inch TRS balanced combi-jack line input on the power module means the YX15P can be easily connected to any source. A highly effective three-band EQ means the YX15P can be easily balanced for the room, ensuring simple system set-up. The XLR balanced line output allows multiple YX15Ps to be linked together quickly and easily.

The YX15s horn amplifier uses a proven two-tier class A/B technology, allowing it to produce loud clean transients and extremely sharp sibilants. The woofer or low frequency amplifier uses an extremely efficient class-H two-tier amplifier technology that provides high headroom at a lower operating temperature, making it the ideal lightweight amplification solution to drive the YX15Ps 15-inch woofer.

The rugged and reliable YX15P uses a full plywood cabinet construction, integrated stand mount adaptor, metal bar handles, a full metal amplifier chassis and all-metal grille to protect the speaker and amplifier components.

Features:
• Integrated 200 Watt Amplifier
• Bi-Amplified Power Module
• 15-inch Woofer
• 1-inch Compression Driver (1.4-inch Voicecoil)
• Designed for Front-of-House or Monitor applications
• 90 x 40 Horn with with Peak Limiter Protection
• Built-in Mixer with Two Band EQ and LF Roll-Off Mode Switch
• Paralleled XLR and 1/4-inch Inputs
• Integrated All Metal Speaker Standmount Adaptor
• Solid 5/8-inch (15mm) Plywood Construction

Specifications:
• System Type - 2-Way
• Active or Passive - Active
• Total Applied Power(Watts) - 200
• Max SPL (dB) - 122
• Frequency Response (Hz +/- 3db) - 60-20k
• Crossover Frequency (Hz) - 1800
• HF Driver - 1.4 inch Aluminum (1 inch Throat)
• HF Horn - Injection Molded ABS
• HF Dispersion (H x V) - 90 x 40
• HF Protection - Peak Limiter
• LF Driver(s) - 15 inch Ceramic
• HF Power Amplifier (Watts) - 20
• HF Amplifier Type - Class A/B
• LF Power Amplifier (Watts) - 180
• LF Amplifier Type - Two-Tier Class H
• Power Consumption (typ/max) - 120/310 VA
• Inputs - 1/4" Line-Level + XLR Mic/Line Combi
• Input Sensitivity (Vrms Sine) - +4dBv/1.23V
• Output - XLRM Line-Level Mix Out
• Controls - Mic Gain, Line/Level, B/M/T EQ
• Limiter- Yes
• LED Indicators - Power/Activity/Limit
• Corners- Metal
• Feet - Plastic Glides
• Bar Handles - 2
• Stand Adapter - 1 3/8"/3.5cm dia.
• Enclosure Material - 15mm (5/8-inch) Plywood
• Covering / Finish - Black
• Grill - Custom-Perforated Metal
• Dimensions (DWH+back,inches) - 15.5 x 19.25 x 27.5 x 7.5
• Dimensions (DWH+back, cm) - 39.4 x 48.9 x 69.9 x 19
• Weight (lbs/kg)- 51/23.1

Great speakers!1 of 1 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI own it
Closest StoreGuelph, Ontario
Got four of them. Love 'em.
Posted by Dayeton Larson on Oct 11, 2017
Was this review helpful?    flag review

These rock!3 of 3 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI own it
Closest StoreSaskatoon South, Saskatchewan
We used these for floor wedge monitors and a pair for FOH tops for smaller venues and they are excellent! Coupled with EQ and some feedback destroyers, the monitor sound is very good for 200W and the price. Better in fact than most pro sound installations we have played. Highly recommended for the money, a great deal!
Posted by Jethro Rocker on Nov 22, 2012
Was this review helpful?    flag review

YX15P3 of 3 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI own it
Closest StoreHalifax, Nova Scotia
I have had a pair of these speakers for a few years now, I run a full band through them including drums. they done distort and I have never had to repair them. great powered speaker for the money.
Posted by anonymous on May 10, 2012
Was this review helpful?    flag review
