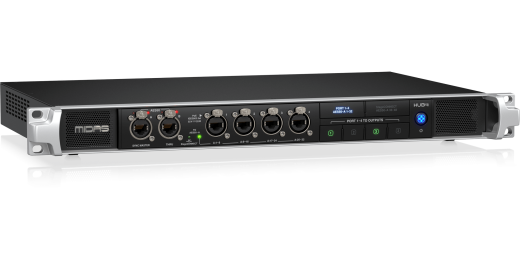

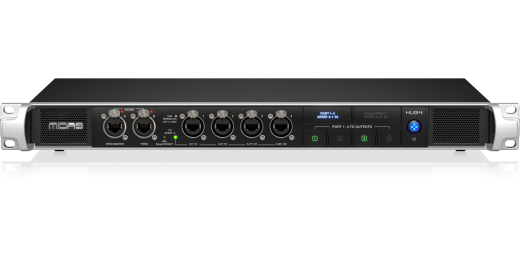

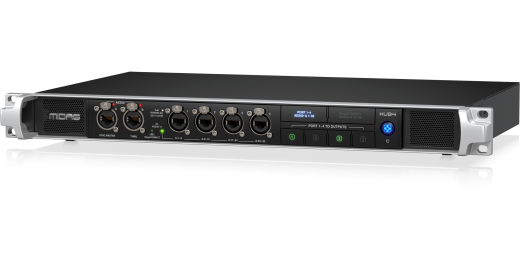

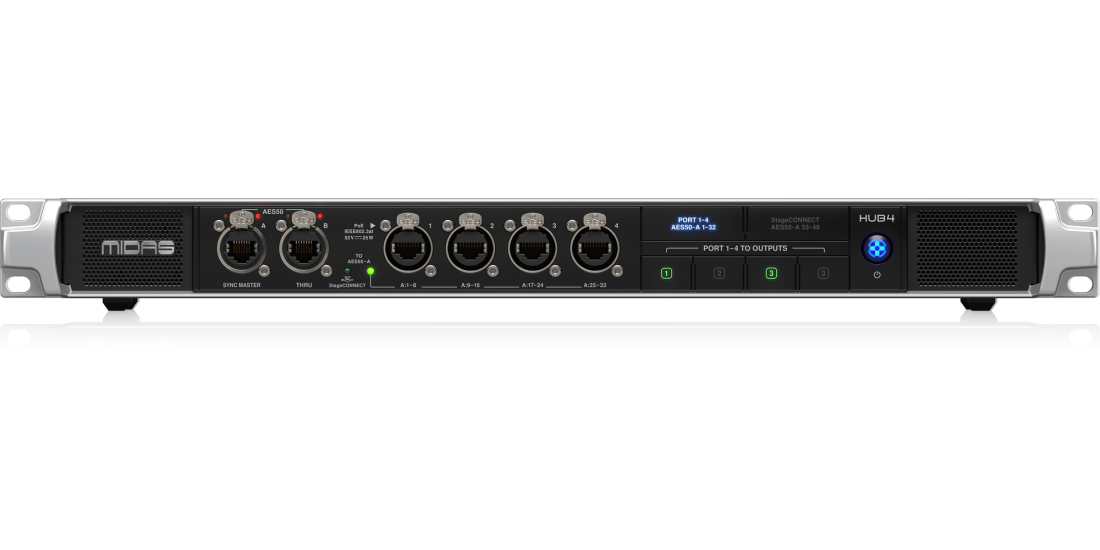

Midas Monitor System Hub with 4 PoE Ports for Personal Mixers or Compatible Stage Boxes
Additional Photos:
To meet the challenges of large monitoring setups, HUB4 can easily be daisy-chained to make additional DP48 ports available, all the way up to symphonic orchestra applications.
On the other hand, HUB4 can also address situations where you want to connect additional I/O via the same AES50 link to the mixing console. To help build out this AES50 console link, digital stage boxes such as the Midas DL16 or DL32 can be connected to the HUB4s AES50-B (THRU) Port. The console can pass downstream signals to their respective stage outputs, while also receiving 48 channels upstream from the stage inputs via HUB4.
Specifications

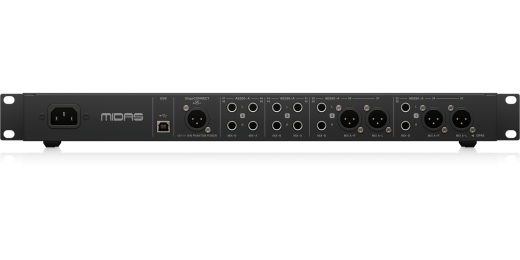

ConnectionsAES50 sync master / thru: 2 x RJ45
AES50 remote outputs: 4 x RJ45
Remote power: PoE (IEEE802.3at)
USB: Type B
StageConnect: 1 x XLR, male
Analogue outputs: 4 x XLR, balanced 12 x 1/4" TRS, balanced
Controls / Indicators
Power: 1 x blue LED (button)
AES50-A: 1 x green LED 1 x button LED, green/white
StageConnect: 1 x green / white (button) 1 x green LED (port active)
Ports 1 - 4: 4 x button LED, green/white
TO AES50-A: 2 x green LED
AES50 - A / B: 2 x green LED (good connection) 2 x red LED (error)
AES50
Audio channels: 48
Sample rate: 44.1 / 48 kHz
Sample word length: 24 bit
Clock synchronization: AES50 Sync Master
Latency: min. 70 s per node (AES50)
Cable: shielded CAT 5e
Cable length: max. 100 m (330 ft)
StageConnect
Audio channels in / out: 16 / 16
Sample rate: 44.1 / 48 kHz
Sample word length: 24 bit
Phantom power: +12 V DC / 18 W
Latency: 0.1 ms
Cable: XLR balanced, mic or DMX cable
Cable length: max. 40 m (132 ft) with DMX typ. 20 m with microphone cable
Power Supply, Voltage, Current Consumption
Switch mode power supply: Autorange, 100-240 V~50/60 Hz
Power consumption: 180 W
Mains connection: Standard IEC receptacle
