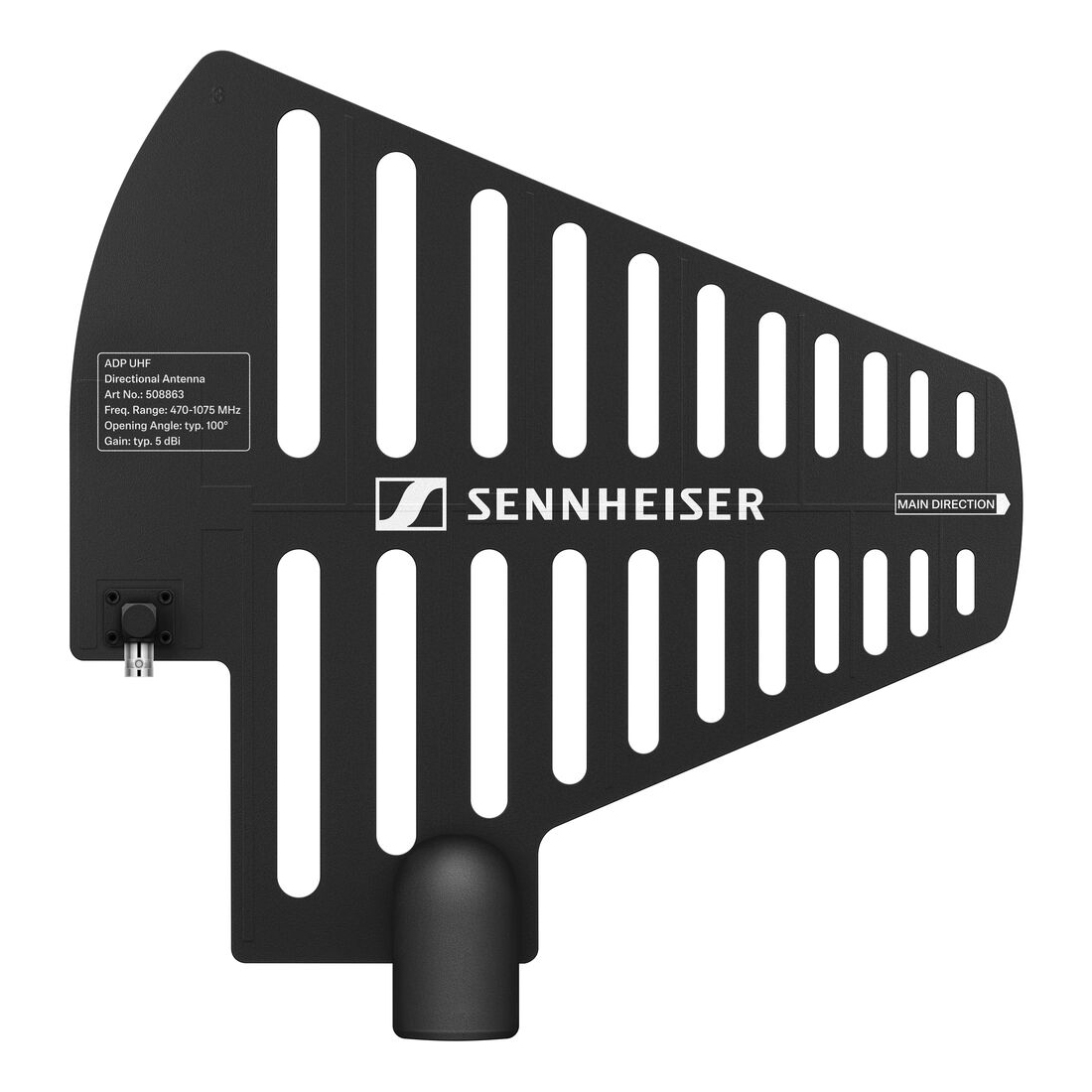

Sennheiser ADP UHF Passive, Directional External Paddle Antenna (470 - 1075 MHz)
Great Additions
Description
The ADP UHF passive directional antenna is the perfect addition for enhancing the wireless performance of your Evolution Wireless Digital system. The 5/8" and 3/8" threads make it easy to mount on any mic stand. The ADP UHF can be connected to the EW-D EM receiver, the EW-D AB antenna booster or EW-D ASA antenna splitter.
• UHF transmission greatly enhances range, reliability and scalability
• Built-in 5/8" and 3/8" threads allow for easy mic stand mounting
Frequency range: 470 - 1075 MHz
Apex angle (-3 dB): approx. 100°
Front-to-back ratio: > 14 dB
Gain typ.: 5 dBi
Impedance: 50 Ω
Connection: BNC female, no DC path
Threads for tripod mounting: 3/8" and 5/8"
Dimensions: 319 x 310 mm
Weight: Approx. 1100 g (2.43 lbs)
Operating temperature range: -10 °C - +55 °C (14 °F - 131 °F)
Storage temperature range: -20 °C - +85 °C (-4 °F - 185 °F)
Relative humidity max.: 95 % (non-condensing)
Features
• UHF transmission greatly enhances range, reliability and scalability
• Built-in 5/8" and 3/8" threads allow for easy mic stand mounting
Specifications
Frequency range: 470 - 1075 MHz
Apex angle (-3 dB): approx. 100°
Front-to-back ratio: > 14 dB
Gain typ.: 5 dBi
Impedance: 50 Ω
Connection: BNC female, no DC path
Threads for tripod mounting: 3/8" and 5/8"
Dimensions: 319 x 310 mm
Weight: Approx. 1100 g (2.43 lbs)
Operating temperature range: -10 °C - +55 °C (14 °F - 131 °F)
Storage temperature range: -20 °C - +85 °C (-4 °F - 185 °F)
Relative humidity max.: 95 % (non-condensing)
