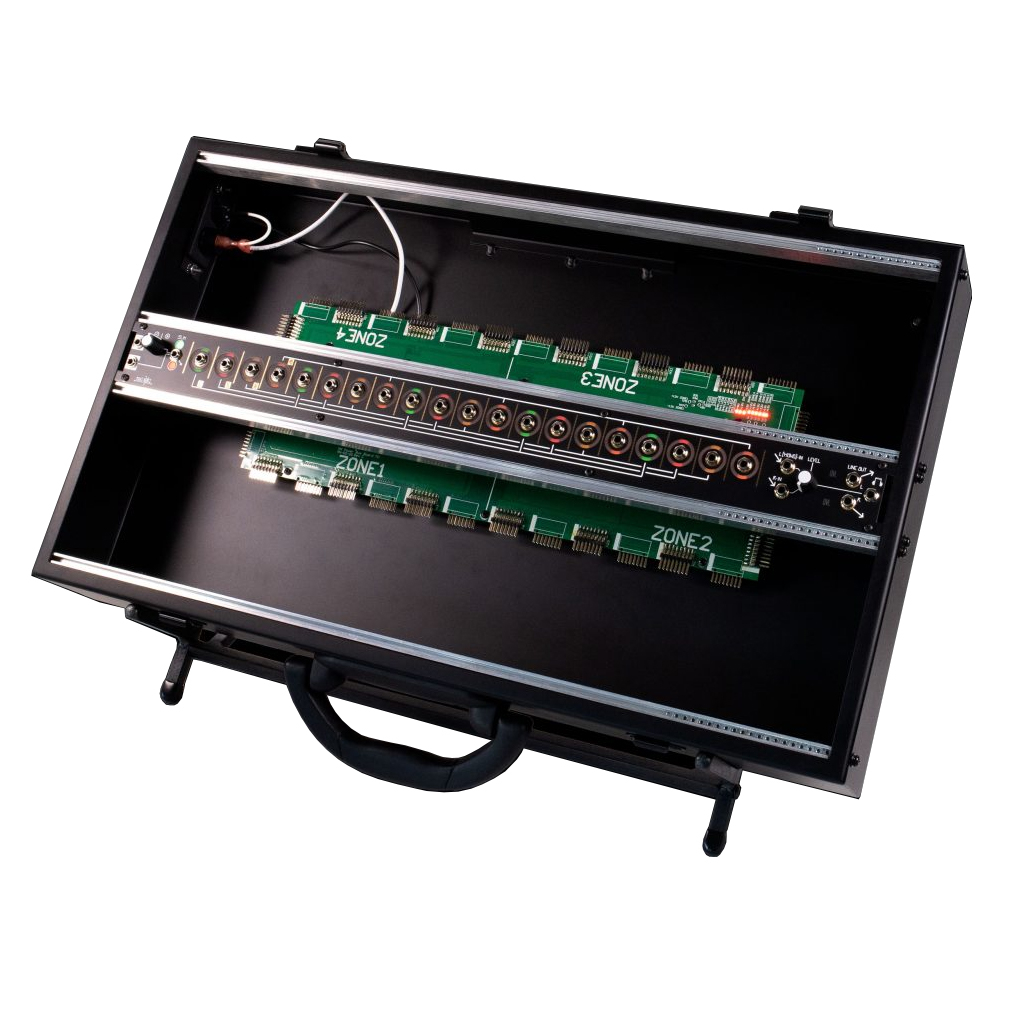

Make Noise 4 Zone CV Bus Case

This 104hp x 7U 4 Zone CV Bus Case arrives ready to use. Just add modules, patch cables and inspiration. The powder coated metal construction offers excellent mechanical durability. The lid is removable and can be closed with the system fully patched. The sleek matte black finish was selected to match the line of Black & Gold modules, and it looks great with just about any module installed. This finish will show the story of your modular synth's travels over the years.

The Make Noise 4 Zone Power Bus Board is a new approach to accommodating the ever growing universe of Eurorack modules. The multi-zone solution is like having 4 independent bus boards in a convenient single bus board package. Each Zone features isolated +12 VDC and -12VDC supplies and a dedicated ground return path. The +5VDC supply is shared amongst all 4 zones.

Features

• Two 104 hp 3U rows for Eurorack modules, One 104hp 1U row fitted w/ CV Bus
• Hybrid switched/linear power solution for low noise and excellent load regulation
• Multi-Zone, allowing isolation of noise-prone modules from noise-sensitive ones
• Black powder coated metal w/ embossed logo on lid
• Sealed to keep dust out during travel or storage
• Lid offers space to close w/ your system patched
• Recessed side mounted on/off switch and power inlet for safe travel
• Locking power connector helps prevent on-stage power loss accidents
• Solid carrying handle and rubber feet so the case travels w/ ease
• Meets carry-on luggage size requirements for most airlines
• Universal AC power adapter works world wide (Need IEC Cable for non-US outlets)

Specifications

- Size: 7U
- Total HP: 208 @ 3U, 104 @ 1U
- Outer Dimensions: 22.25" x 14" x 7.25" w/ lid
- Max Module Depth: 2.5"
- Weight: 12.75 lbs. (w/ powered bus board, CV Bus installed)
- Power: +12VDC @ 4A, -12VDC @ 2.4A and +5VDC @ 1A
- Connectors: 32
- Includes: CV Bus, Powered Bus Board, 120 Sliding M2.5 nuts w/ Black screws, AC Adapter
