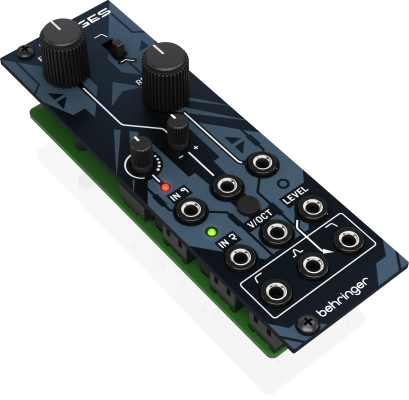

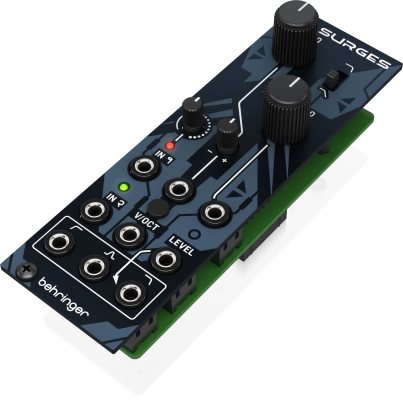

Behringer Surges “Liquid” Multi-Mode Filter for Eurorack

Let your riffs, beats and patches flow like water with the Behringer SURGES multi-mode filter Eurorack module!

SURGES is a voltage controlled filter capable of high-pass, band-pass and low-pass output, with additional 2-pole or 4-pole settings for band- and low-pass.

SURGES is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. Mix SURGES with other modules in your setup and start creating unique sequences that add a whole new dimension to your sound.

Specifications

Inputs
Audio Input 1
3.5 mm TS jack, impedance 100 kΩ

Audio Input 2
3.5 mm TS jack, impedance 100 kΩ
Frequency CV: 3.5 mm TS jack, range -8 V to +8 V
Resonance CV: 3.5 mm TS jack, range -8 V to +8 V
Volt/octave: 3.5 mm TS jack, range -3 V to +7 V
LPF output level: 3.5 mm TS jack range 0 V to +7 V

Outputs
High Pass Filter: 3.5 mm TS jack, impedance 1 kΩ
Band Pass Filter: 3.5 mm TS jack, impedance 1 kΩ
Low Pass Filter: 3.5 mm TS jack, impedance 1 kΩ

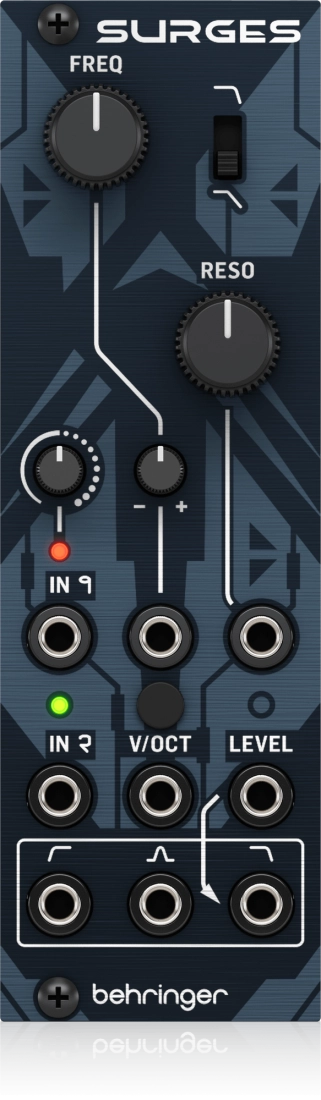

Controls
Frequency
Resonance
Frequency CV Attenuverter
Input 1 Gain
Switches: Filter Slope
