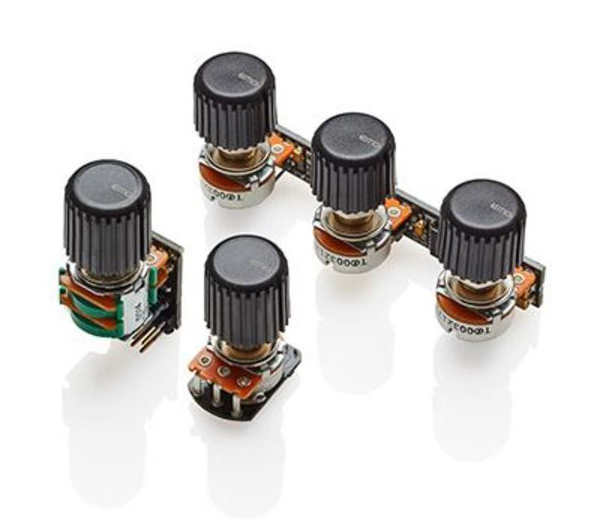

EMG B64EQ System 3-Band EQ for Bass Guitar

The B64EQ System is designed for contouring the bass, mid and treble frequencies of bass guitar. The B64EQ has a tighter filter bandwidth and has more of a pronounced effect from each control than the B30EQ. The mid-cut of the B64EQ is perfect for "funk" with its mid-range centered at 600 HZ. Both the bass and treble controls of the B64 have tighter bandwidth and don't creep into the mid-range as much as the B30EQ. The B64EQ system is paired with passive Volume and Blend pots, perfect with your EMG active pickups. These EQs have been a favourite of top Bass builders for years, now available direct to you.

Specifications

Input Impedance (Ohms): 500K Ohm
Gain/Attenuation/ Frequency Bass Control: +/-10db/30Hz
Gain/Attenuation/ Frequency Mid Control: +/-10db/600Hz
Gain/Attenuation/ Frequency Treble Control: +/-12db/6KHz
Input Referred Noise: -120dbV
Output Impedance (Ohms): 2K Ohm
Supply Voltage: 9 Volts
Current @ 9V/18V: 740uA / 1.7mA
Battery Life (Hours): 375
Maximum Supply (Volts DC): 27 Volts
