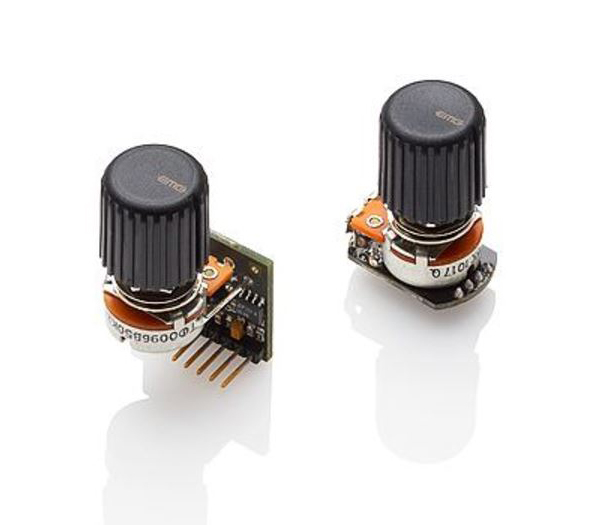

EMG BTS Control 2-Band Equalizer for Bass Guitar

The BTS Control is a 2-band equalizer for Bass guitar. The BTS features single-pole filters for broadband equalization. Often the broader single-pole filters are preferred for musical instruments because they are less selective, easier on the ear, and sound more "musical".

One of the features of the BTS Control is a 2-position dip-switch that controls the slope of the high frequency response. By choosing one of the four combinations the high frequency response can be tailored to your liking. The BTS Control has a high input impedance and can be used with active or passive pickups. Bass and Treble controls are mounted on separate potentiometers and knobs are included.

In The Box

- 1 BTS Control
- 2 Extra Knobs
- 1 Stereo Output Jack (Battery Switching)
- 1 Battery Clip with Buss Connector
- 4 Interconnect Cables (2 Red, 2 White)

Specifications

Input Impedance (Ohms): 1 MegOhm
Gain/Attenuation/ Frequency Bass Control: +/-12db/20Hz
Gain/Attenuation/ Frequency Teble Control: +/-12db/(Adjustable)
Input Referred Noise: -120dbV
Output Impedance (Ohms): 2K
Recommended Supply Voltage: 18 Volts
Current @ 9V/18V (Microamps): 600/740
Battery Life (Hours): 750
Maximum Supply (Volts DC): 27 Volts
