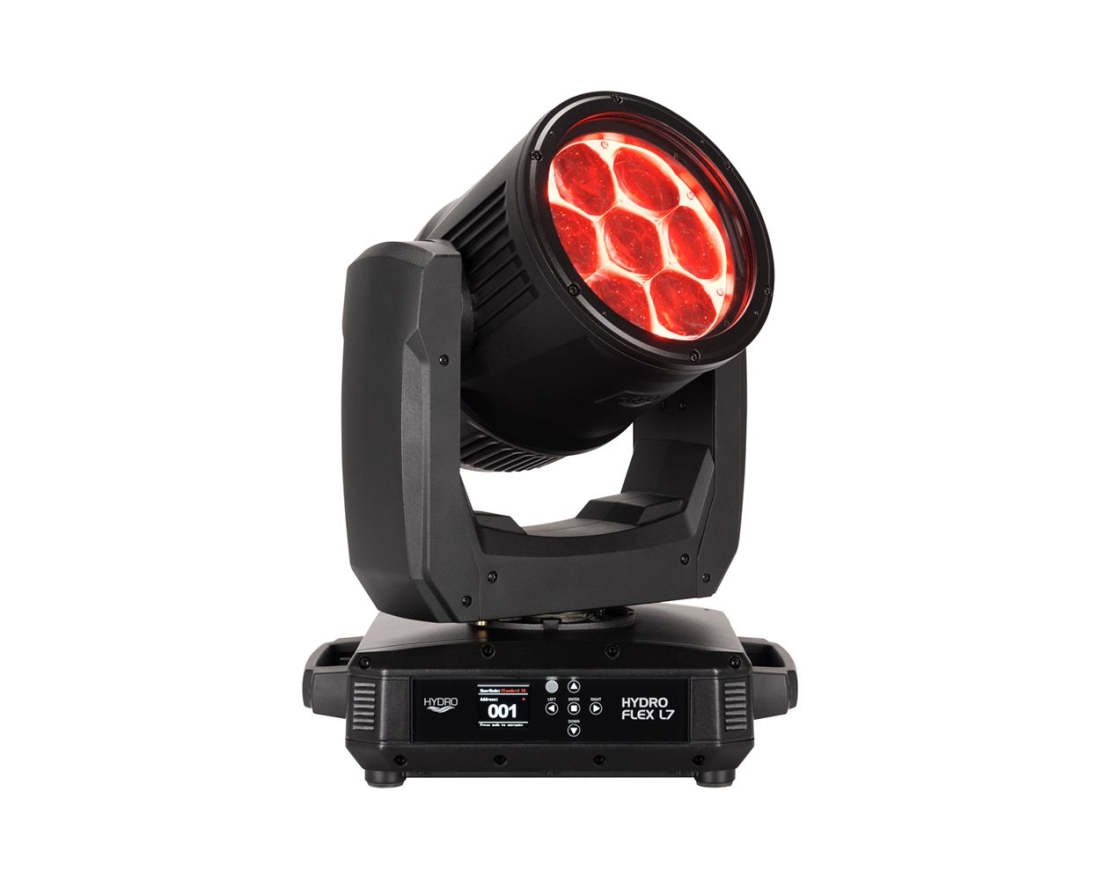

American DJ Hydro Flex L7 Professional Moving Head Wash Fixture
Additional Photos:
Features
• Moving Light Pixel Wash• Individual Pixel Control
• Built-In Pixel Effect Programs
• Aria X2 Wireless Management System
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 243
• Motorized Zoom
• Beam Angle: 4° ~ 38°
• Field Angle: 6° ~ 54°
• Colour Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Fan Cooled
Specifications
Source7 x 60-Watt RGBL LEDs (50,000 hr.)
CRI: TBA
TM30 Rf: TBA
TM30 Rg: TBA
Colour Temperature: 2700K ~ 10,000K
Lumens: 5,600 (Zoomed Out, Full On)
Colours
7x RGBL LEDs (Red, Green, Blue and Lime)
Virtual CMY DMX Control Modes
Virtual Foreground and Background Colour Wheel Control
Built-In Colour Macros
2,700K ~ 10,000K Linear White Colour Temperature Control
Colour Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
Control
8 DMX Modes - 16/25/34/42/50/26/ 25(CMY) / 28(CMY) Channels
Colour LCD display with 6-button function menu
Control: DMX512, ArtNet, sACN, KlingNet and Aria X2 Wireless Management System
Built-In Effect Pixel Programs with Speed and Fade Control
RDM (Remote Device Management) compliant
With Wired Digital Communication Network
Pan/Tilt
Pan: 540/630 degrees
Tilt: 243 degrees
16-Bit Fine Pan & Tilt
Pan & Tilt Locks
Connections
DMX Connections: IP65-rated Locking In/Out XLR Sockets
IP65-rated Locking In/Out RJ45 Network Sockets
Power Connections: IP65-rated Locking In/Out Power Sockets
Electrical
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 530W (4.48Amps) @ 120V. 516W (2.42Amps) @ 220V.
