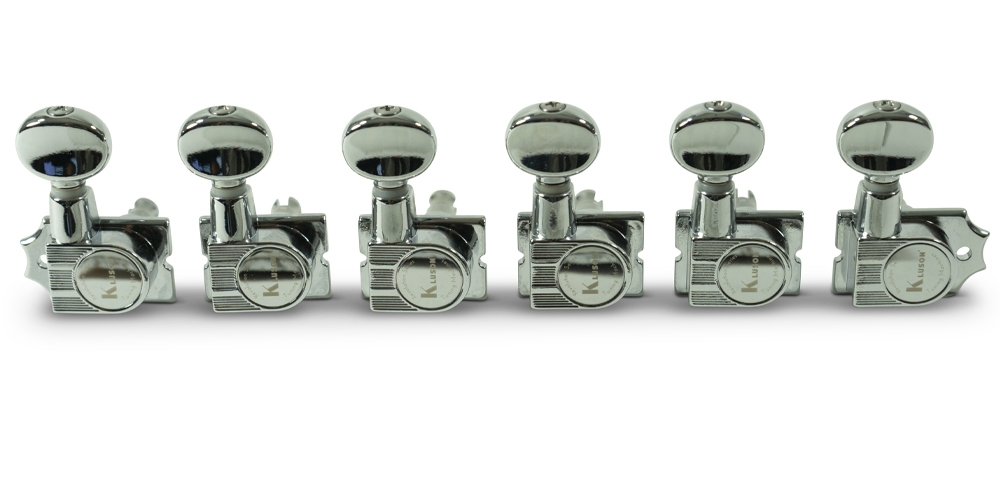

Kluson 6 In Line Revolution Series H-Mount Tuning Machines with Staggered Posts - Chrome

The Kluson® Revolution H-Mount 19:1 high ratio tuning machine. A traditional 6 in line footprint with contemporary sealed diecast housing. These state of the art tuning machines are designed to directly retrofit diecast tuning machines with a hex head (bolt) bushing, traditional Kluson® 6 in line mounting pattern and modern 25/64 inch peghole. The vintage outline, metal oval button and pinstripes pay tribute to Kluson® heritage while the stylized one-piece housing encloses the features that modern guitarist demand. A 19:1 high gear ratio guarantees silky smooth operation and fine tuning stability with no backlash.

Includes 6 in line tuning machine set for right handed instruments and all mounting hardware. Newly upgraded with staggered post heights. Staggered posts negate the need for a traditional string tree. By eliminating the string tree, the break point created on the string before the nut is also removed; increasing string life, resonance, and tuning stability.

Specifications

- Peghole size required: 25/64 in. (10mm)
- Gear ratio: 19:1
- Bushing Type: Screw-in Hex Head
- String Post Type: Staggered Kluson SafeTi Post
- String Post Diameter: 1/4"

String Post Heights
- (2 Machines) 18mm
- (2 Machines) 19mm
- (2 Machines) 20mm
