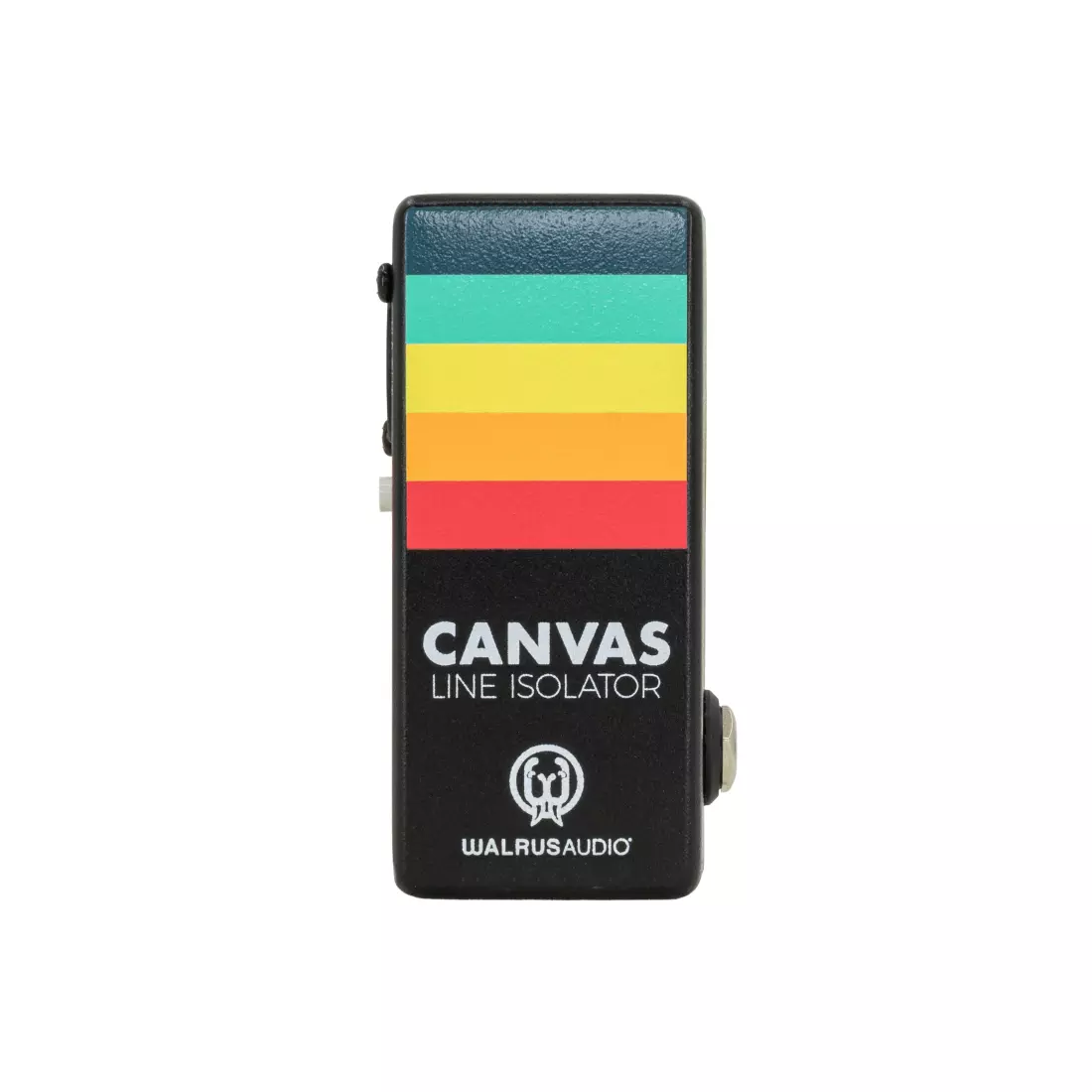

Walrus Audio Canvas Nano Line Isolator
Additional Photos:
Canvas Nano is a passive device that converts your unbalanced signal into a balanced signal for interfacing properly with your recording interface or mixer at front-of-house. If youre using an amp-in-a-box (DSP Guitar Rig), like Walrus' ACS1, or running an active acoustic or active bass guitar direct, then the Canvas Nano is your new bridge to the front-of-house. The signal will remain at full volume and be converted to a balanced signal via the transformer connected to the XLR output. Less preamp gain will be required in LI mode. The Canvas Nano packs everything you need from a LI into a compact enclosure designed to look great right on top of your board.
Features
• Compact design perfect for tight pedal board layouts or small fly rigs.• Flat frequency response from 20Hz-20kHz

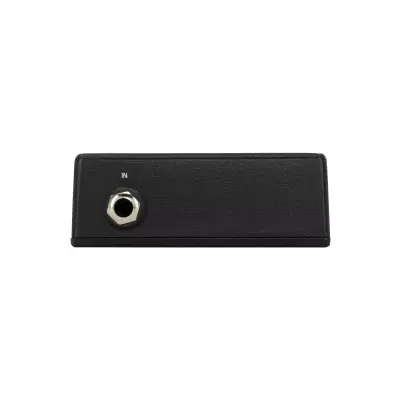

• Converts 1/4" unbalanced input to XLR balanced output.
• Transformer isolated output.

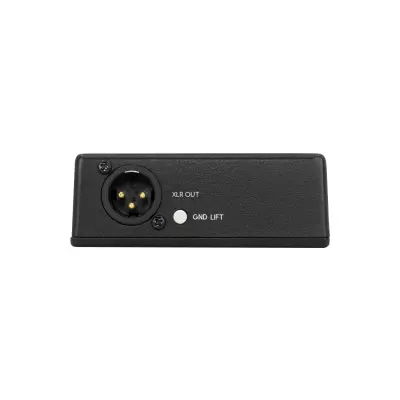

• GND Lift: Isolates the GND pin on XLR to help reduce hum if present. Leave out for normal operation.
• Custom wound transformers for low THD (Total Harmonic Distortion) and full frequency response.
• Passive device, no power source required.
Specifications
Canvas Nano comes in a lightly textured matte black enclosure with blue, light green, yellow, orange, red, and white ink.Impedance: DI - 10k input, 600 output
LI - 600 input, 600 output
