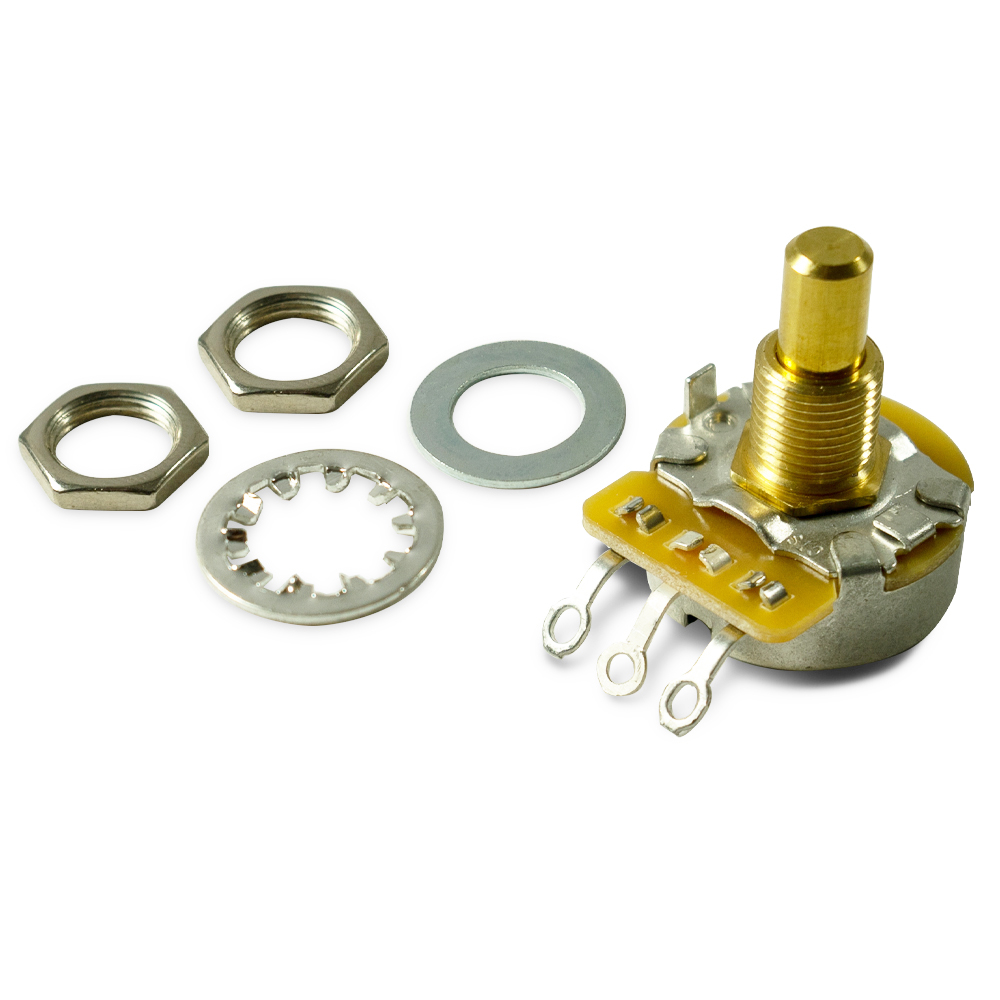

WD Music CTS Electrocomponents and WD Custom Modified Series 450 Potentiometer 9% Tolerance - 550 kohm

WD Music Products® developed this high-quality potentiometer with CTS® to offer you exceptional performance in electronics for your instrument. These are NOT the same CTS pots that other companies stock and sell. These are developed using +9% tolerances and a value at 10% over the standard ohms rating (275 kohms for 250, and 550 kohms for 500). This ensures not only optimum performance, but guarantees your potentiometers will always be at least the value stated.

Compared to many others using 20% tolerances (where you can be over spec, but in most cases far below). These specifications ensure good tone from your pickups. WD also added brass components and a high quality wiper versus what comes standard on most run of the mill potentimeters to ensure long life, quality and consistent performance.

Specifications

Measurements
- Tolerance: +9%
- Can Size: 15/16 in. radius X 3/8 in. height
- Bushing Threads: 3/8-32
- Hole size requirement: 3/8 in.

Resistance
- 550 kohm

Shaft
- Solid Shaft

Bushing Length
- Standard Bushing 3/8 in.
