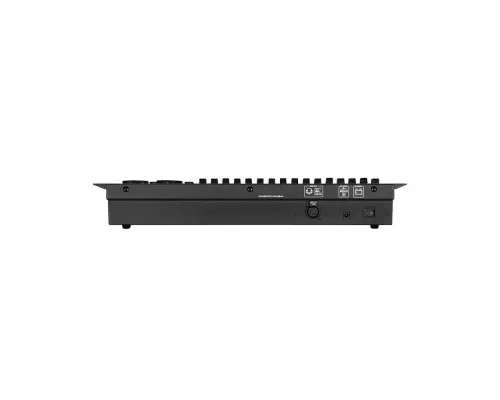

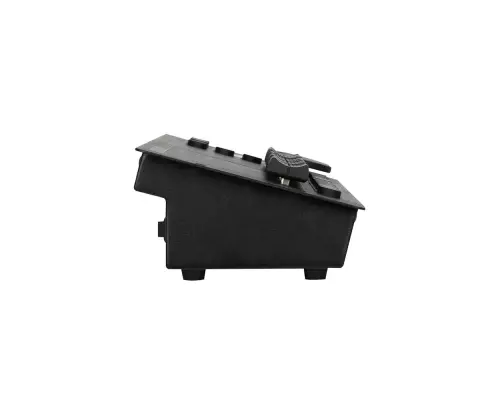

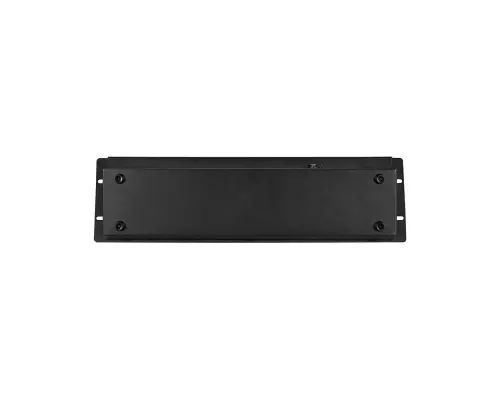

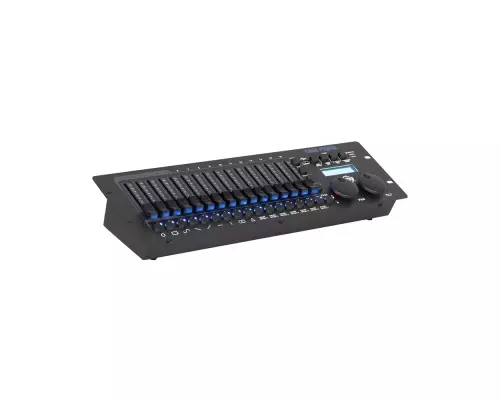

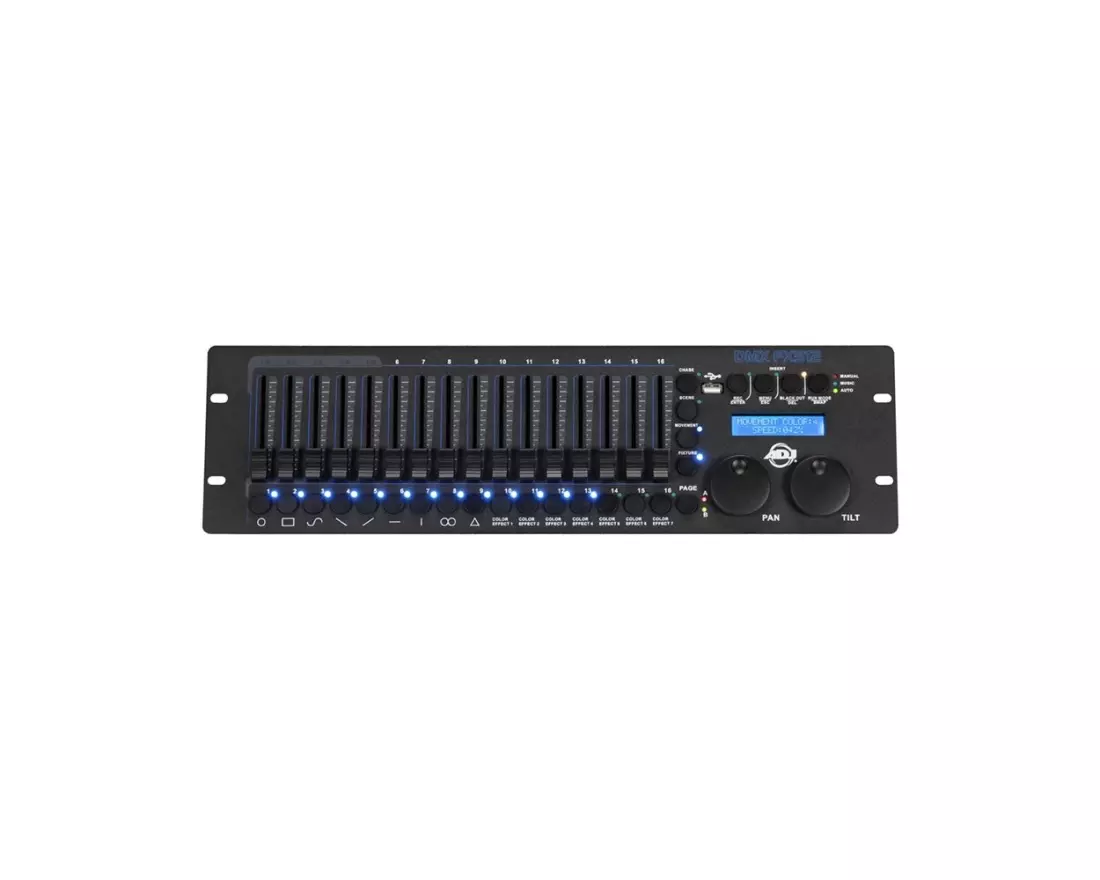

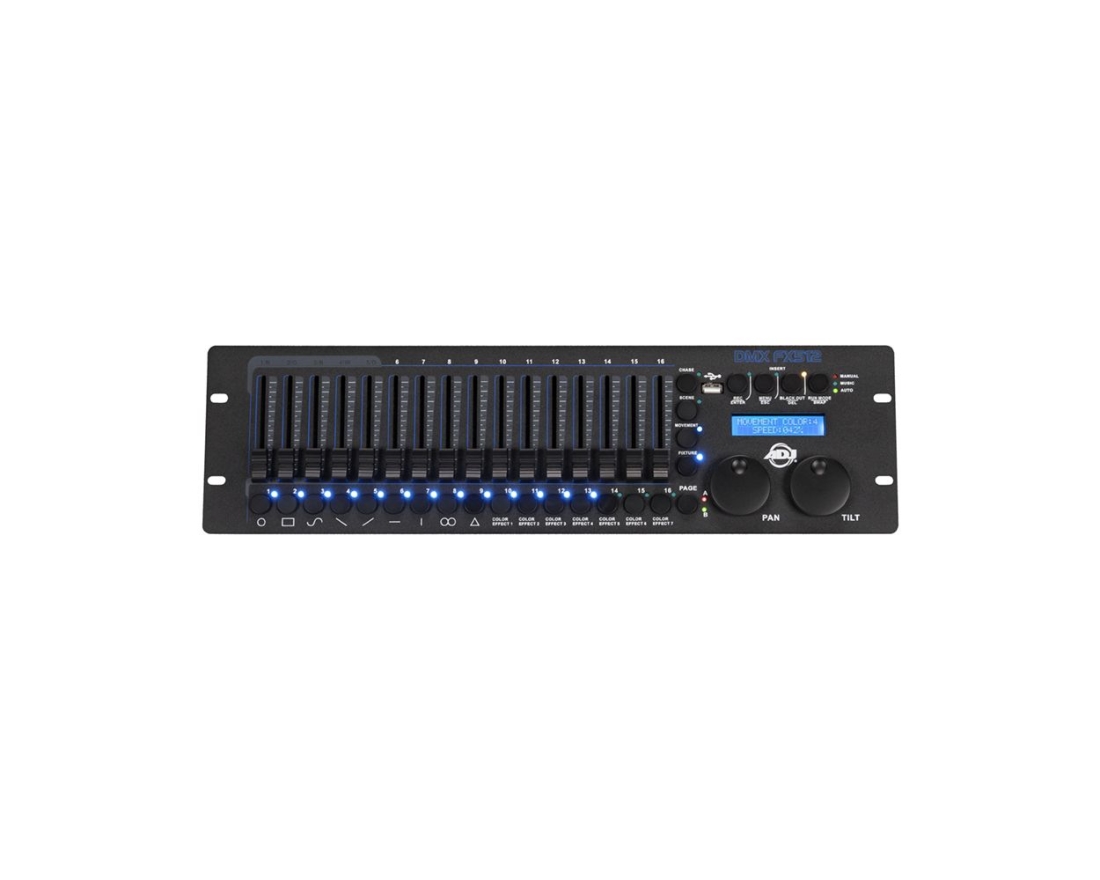

American DJ DMX FX512 Rackmount Controller

SKU: # 824344   |   Model: # DMX-FX512   |    Product Reviews0 Reviews  Write a Review

DMX FX512 Rackmount Controller

Additional Photos:

DMX FX512 Rackmount Controller
DMX FX512 Rackmount Controller
DMX FX512 Rackmount Controller
DMX FX512 Rackmount Controller
Your Price: $289.99 CDN
or from $43 CDN/mo
Notify Me

Buy Online

 Add to Cart

Buy In-Store

The ADJ Lighting DMX FX512 is a 3-space, 19-inch rack mount controller for both moving heads and LED pars with 16 effects generators and 512 channels. Its compatible with DMX and RDM protocols.

Features

• 19-inch rack-mount DMX Controller
• DMX 512 & RDM protocol.
• 512 DMX channels.
• Control up to 32 intelligent fixtures, up to 18 channels each
• 32 chases, each up to 100 steps, can run 5 chases simultaneously
• 32 programmable scenes
• Soft-patchable faders & control wheels
• 16 built-in effects generator. 9 for moving light and 7 for RGB LED fixtures
• USB for data backup and firmware update.

Specifications

DMX512 and RDM
RDM to set the DMX addresses and DMX channel mode of the fixtures from controller
16 channel control faders
Dedicated Pan/Tilt wheels (User Assignable)
16 Effects / Fixture select buttons
Sound sensitivity digitally adjustable (0%-100%), built-in Mic.
With Wired Digital Communication Network
5pin XLR DMX Output
Power Supply Input
USB A Port
Power Supply: DC9V 12V 300mA min. (DC9V 1A PSU Included)
Power Consumption: DC9V 165mA 1.5W, DC12V 16mA 2W

Q & A


There are currently no questions for this product.

Reviews


There are currently no reviews for this product. Be the first to write one!
