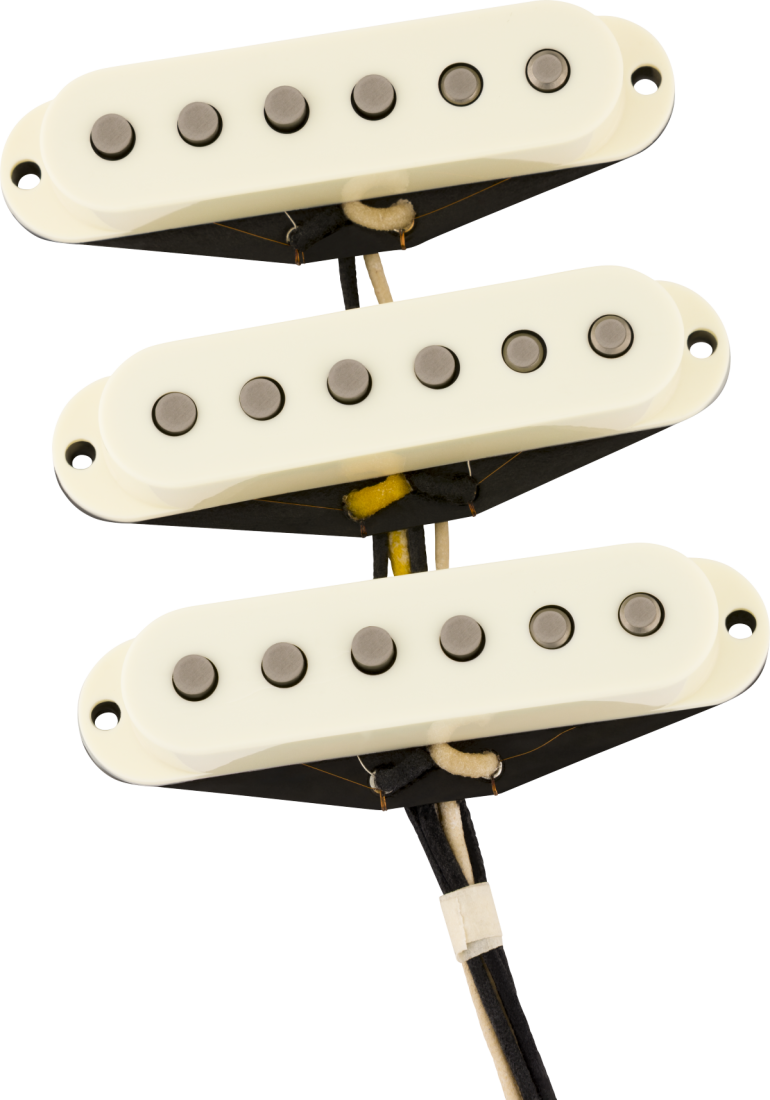

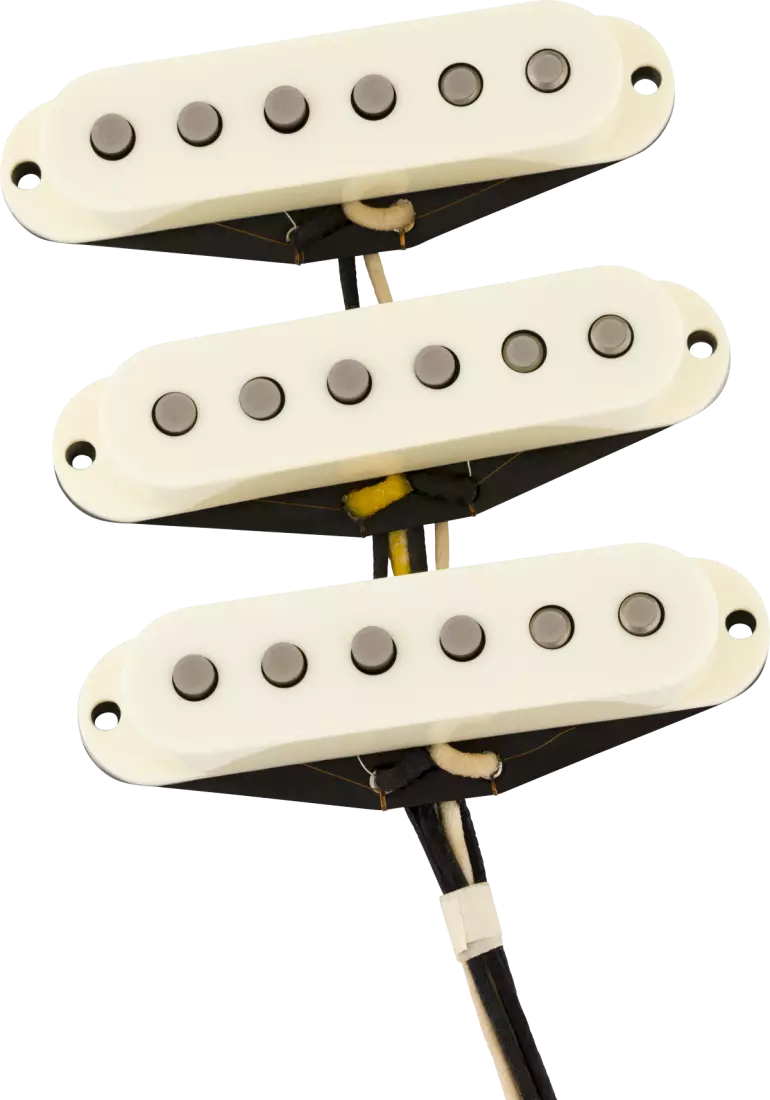

Fender Custom Shop Josefina Handwound Dual Mag II Stratocaster Pickup Set

Hand wound in the Fender® Custom Shop by Master Pickup Winder, Josefina Campos, the Dual-Mag II Strat® pickups produce well-balanced tone with shimmering, clear highs and balanced, rich lows courtesy of a mix of alnico 2 and 5 magnets. Featuring unbeveled alnico 5 magnets from the low E through G and hand-beveled alnico 2 magnets for the B and high E. Each pickup is wrapped with copper shielding tape to reduce noise.

Featuring a custom stagger with a "low G" magnet that provides a smooth transition from the wound to plain strings. The alnico 5 beneath the G makes that string "sing" just right and the alnico 2 B&E magnets are slightly taller than vintage spec to help create string-to-string balance. The Dual Mag II Strat® pickup is quite faithful to its name with two magnets that give you one of the clearest, most well-balanced sounds you'll ever hear.

Features

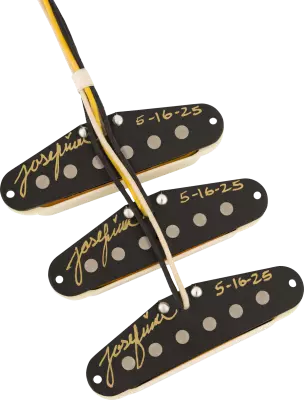

• Hand Wound by Josefina Campos
• Alnico 5 on low E through G and hand-beveled alnico 2 on B and high E
• RWRP middle pickup to eliminate hum in positions 2 and 4
• Formvar-coated magnet wire improves overall brightness
• Wrapped with copper shielding tape to reduce noise
• Cloth wire and fiber bobbin
• Signed certificate of authenticity
• Includes installation hardware

Specifications

- Pickup Configuration: SSS
- Lead Wire: Cloth-covered
- Magnet Type: Alnico 2 and 5
- Magnet Wire: Formvar-coated
- Pole Pieces: Staggered
- Bobbin Material: Fiber
- Output: Moderate
- DC Resistance: Neck: 5.85k, Middle: 5.9k, Bridge: 5.95k
- Inductance: Neck: 2.65H, Middle: 2.72H, Bridge: 2.84H
