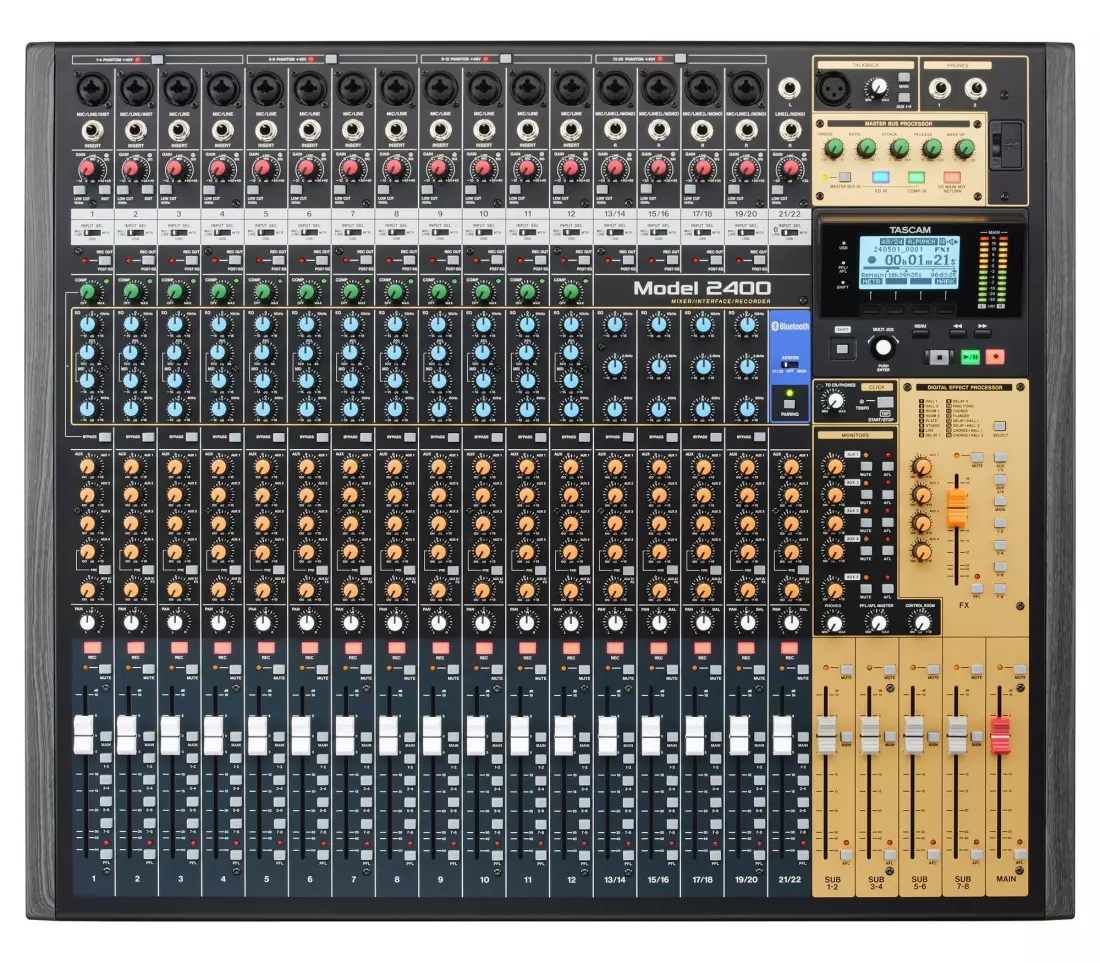

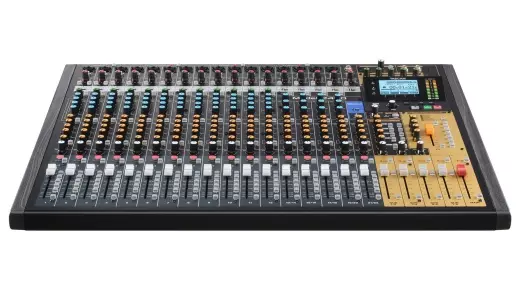

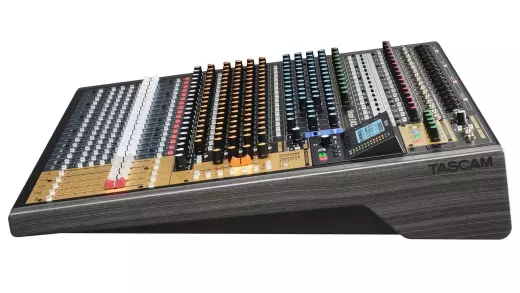

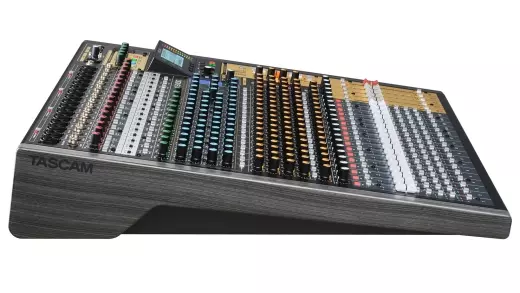

Tascam 24-Track Flagship Analog Recording Console and Live Mixer with Audio Interface

Streamline Your Mix Process with Advanced Onboard Processing
The Model 2400's versatility doesn't compromise its mixing capabilities one bit. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you'll have the pro-level mix control you need in any scenario. Taking your project from tracking to a final master on the Model 2400 couldn't be simpler.

22 Channels and 24 Tracks, One Solution
With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.

Insert Professional Processors and Effects
Insert points on channels 1-12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.

Ample Aux and Sub Outputs
With 5 Aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects. Connect multiple pairs of studio monitors for checking your mixes. In your studio or on stage, Model 2400 delivers the comprehensive connectivity and routing you need.

Professional Recording Capabilities
Model 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 channels (22 inputs plus the stereo master) of high-quality audio direct to SD card media, Model 2400 is a powerful recording solution even if youre a DAW-less producer.

Features

• 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
• 24 in / 22 out USB audio interface
• 22 analog input channel modules with 16 XLR Mic Pre-amps, utilizing TASCAM ultra HDDA Mic Pre-amp technologies and a one knob compressor (Ch 1-12)
• Equipped with input inserts (SEND/RETURN) on channels 1 - 12
• 5 Aux (4 Aux plus internal FX) sends, 4 stereo sub group and Main L/R
• MIDI in/out allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control
• DAW transport control and REC READY control via HUI/MCU
• Dedicated Settings Panel application with Meter bridge
• Selectable send Pre/Post EQ routing for Recording
• Ch compressor and EQ bypass function available for MTR and USB return
• Phantom Power (+48V) selectable ingroups of 4 channels
• 100Hz Low-cut Filter (Ch 1-12)
• 3 Band EQ (Ch 1-12: sweep-able mid-range frequency)
• Dedicated 100mm fader (Ch 1-22, stereo Sub1-4 and MAIN L/R)
• Internal 4 band EQ and master compressor on Main bus
• Equipped with inserts (SEND/RETURN) on Main bus
• PFL/AFL function with LED indication in all input / output modules

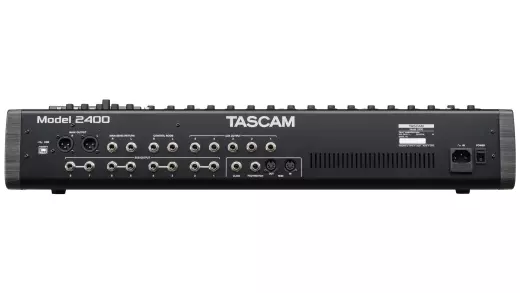

• MAIN outputs L/R via XLR balanced; TRS 1/4" outputs via Sub 1-8, Aux 1-5 and Control Room output
• 2 Phone outputs
• Talkback XLR microphone input
• 16 TASCAM on-board studio quality Effects such as reverb, delay, chorus with fader control
• Bluetooth® input supporting both AAC and SBC codecs
