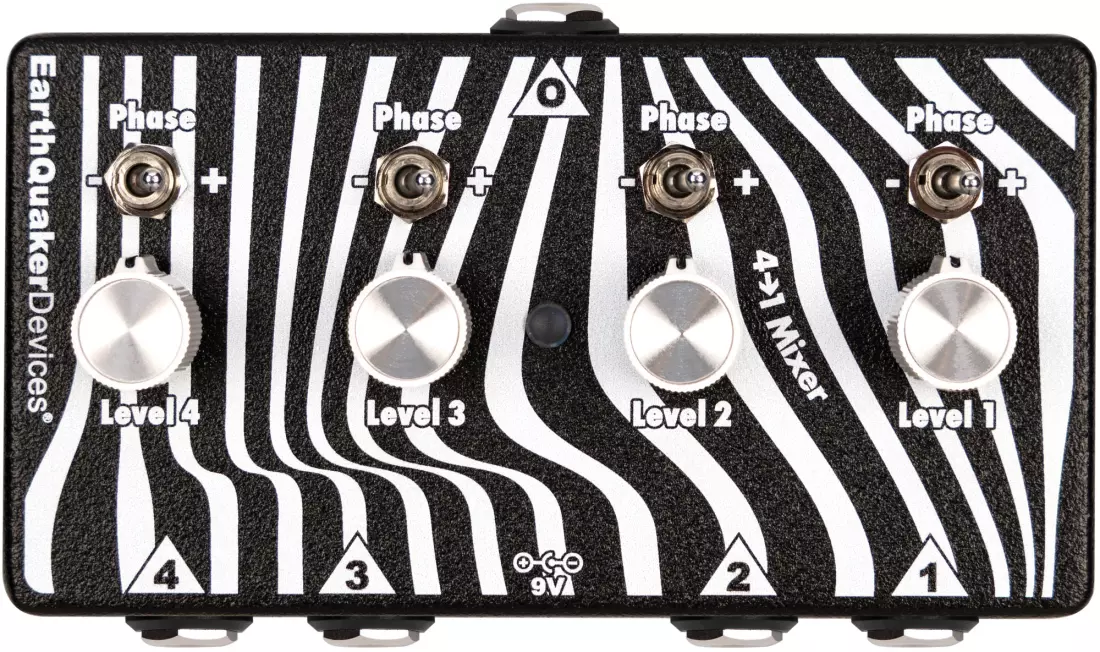

EarthQuaker Devices Four to One Mixer
This high headroom device features a high 1 Mohm input impedance and a low 100 ohm output impedance ensuring all signals maintain their sonic integrity throughout their journey, even on long cable runs. The high headroom input impedance of this device allows it to accept a variety of instruments without distortion or clipping. This was built to handle just about anything, including guitars, basses, synthesizers, drum machines, and more!
Phase selector switches for each channel will make sure to correct any issues you might have from mixing multiple different signals with opposing polarities. Sometimes mixes can sound out-of-phase, leaving the resulting signal sounding thin or tinnier. Adjusting the Phase on the Four to One Mixer will help you avoid these issues. When used in conjunction with the Four to One Splitter and our Flexi Loops™, you can create wild parallel signal paths at the flip of a switch! Use it to mix 4 instruments into one amp! Run four synths into a single channel! Put the whole band through your wall of amps! The possibilities are still nearly endless.
Phase -/+: Use this to select the output phase of the channel. Sometimes other pedals and various instruments will invert the phase of the signal, which causes major problems when mixing with other non-inverted signals. If you have a signal that is inverted, flip the phase switch to "-" and the polarity will be corrected. In most cases, this switch should stay in the "+" position.
Specifications
- Level: Adjusts the output volume of the channel.- Dimensions: 4.75 x 2.5 x 1.5 in. (12.065 x 6.35 x 3.81 cm)
- Weight: 0.67 lbs. (0.30 kg)
- Input impedance: 1 MΩ
- Output impedance: 100 Ω
- Power: 9V DC Only
- Current Draw: 50 mA
