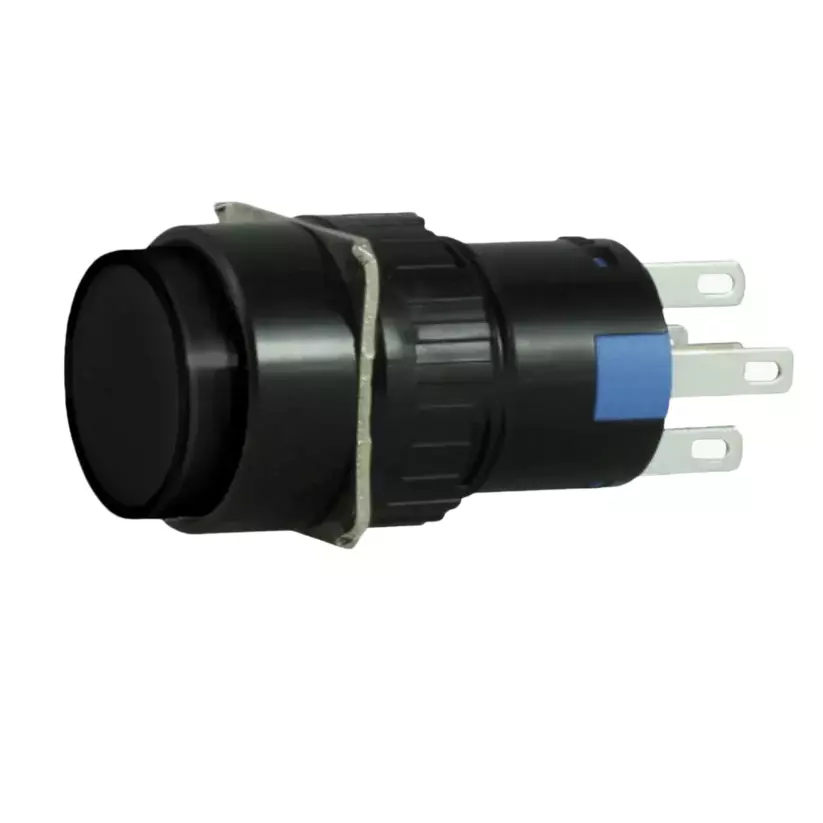

All Parts TESI SWITCH EVH Style Momentary Kill Switch - Black
Introducing the EVH Style Momentary Kill Switch. You're getting a tough switch that will last a long time in your instrument and will look good doing it!
- Operation Type: Normally Open
- Housing Material: Plastic
- Mounting hole Size: 16mm
- Mounting Panel Thickness: 1mm-6mm
- Operation Pressure: About 5n
- Operation Stroke: About 3mm
- LED Rated Voltage: 6V (includes wires to use with 9V battery and additional resistors in case you want to get creative with the wiring)
- LED Life: About 40,000 hours
- LED Power Draw: 15mA
- Contact Resistance: 50 mOhm
- Mechanical Life: 1,000,000 cycles
- Switch Rating: 3A/36VDC
- (1) Black/Black ground wire
- (1) Black/White hot wire
- (1) 9V Battery Harness with 330 Ohm resistor
- (1) On/Off Rocker Switch
Specifications
- Type: Momentary Push Button Switch- Operation Type: Normally Open
- Housing Material: Plastic
- Mounting hole Size: 16mm
- Mounting Panel Thickness: 1mm-6mm
- Operation Pressure: About 5n
- Operation Stroke: About 3mm
- LED Rated Voltage: 6V (includes wires to use with 9V battery and additional resistors in case you want to get creative with the wiring)
- LED Life: About 40,000 hours
- LED Power Draw: 15mA
- Contact Resistance: 50 mOhm
- Mechanical Life: 1,000,000 cycles
- Switch Rating: 3A/36VDC
Includes
- (1) Tesi NELLI 16mm Momentary Guitar Kill Switch - This is the size used on the Wolfgang Tour Guitar- (1) Black/Black ground wire
- (1) Black/White hot wire
- (1) 9V Battery Harness with 330 Ohm resistor
- (1) On/Off Rocker Switch
