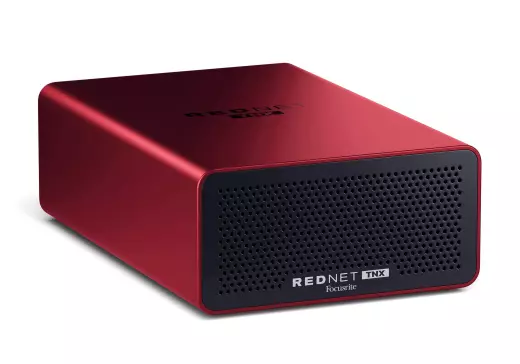

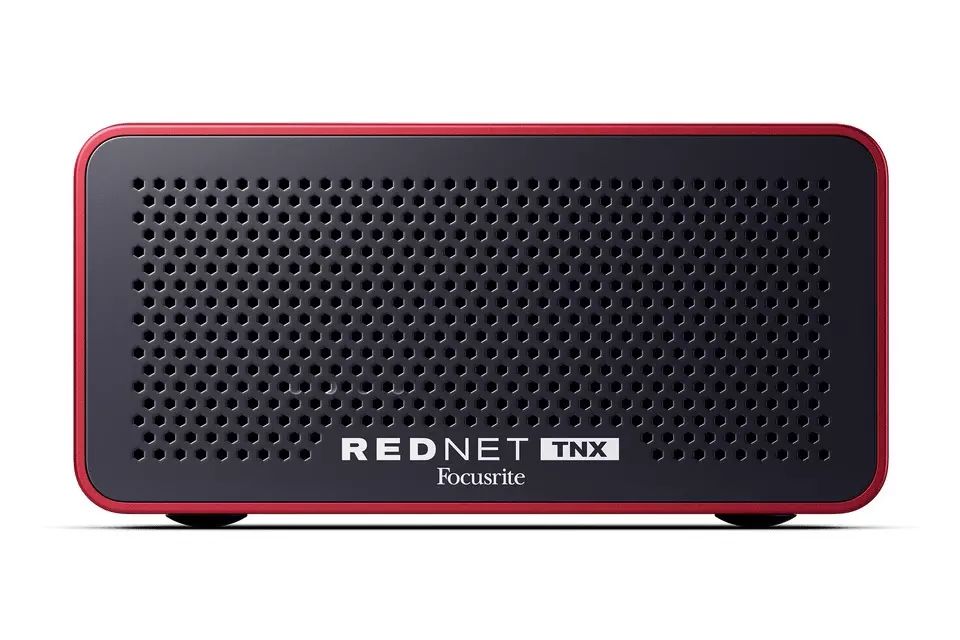

Focusrite RedNet TNX Portable Low Latency Thunderbolt and Dante Interface
Additional Photos:
Installation is simple and secure, thanks to rack-mount compatibility, Sonnet ThunderLok™ support, and integrated M5 mounting points. Whether you're working in a fixed studio, an educational facility, or a mobile environment, TNX adapts to your setup.
Broadcast-ready AoIP support
RedNet TNX is fully compatible with AES67 and SMPTE ST 2110 (with DDM), making it suitable for broadcast facilities and production houses moving to IP-based audio systems. Its small footprint and Thunderbolt connectivity make it just as effective on location as it is in the control room.
Key Features
• 128x128 channels at 24-bit/192kHz with ultra-low latency
• Dante Ready™ upgrade: 256x256 channels at 24-bit/96kHz
• Thunderbolt™ connectivity for macOS and Windows (Intel & Apple Silicon)
• Dual Thunderbolt ports with 15W charging and daisy-chaining
• Dual Ethernet ports for switched or redundant Dante modes
• Audio and control over a single network cable
• AES67 and SMPTE ST 2110 compliant (DDM required)
• Rack-mountable with Sonnet ThunderLok™ support
• Compatible with RedNet Control software
What's in the box
- RedNet TNX unit
- 2m Thunderbolt™ 3 cable
- 2m cat6A Ethernet cable
- External DC power supply and cable
Specifications
Simultaneous Inputs & Outputs
128x128 (all sample rates)
256x256 (up to 96kHz) with a paid upgrade
Digital Performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
Dante Connectivity
2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
Driver Compatibility
Multi-client ASIO and WDM (Windows)
CoreAudio (Mac)
Rear Panel I/O
2x Thunderbolt™ 3 ports (Provide 15W of power)
2 x Sonnet ThunderLok™
2x Network Active LED indicators (Primary/Secondary)
2x Network Lock LED indicators (Primary/Secondary)
1x DC power inlet
1x Factory Reset button
Heat Performance
Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit
Miscellaneous
Exposed threads for rack shelf/cradle mounting
Dimensions
Width: 144mm (5.67")
Depth: 212.4mm (8.36")
Height: 71.6mm (2.82")
Weight: 1.49kg (3.3 lbs)
Power requirements
Powered by external DC power supply
