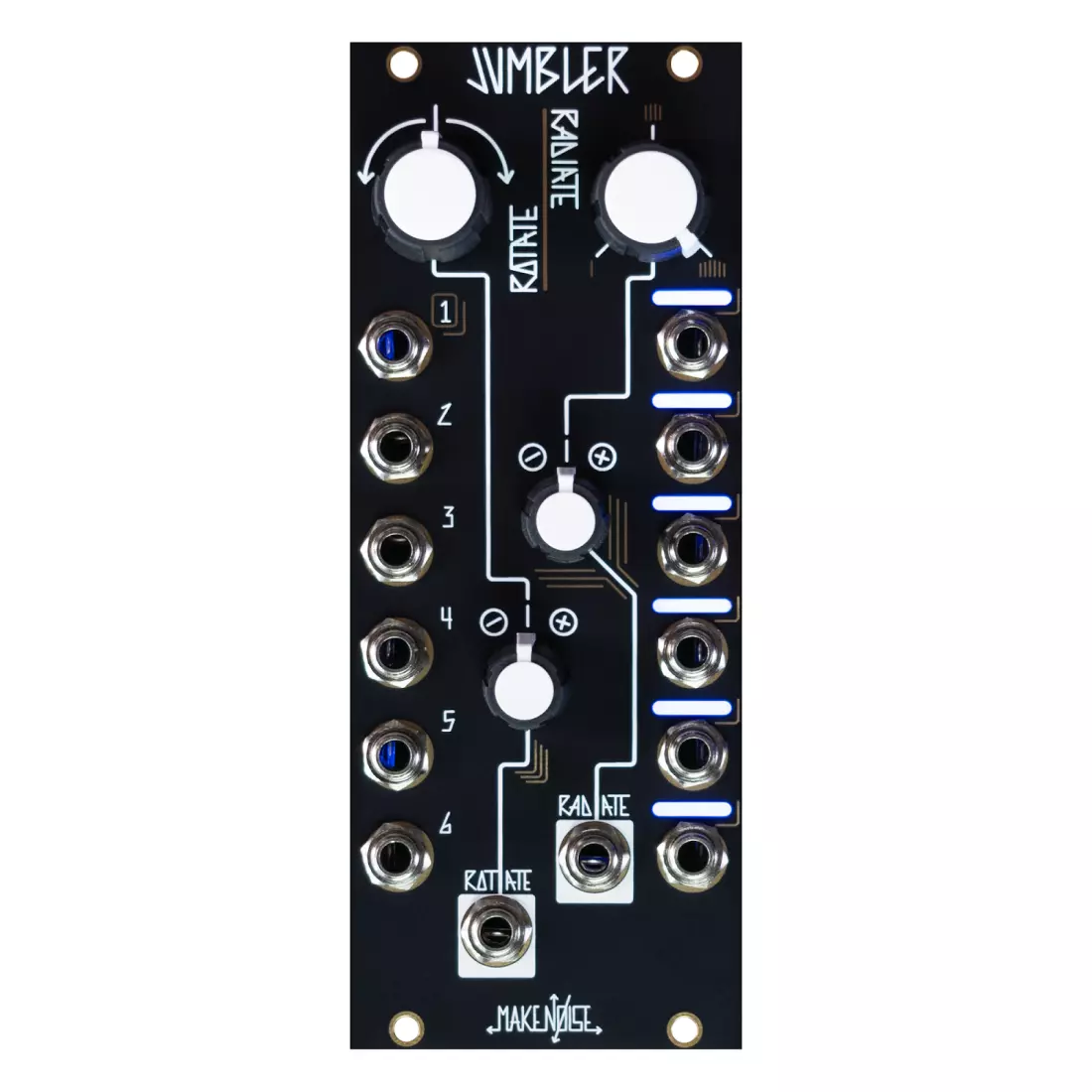

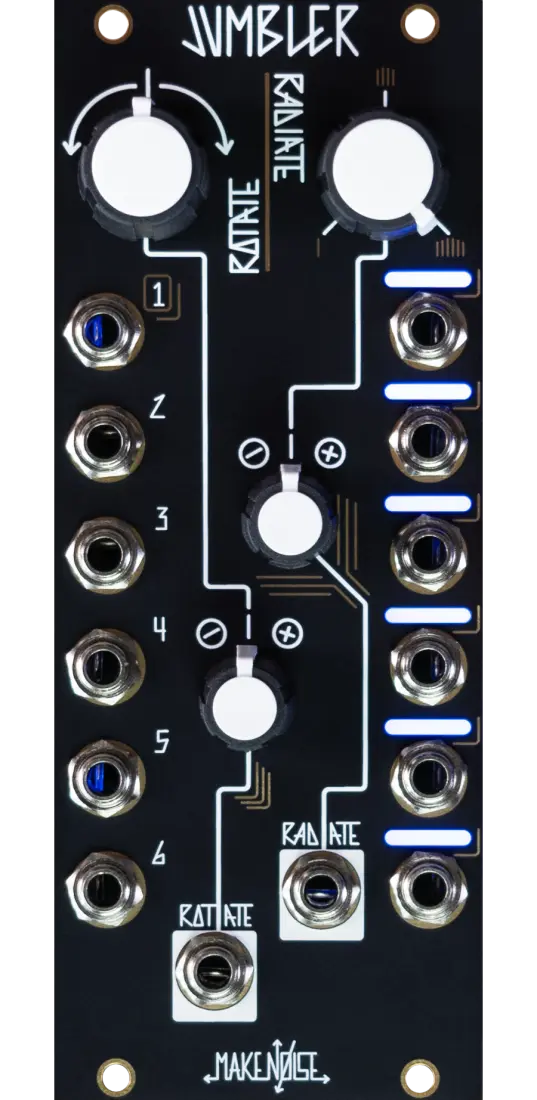

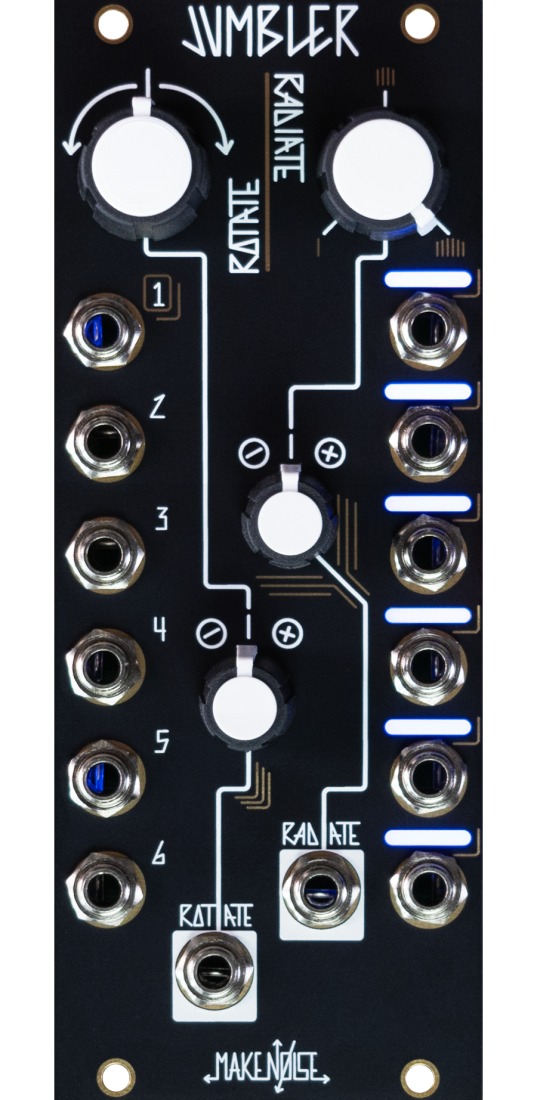

Make Noise Jumbler Signal Combiner Synthesizer Module

The Jumbler music synthesizer module is a six by six channel analog signal combiner and distributor for the New Universal Synthesizer System or any Eurorack modular synthesizer. Jumble is one of the N.U.S.S. concepts where the routings of a patch could be re-configured, or jumbled, instantly via voltage control to produce variations on a theme.

Jumbler gives you powerful two-parameter access to the rearrangement of both origins and destinations for up to six modular signals. One to six inputs are routed to one to six outputs, in an order determined by the Rotate control, and combination determined by the Radiate control. Unlike a simple switch module, Jumblers analog VCA-based design is specially geared for smooth transitions and hybrid signals.

Jumbler is a great module for hybrid control voltage mashing, complex waveform mixing, on-the-fly effects re-routing, gate and clock re-combinations and more. Some folks have said it is like patching a stack of 6 RxMx circuits.

Features

• Mix and Match up to six signals for up to six destinations
• Easy to use as a voltage controlled mixer or continuously crossfading switch
• Dynamically blend waveforms from a single or multiple oscillators
• Create hybrid rhythms with gate or clock sources
• Change up effects routings on the fly
• Create feedback and matrix-mixer patches
• All analog design featuring 36 VCAs

Specifications

Width: 10hp
Max Depth (incl. power cable): 43 mm
Power: 178mA@ +12V
92mA @ -12V
