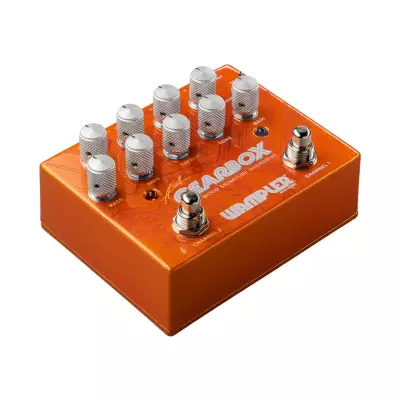

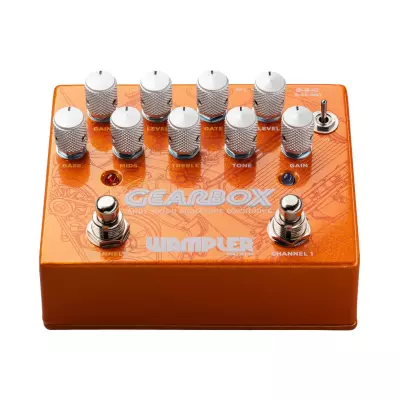

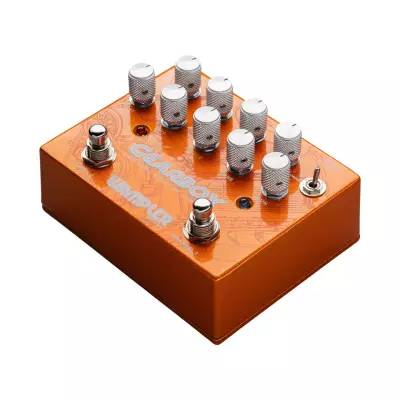

Wampler Pedals Andy Wood: Gearbox Overdrive Pedal
Additional Photos:
Channel 1 (based on the legendary Tumnus) is a perfect addition to any board setup and any playing style. Its versatility allows you to stack it with another pedal to help push or shape the total amount of gain, use it as a stand-alone overdrive, or as a slightly dirty boost to push the front end of your amp over the edge. Channel 2 (Based on the Pinnacle, one of Brian's most popular distortion pedals) delivers that legendary "Brown Sound". The three band EQ lets you dial in your soaring lead tone while the unique noise gate keeps the clarity on point. Stack both channels together for tonal bliss - warm, yet brutal grunt; delicate and controllable harmonic overtones; beautifully defined distortion that cuts through the mix.
The Order switch lets you select which pedal comes first in the signal chain. For ultimate control, connect both sets of inputs and outputs to an external switcher to mix or match in parallel or series. Andy named this pedal the Gearbox as it was designed to be the driving force behind your sound.
Specifications
- Built in the U.S.A.- High grade components picked for their superior sound and response
- Dual Independent drives based on two of Brian Wampler's Classic Circuits a Tweaked Tumnus on Channel 1 and a modified Pinnacle on Channel 2
- 9v power jack DC supply only, do not exceed 9v DC, battery Included
- Power draw 52mA at 9v

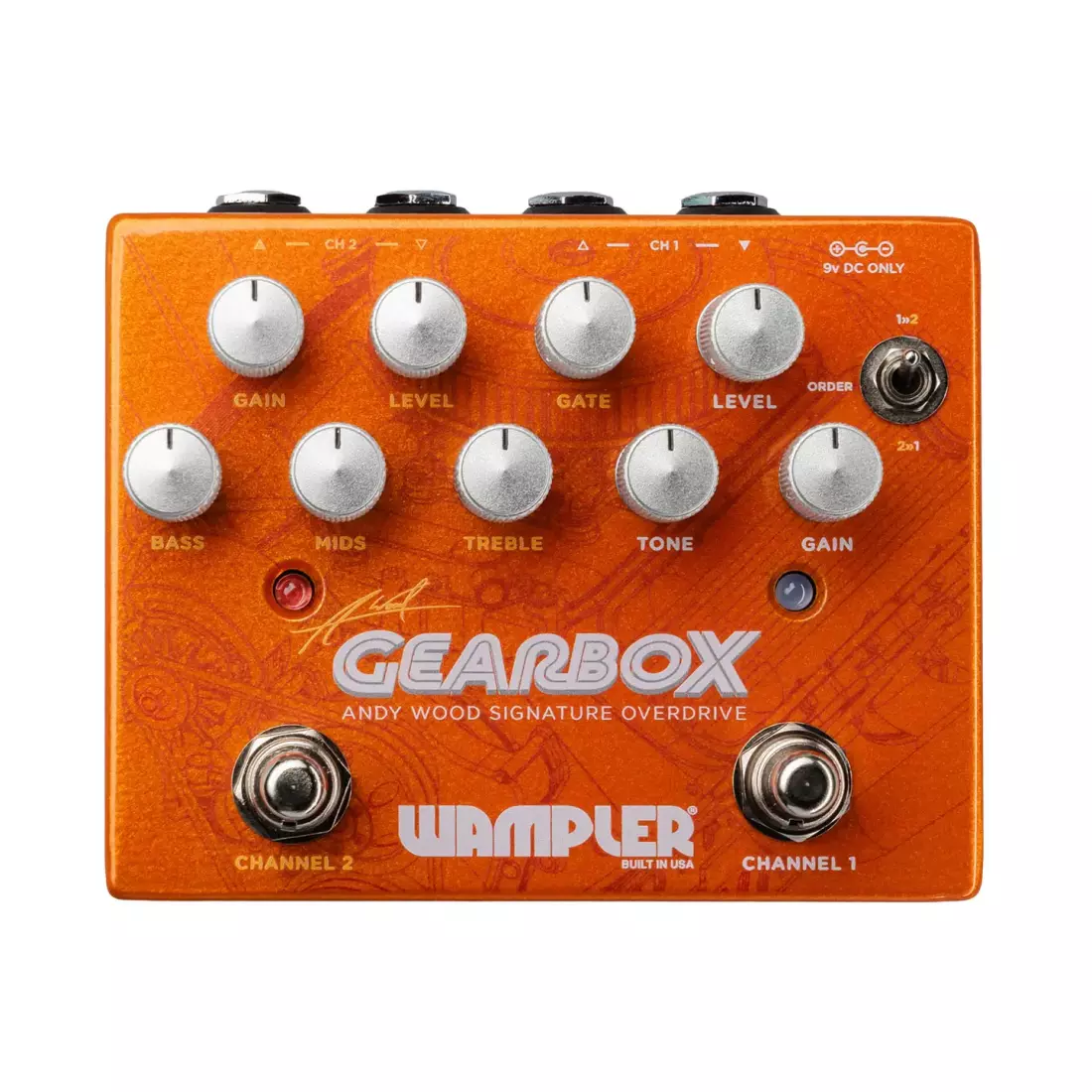

- Independent Volume and Gain controls for both channels, Tone Control for channel 1, Bass, Middle, Treble and Noise Gate controls on Channel 2

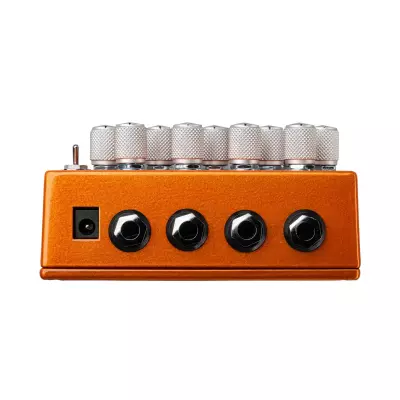

- Channel Order switch, Noise Gate on Channel 2, two pairs of Input and Output jacks
- 4.5 x 4.5 x 1.5" in size (114.3 x 114.3 x 38.1 mm) height excludes knobs and switches
- As used by Andy Wood live and in the studio
- Both channels can be used at the same time for ultimate "stacking" tones
- Relay True Bypass
- Includes Wampler's limited 5-year warranty
