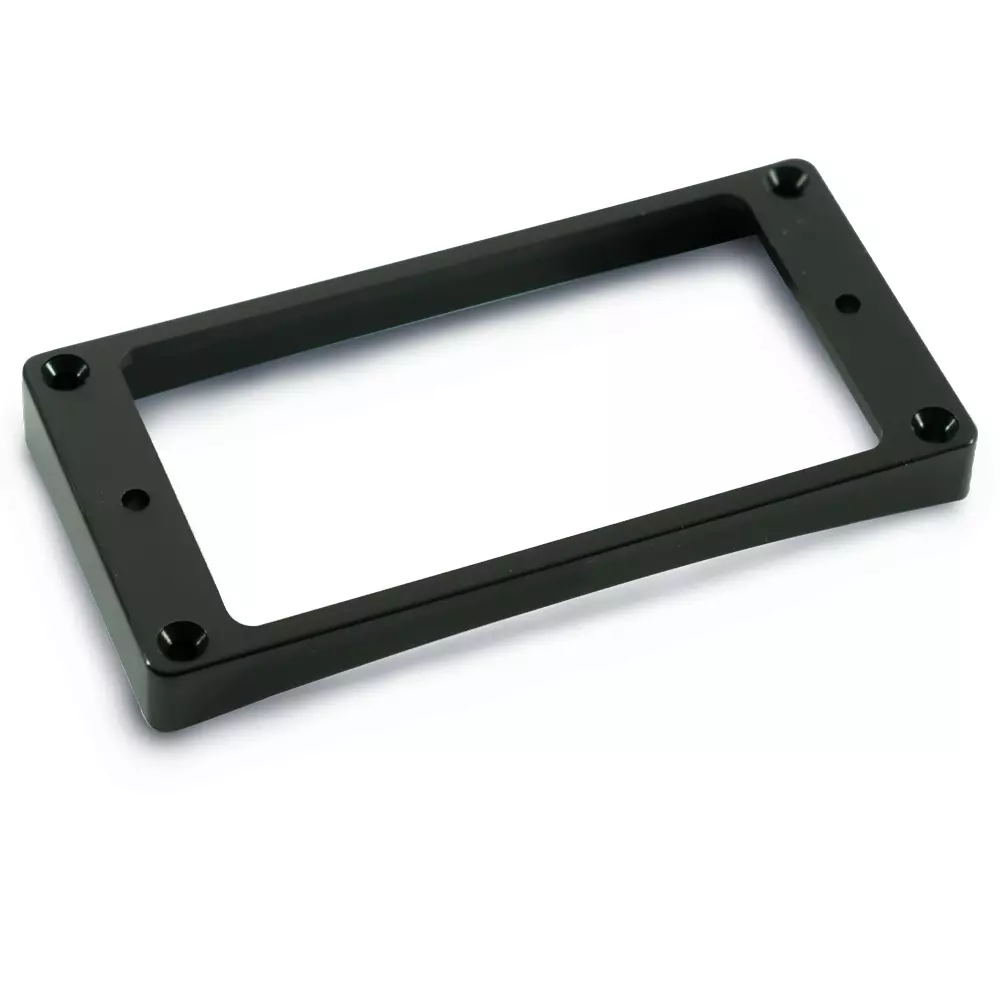

WD Music Plastic Vintage Archtop Humbucker Pickup Mounting Ring, High - Black
Tall plastic humbucker ring with curved bottom and flat top.
Bridge Humbucker
- Pickup cutout dimensions: 2.76 in length. X 1.5 in. width
- Outside Ring Dims: 3.53 in. length x 1.75 in. width
- Tall side height towards bridge: .424 in.
- Short side height towards neck: .361 in.
- Arch radius tall side: 22 in.
- Arch radius short side: 16 in.
- Mounting hole for pickup spacing: 3.08 in. ctr to ctr
- Mounting holes for ring length: 3.18 in. ctr to ctr
- Mounting holes for ring width: 1.45 in. ctr to ctr
Bridge Humbucker
- Pickup cutout dimensions: 2.76 in length. X 1.5 in. width
- Outside Ring Dims: 3.53 in. length x 1.75 in. width
- Tall side height towards bridge: .424 in.
- Short side height towards neck: .361 in.
- Arch radius tall side: 22 in.
- Arch radius short side: 16 in.
- Mounting hole for pickup spacing: 3.08 in. ctr to ctr
- Mounting holes for ring length: 3.18 in. ctr to ctr
- Mounting holes for ring width: 1.45 in. ctr to ctr
