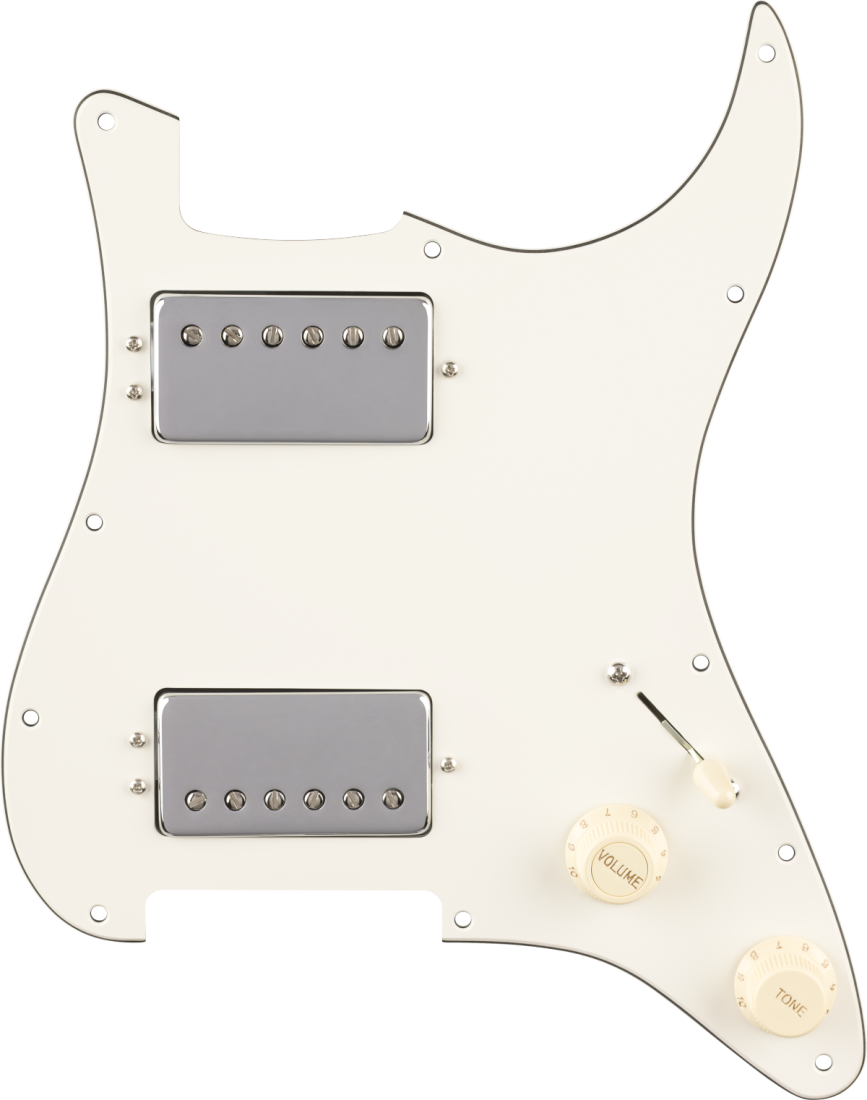

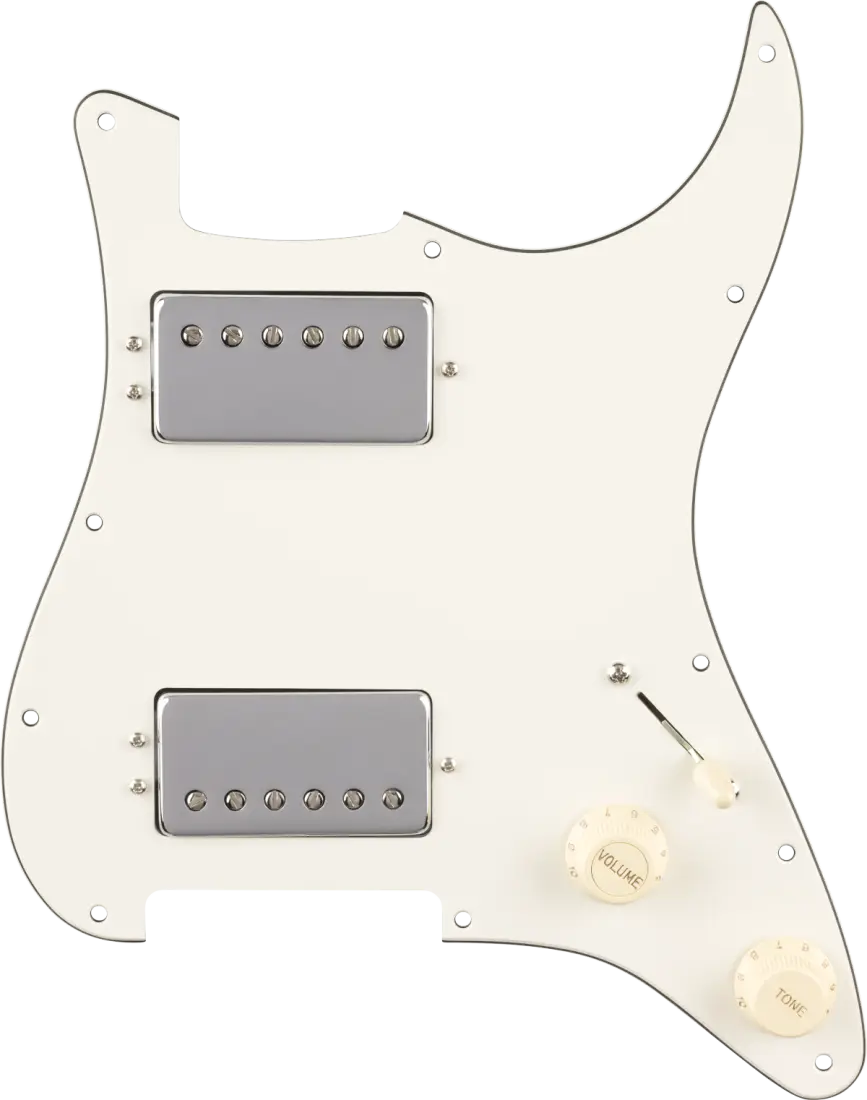

Fender 11 Hole Pre-Wired Strat Pickguard, Quadra Tap HH - Parchment

Transform the voice of your Stratocaster® with a genuine Fender Pre-Wired Pickguard Assembly. Crafted with premium components in the same factory as Fender's iconic guitars, this complete drop-in solution delivers authentic Fender® tone with hassle-free installation. No complicated wiring required - just remove your existing pickguard, connect two wires, mount the new assembly, and unlock a whole new voice for your guitar in minutes. It's the fastest way to upgrade your Strat® with Fender's time-tested electronics and craftsmanship.

Equipped with the Quadra Tap™ 1 and 2 Humbuckers, this loaded pickguard puts ten distinct voices at your fingertips - both hot and vintage voicings in either humbucking or split-coil modes. The volume knob's S-1 switch selects between each voicing while the 5-way selector allows each pickup to be split between humbucker and single coil modes. In addition, a treble bleed circuit maintains your highs at any volume.

Powered by an alnico 2 bar magnet, the passive Quadra Tap™ Humbucker is a tone-shaping powerhouse. Experience four distinct voices that span from vintage-inspired warmth to scorching hot output in both single coil and humbucker settings.

Features

• Quadra Tap™ 2 Humbucker in the bridge position
• Quadra Tap™ 1 Humbucker in the neck position
• S-1™ switch on volume knob selects between the vintage and modern voicings of both pickups
• 5-way selector allows each pickup to be split between humbucker and single coil mode
• All passive design that is noise free
• The fastest way to upgrade your Strat® with Fender's time-tested electronics and craftsmanship

Specifications

Hardware
Pickguard: 3-Ply Parchment
Pickguard Ply: 3-Ply
Pickup Covers: Chrome
Control Knobs: Aged White Soft Touch Knobs
Switch Tip: Aged White
Hardware Finish: Chrome
Mounting Type: 11-Hole Modern

Electronics
Bridge Pickup: Quadra Tap™ 2 Humbucker
Neck Pickup: Quadra Tap™ 1 Humbucker
Pickup Configuration: HH
Lead Wire: Vinyl-covered
Magnet Type: Alnico 2
Magnet Wire: Enamel-coated
Shielded: Yes
Bobbin Material: Plastic
Controls: Master Volume with S-1™ Switch, Master Tone
Switching: 5-Position Blade: 1. Bridge Full Humbucker, Position 2. Bridge Inner Coil, Position 3. Bridge Inner and Neck Outer Coils in Parallel, Position 4. Neck Outer Coil, Position 5. Neck Full Humbucker
Power Requirements: Passive
Potentiometers: Master Volume: S-1™ 500K, Master Tone: 500K
