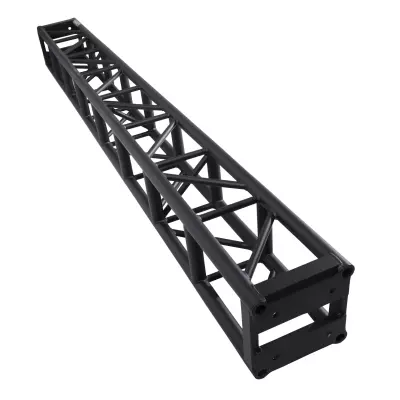

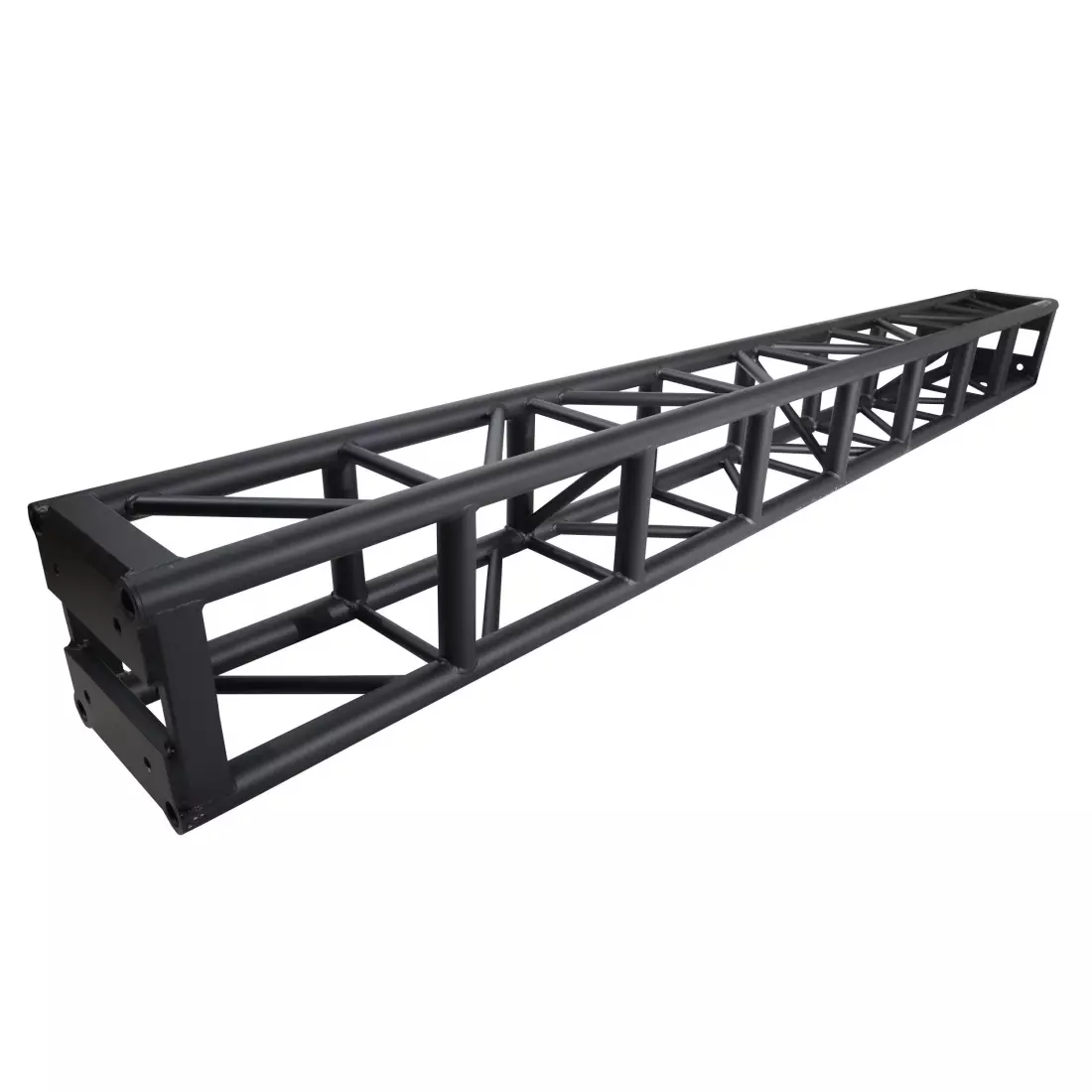

ProX BoltX Black Bolted 12 Inch Professional Box Truss Segment - 10 Foot

ProX XT-BT1210BLK BoltX™ Professional Box Truss is designed and engineered for many applications like stage lighting, concerts, Ninja Obstacle Course type construction, and similar uses. Setting ProX apart from other box truss manufacturers, BoltX™ has an innovative end plate designed and manufactured with heavy-duty aluminum material, welded on both sides, and exclusive circular rings at each corner of the truss to reduce or eliminate damage to the main chord ends. ProX's outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups.

Compatible with most other 12" Professional Box Truss Manufacturers utilizing a 6.75" bolt center pattern.

Features

• 12" x 12" x 12" Professional 6 Way Block W/Bolt Connection.
• Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
• Load Tested & Inspected During Manufacturing and Quality Control
• Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
• Compatible with most other 12" Professional Box Truss Manufacturers
• Outer Tube Diameter of 2", Wall Thickness 3mm (1/8"), Diagonal 1", Wall of 3mm (1/8"),
