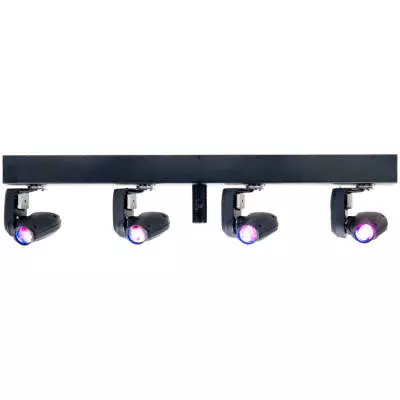

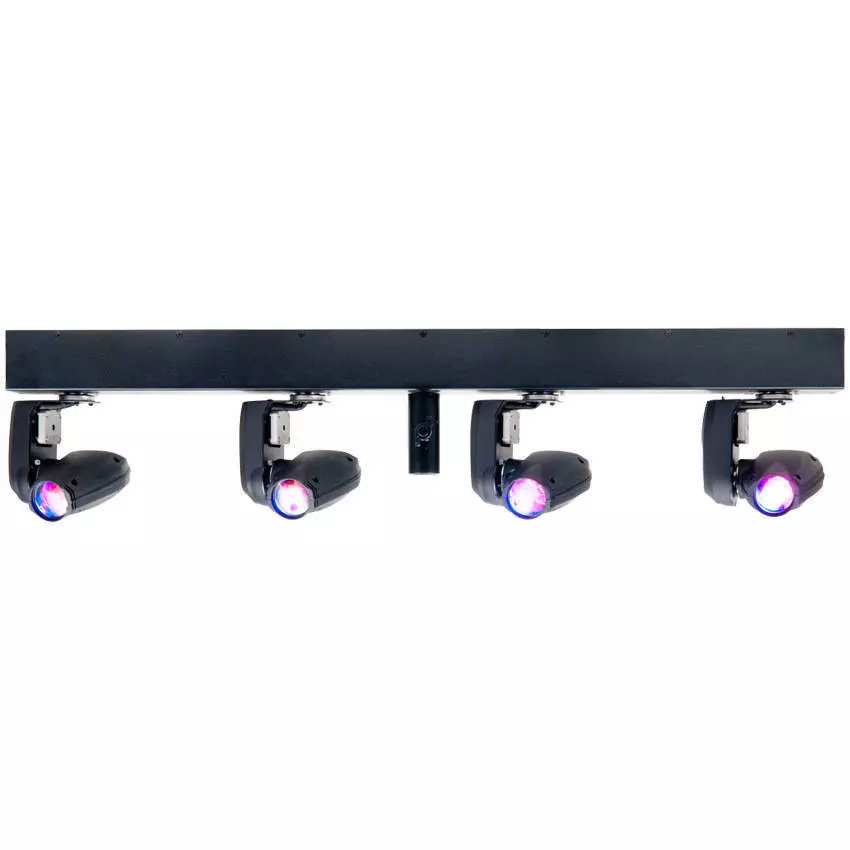

American DJ Pinspot Bar 4 x 10W CREE 4-in-1 RGBW LED
Additional Photos:
The Event Bar Q4 is a versatile fixture that may be used to spot tables, dcor and retail environments, or used as a special effect light at night clubs or other parties.
The Event Bar Q4s base has built-in DMX-512 In/Out, IEC power In/Out connectors, a 4-Button DMX LED display, built-in microphone for sound activation and 1/4-inch input for ADJ easy-to-use UC3 controller (sold separately).
SPECIFICATIONS
• Four Head X-Y Bar Pinspot system with 4x 10W CREE Quad Color RGBW (4-IN-1) LEDs
• Each Pinspots colors and movements may be individual controlled via DMX
• 3 DMX Channel Modes: 1, 12, or 14 channels
(Rev. 2/14) 4 DMX Channel Modes: 2, 32, 33 or 37 channels
• 4 operational modes: Auto (Show Run), Sound Active, RGBW Dimmer and DMX-512 Mode
• Flicker Free
• 4-Button DMX LCD Display
• 12 Built-in Shows
• Electronic Dimming: 0 - 100%
• Full Dimming /Strobing on each Pinspot head
• Beam angle: 5-degree
• Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 6 Event Bar Q4s @ 120V, up to 10 Event Bar Q4s @ 230V)
• Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Light Source: 4 x 10W Quad (RGBW: 4-IN-1) LED
• Omega bracket included so the bar may be attached to a clamp for truss mounting
• Built-in mount for a lighting stand (stand sold separately)
• Safety loop on rear
• Power Consumption: 56W
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Dimensions (LxWxH): 41 x 4.25 x 10.75 / 1040 x 103 x 270mm
• Weight: 29 lbs. / 13 kg.
