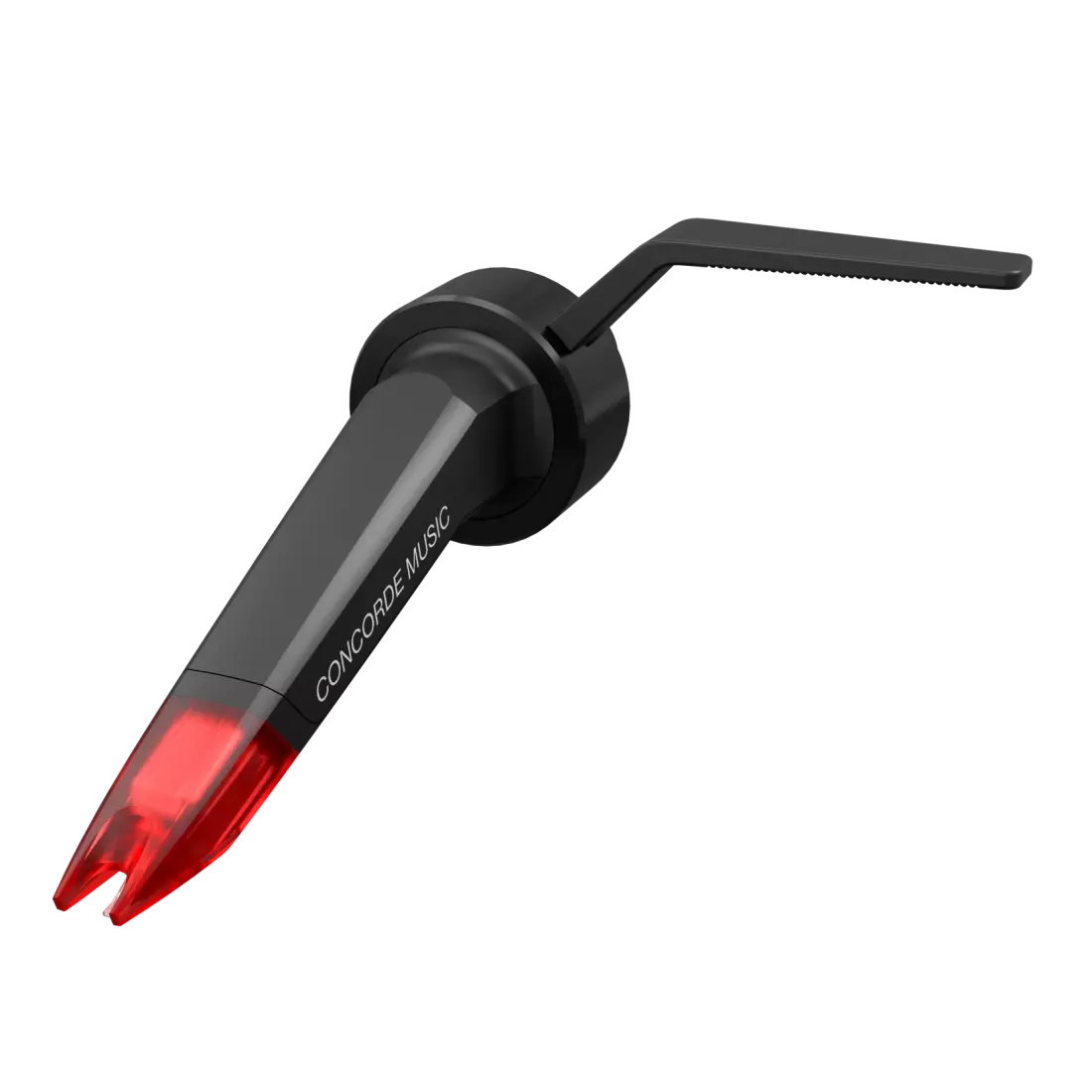

Ortofon Concorde Music Red Moving Magnet Cartridge

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever.

Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Specifications

Channel balance at 1 kHz: 1.5 dB
Output voltage at 1 kHz, 5cm/sec: 6mV
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz - 20 kHz: +3 / -1 dB
Tracking ability at 315 Hz: 80 um
Compliance, dynamic, lateral: 15 um/mN
Cantilever material: Aluminium
Stylus type: Elliptical diamond
Stylus tip radius: r/R 8/18 um
Coil system: Quad-coils with split pole pins
Tracking force, recommended: 1.8 g
Tracking angle: 20°
Cartridge colour: Black/Red
Cartridge weight: 18 g
Recommended load resistance: 47 kΩ
Recommended load capacitance: 150-300 pF
