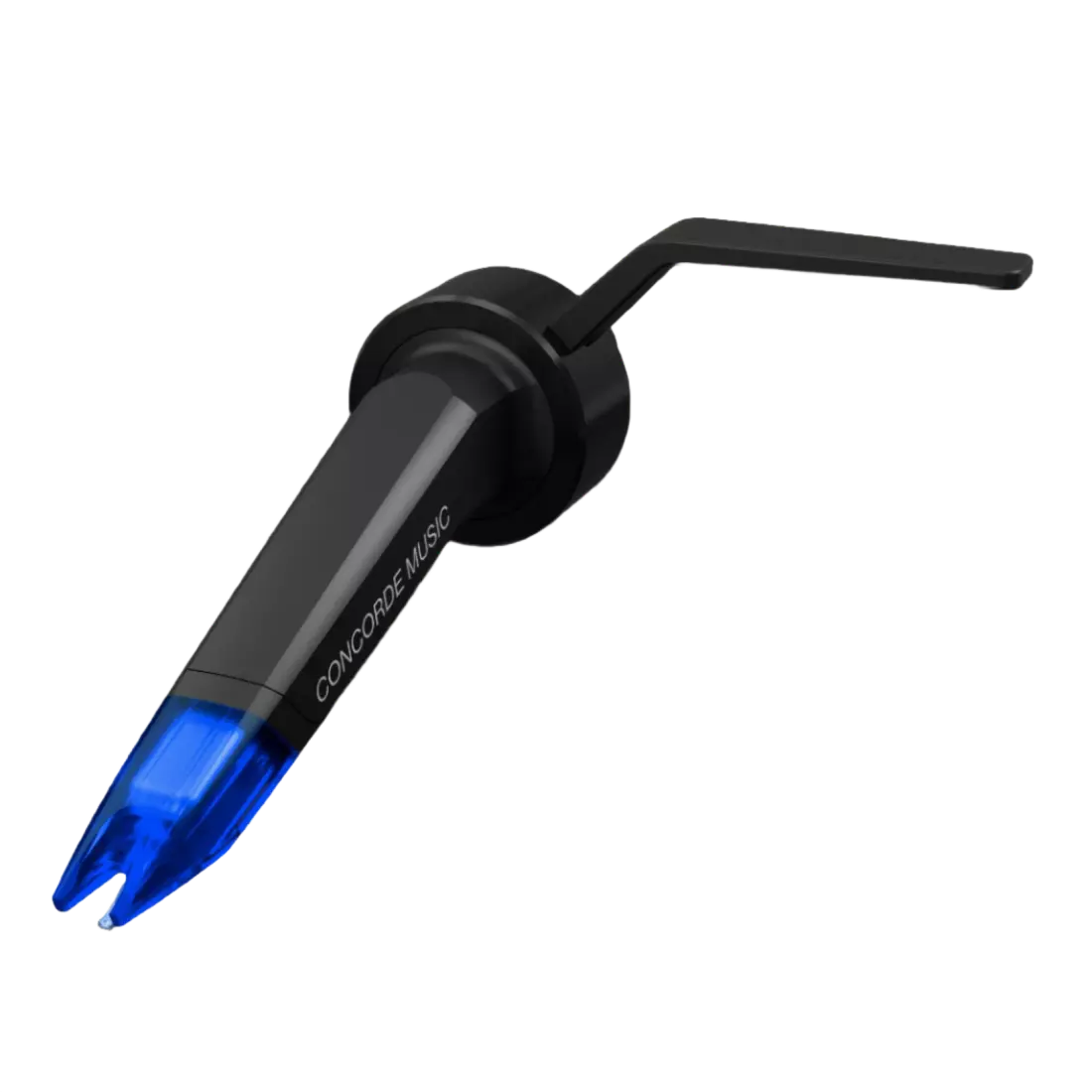

Ortofon Concorde Music Blue Moving Magnet Cartridge

Experience unveiled and clear sound reproduction with the Concorde Music Blue, featuring a Nude Elliptical stylus on an Aluminum cantilever.

Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music represents a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Specifications

Channel balance at 1 kHz: 1.5 dB
Output voltage at 1 kHz, 5cm/sec: 6mV
Channel separation at 1 kHz: 25 dB
Frequency response 20 Hz - 20 kHz: +2 / -1 dB
Tracking ability at 315 Hz: 80 um
Compliance, dynamic, lateral: 15 um/mN
Cantilever material: Aluminium
Stylus type: Nude Elliptical diamond
Stylus tip radius: r/R 8/18 um
Coil system: Quad-coils with split pole pins
Tracking force, recommended: 1.8 g
Tracking angle: 20°
Cartridge colour: Black/Blue
Cartridge weight: 18 g
Recommended load resistance: 47 kΩ
Recommended load capacitance: 150-300 pF
