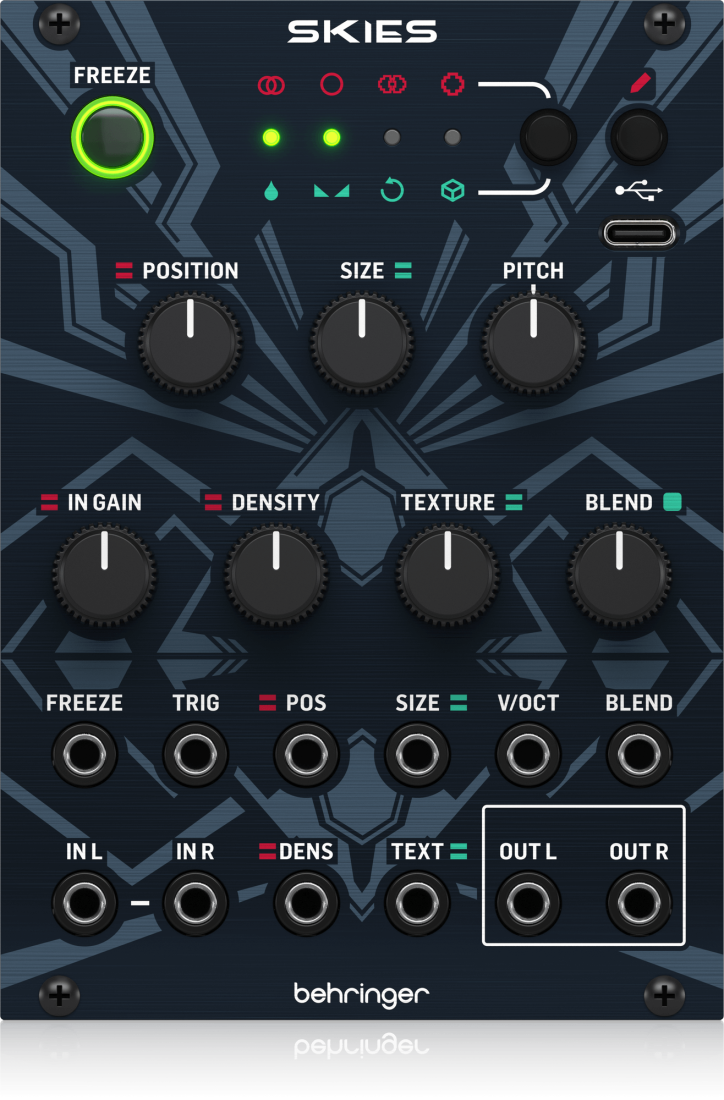

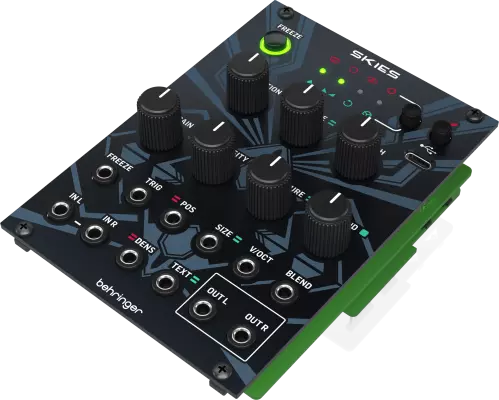

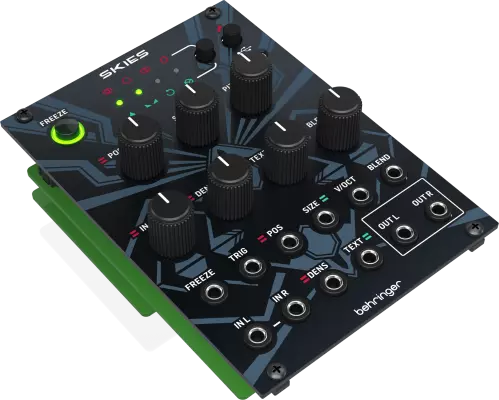

Behringer Granular Audio Processor for Euroracks

Unleash new dimensions of sound with the Behringer SKIES granular synthesis module for Eurorack. Whether you're sculpting dense, evolving textures or crafting glitchy, fragmented rhythms, SKIES is your gateway to sonic exploration. With its intuitive controls and powerful processing capabilities, SKIES invites you to break free from traditional synthesis and dive headfirst into a world of shimmering ambience and chaotic soundscapes.

SKIES gives you hands-on control over core parameters like Position, Size, Pitch, Density, and Texture, letting you shape every detail of your grains with precision. The Blend control provides access to stereo spread, feedback, and reverb, ensuring you can create everything from subtle stereo shimmer to cavernous soundscapes. Engage the Freeze function to capture a sonic moment in time, perfect for building loops, drones, or ambient pads on the fly. With extensive CV input options, SKIES thrives in a modular environment where dynamic modulation can take your sound even further.

Specifications

USB
USB: Type C Socket

Inputs
Position CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
Size CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
V/Oct: 3.5 mm TS jack, 0 V to + 8 V range, impedance 50 kΩ
Blend CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
Density CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
Texture CV: 3.5 mm TS jack, -8 V to + 8 V range, impedance 50 kΩ
Freeze: 3.5 mm TS jack, 5 V peak to peak, impedance 50 kΩ
Trigger: 3.5 mm TS jack, 5 V peak to peak, impedance 50 kΩ
Audio Inputs left & right: 2 x 3.5 mm TS jack, AC coupled, impedance 22 kΩ

Outputs
Audio Outputs left & right: 2 x 3.5 mm TS jack, AC coupled, impedance 1 kΩ

Controls
Position
Size
Pitch
Input Gain
Density
Texture
Frequency
Blend

Buttons
Freeze
Parameter
Save/Load

LEDs: 4 x multi function
Power Consumption: 120 mA (+12 V) / 10 mA (-12 V)
