SPL

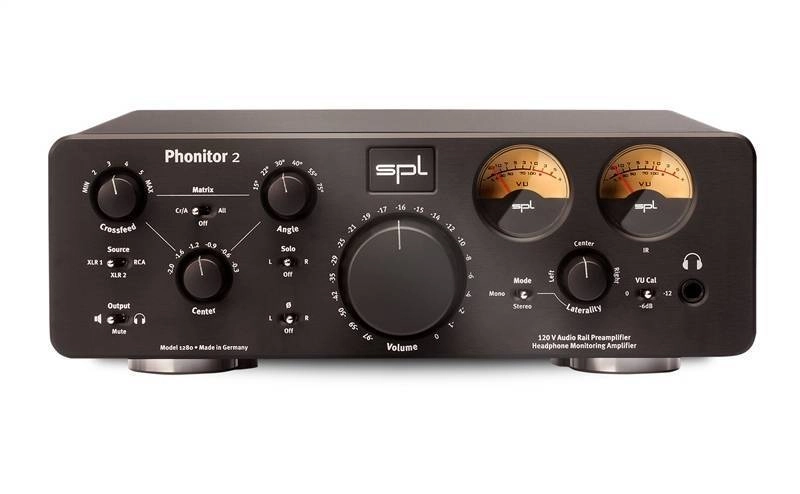

Headphone Monitoring Amplifier - Black

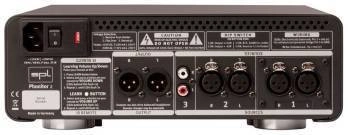

Additional Photos:
NEW in Phonitor 2
• Preamplifier/Monitor Controller functionality
• Suited for all headphones and impedances
• Volume remotely controllable
Special Features
• The Reference ─ the Phonitor2 sets new technical and sound standards.
• Dual-channel 120 Volt amp for headphones and active loudspeakers or power amps
• For dynamic and balanced headphones
• Optimallyy suited for low-impedance headphones starting from 10 Ohm (40 Ohm for balanced headphones)
• Remote volume control with motor potentiometer
• High-resolution laterality correction compensates right/left hearing differences
• Switchable level adjustment (consumer to professional level, 1:1, +6dB, +12 dB)
Applications
• Stereo preamplification and headphone amplification for three sources
• High-quality music playback at home
• Central monitoring unit with phase reverse L/R , solo L/R, mono switch functions
• Laterality control to compensate hearing imbalances
• Headphone amplifier for all headphone systems and impedances (from 10Ω)
• Loudspeaker simulation with headphones
• Monitoring alternative in studios and mobile units
• Adjustment of headphone playback to match familiar monitor speakers
• Mobile reproduction of usual monitoring conditions
SPECIFICATIONS
Inputs
• XLR connectors, electronically balanced
• Impedance: bal. ca. 20 kΩ, unbal. ca. 10 kΩ
• Max. Input Level: +32,5 dBu
Outputs
• Monitor/Line Outputs: XLR connectors, electronically balanced
• Frequency Range: 4 Hz to 480 kHz ( -3 dB)
• CMR: -82 dBu (at 1 kHz, 0dBu input level and unity gain)
• Crosstalk at 1 kHz: -106 dB
• THD&N at 1 kHz: 0,00085 % (at 0dBu input level and unity gain)
• Noise: Unweighted -101,87 dB; A-weighted -104,76 dB; CCIR: -96,1 dB
• Dynamic Range: 134,37 dB
Headphone Output
• 6.3-mm TRS connector
• Pin wiring: Tip = Left, Ring = Right, Sleeve = GND
• Impedance: 0,18 Ω
• Attenuation Factor: 180 @ 40Ohm
• Frequency Range: 4 Hz to 480 kHz ( -3 dB)
• CMR: -106 dBu (at 1 kHz, 0dBu input level and unity gain)
• Crosstalk at 1 kHz: -106 dB
• THD&N at 1 kHz: 0,00091 % (at 0dBu input level and unity gain)
• Noise: Unweighted -101,12 dBu; A-weighted - 103,98 dBu; CCIR -95,02 dBuDynamic Range:133,62 dB
Power Amplifier
• Max. Output Power:
• 65m W (+20 dBm) at 1 kHz and 600 Ω connected impedance
• 560 mW (+20 dBm) at 1 kHz and 40 Ω connected impedance
Power Supply
• Voltages: 230 V AC, 50 Hz / 120 V AC, 60 Hz
• Power Consumption: max 23,7 VA
• Fuses: 100-120 V AC: T 1 A / 200-240 V AC: T 630 mA
Measurement & Weight
• Height x Width x Depth: 99 x 277 x 305 mm / 3.9 x 10.9 x 12 in
• Weight: 4,3 kg / 9.5 lbs
