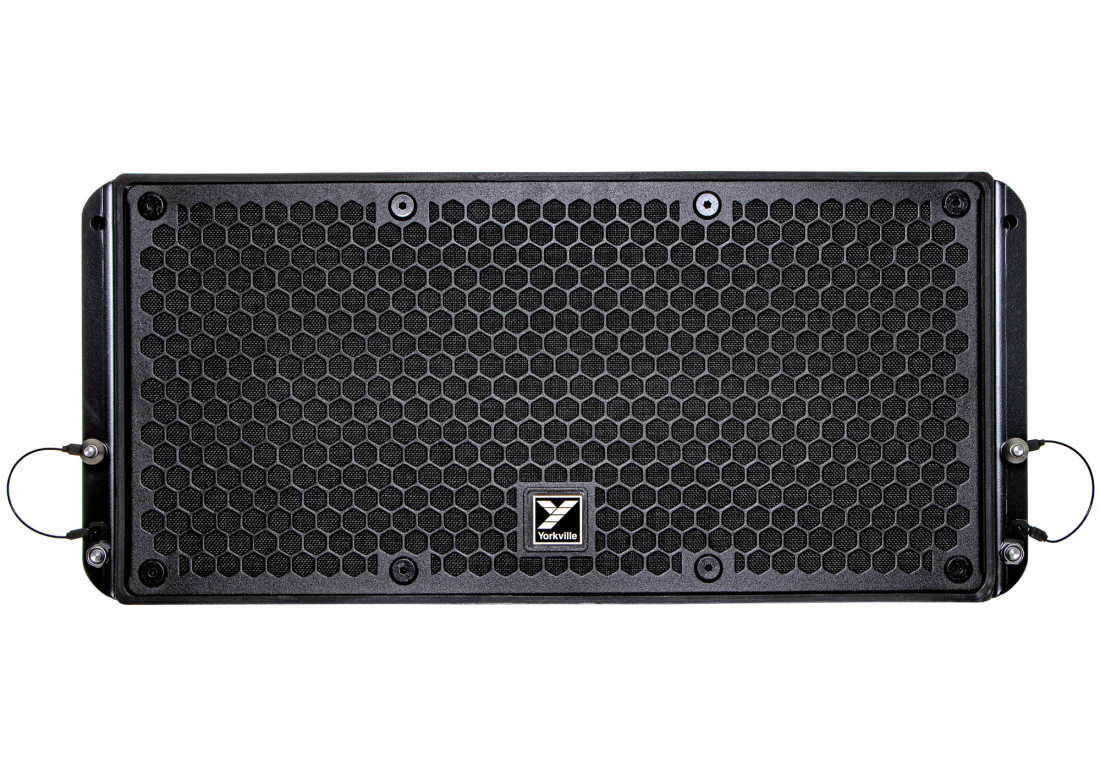

Yorkville Sound 600W 2x6 Inch + 1x1 Inch Powered Line Array
Additional Photos:
Product Videos :
The new PSA26 offers 850 watts of peak power, neodymium drivers, and integrated rigging hardware.
It features two important technologies: Tom Danley's patented Paraline Lens and Synergy Horn. The unique geometry of the Paraline Lens produces a precisely shaped wavefront that matches the horns physical coverage pattern. It provides a continuous horn throat from cabinet to cabinet in the vertical plane, virtually eliminating comb filtering.
The Paraline Lens is fed by a high-output compression driver, and the Synergy Horn configuration seamlessly couples the output of the Paraline Lens with the low-frequency drivers. The horn utilizes the entire front area of the cabinet, maximizing efficiency and directivity.
Simple, intuitive controls let you quickly optimize the speaker response for your application. The PSA26 features a switchable high-pass filter for use with subwoofers, high-frequency boost to increase clarity, Nearfield mode to attenuate the horn when aimed at the audience closest to the stage, and compensation to counteract bass buildup as multiple enclosures are used together in a single vertical array.
The PSA26 also features onboard limiting, powerCON connectors for power input and pass-through, a dual-angle 35 mm (1 3/8) stand adapter for use with the Yorkville SW-TUBEHD pole, and flush-mounted hardware to protect quick pins and rigging links.
Optional accessories include the PSA26BUMPER and PSA26DOLLY.
Features
• 850 W Peak Power (600 W Program)
• 2x 6 Neodymium LF Drivers
• 1x 1 Exit Neodymium HF Driver
• Incorporates Tom Danleys Patented Paraline Lens and Synergy Horn Technologies
• XLR Input and Output
• Locking powerCON Connectors
• IP54 Rated for Outdoor Use
• Made in Canada
Specifications
- System Type: Powered Loudspeaker
- Power Rating: 850 W Peak (600 W Program)
- Max SPL: 134 dB
- Frequency Response: 75 Hz: 20 kHz
- Dispersion (H x V): 120 x 10
- HF Driver(s): 1x 1 Exit Neodymium
- LF Driver(s): 2x 6 Neodymium
- Power Requirements: 120 VAC
- In / Out Connections: powerCON Locking Connectors
- Inputs: 1x XLR
- Outputs: 1x XLR
- Controls: Gain, High-Pass Filter (w/SUB), HF Boost, Nearfield, Array Size
- LED Indicators: Activity, Limit, Clip
- Bar Handles: 2 (1 each Side)
- Flying Hardware: Skeletal Rigging System
- Pole Mount Adapter: 1 (Dual Angle)
- Enclosure Materials: Polypropylene
- Grille: Powder-Coated Perforated Steel
- Other Features: IP54 Rated for Outdoor Use
- Dimensions (DWH): 18.3" x 22.4" x 10.1" (46.5 cm x 56.9 cm x 25.7 cm)
- Weight: 40 lbs / 18.1 kg
Media
Description: Yorkville Paraline Series Video
Q & A
Reviews
Rental rates
This product is normally available for rental. Please contact your preferred location for further information.
1 Day from $35.00
1 Week $70.00
1 Month $140.00
