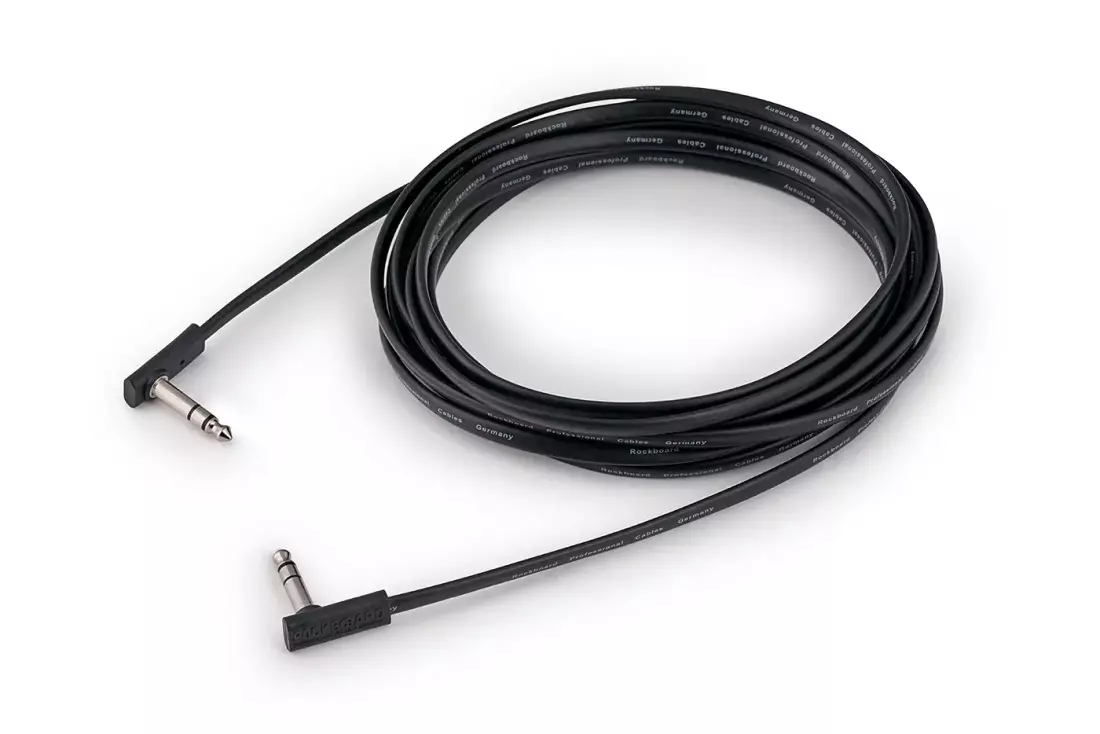

RockBoard by Warwick Flat TRS Cable - 600 cm

The RockBoard Flat TRS cable is designed to be extra flat and compact to make the most of the available space on the pedalboard. The slim and angled 6.3 mm jack plugs and the flat conductor cable effectively reduce twisting. With six different lengths available, almost any application can be easily realized. This ensures accurate and clean wiring on the pedalboard, with pristine signal quality.

Get premium sound at a reasonable price with RockBoard cables.

Features

• Flat TRS cable with a rectangular profile
• For connecting foot controllers and expression pedals

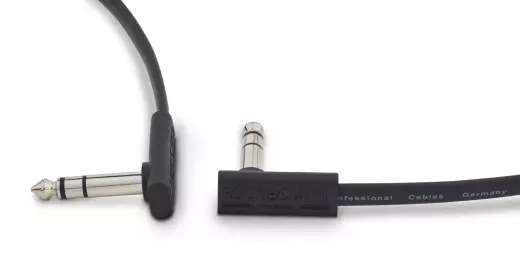

• Compact and super flat angled plugs
• PE (polyethylene) signal insulation
• Outer PVC insulation
• Angled 6.3 mm TRS audio plugs
• Black

Specifications

Length: 600 cm (236 7/32")
Operating temperature: -15° C to +70° C (5° F to 158° F)
Cable outer dimensions (W x H): 7 x 3 mm (9/32" x 1/8")
Plugs outer dimensions (W x H): 12.5 x 7.5 mm (31/64" x 19/64")
Capacity: less than 10 pF/decimeter
Conductor resistance: less than 10 mΩ/decimeter
