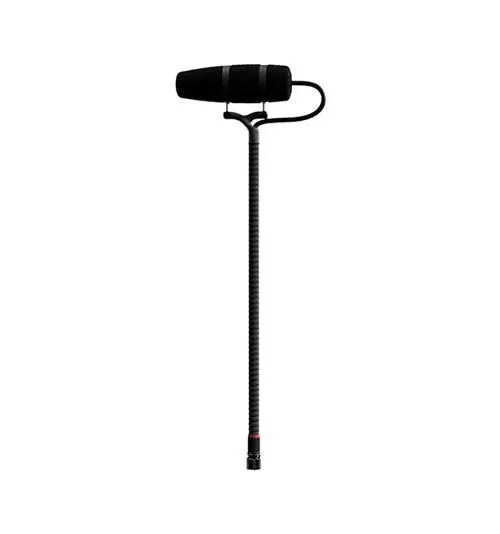

DPA Microphones CORE+ 4099 Microphone w/Clip for Violin
This mic delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock® and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument.
• High SPL handling
• Wide dynamic range
• Supercardioid pick up pattern
• Superior gain before feedback
• MicroLock® connector
• IP58 certified

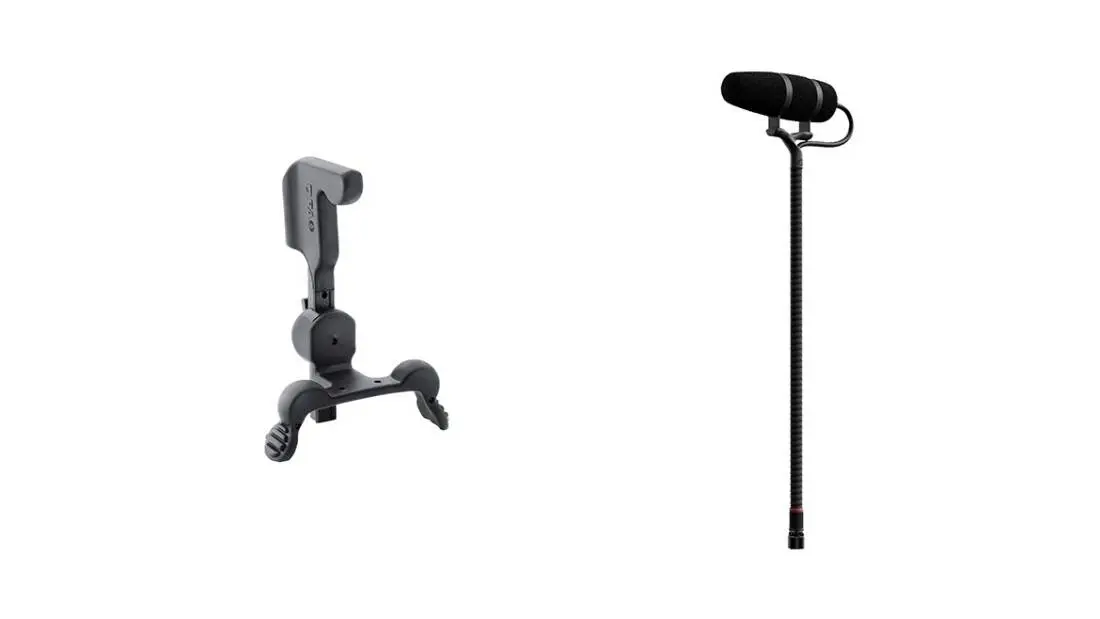

• Advanced, flexible clip program
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz - 20 kHz
Effective frequency range +/-2 dB, at 20 cm (7.9 in): 80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
Sensitivity, nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
Distortion, THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak
Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
Dynamic range: Typ. 118 dB
Max. SPL, THD 10%: 145 dB SPL peak
Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
Cable drive capability: Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
Output balance principle: Signal balanced with DAD9099 or DAD9001 XLR Adapter
Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter
With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
Connector: MicroLock
Microphone diameter: 5.7 mm (0.22 in)
Microphone length: 50 mm (1.97 in)
Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Gooseneck length: 140 mm (5.5 in)
Sensitivity selection tolerance (at 1 kHz): +/- 1 dB
Features
• CORE+ technology• High SPL handling
• Wide dynamic range
• Supercardioid pick up pattern
• Superior gain before feedback
• MicroLock® connector
• IP58 certified
• Advanced, flexible clip program
Specifications
Directional pattern: SupercardioidPrinciple of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz - 20 kHz
Effective frequency range +/-2 dB, at 20 cm (7.9 in): 80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
Sensitivity, nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
Distortion, THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak
Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
Dynamic range: Typ. 118 dB
Max. SPL, THD 10%: 145 dB SPL peak
Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
Cable drive capability: Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
Output balance principle: Signal balanced with DAD9099 or DAD9001 XLR Adapter
Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter
With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
Connector: MicroLock
Microphone diameter: 5.7 mm (0.22 in)
Microphone length: 50 mm (1.97 in)
Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Gooseneck length: 140 mm (5.5 in)
Sensitivity selection tolerance (at 1 kHz): +/- 1 dB
